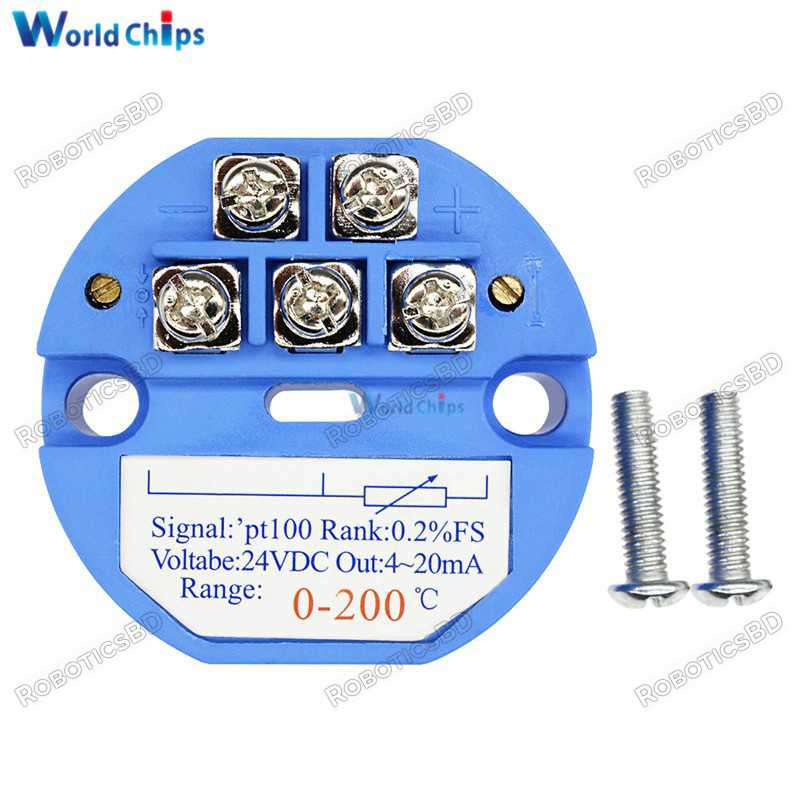

PT100 Temperature Transmitter 0-200 Celsius Range 4-20MA DC 24V

RBD-1739

  • PT100 Temperature Transmitter
  • 0-200 Celsius
  • Range 4-20MA
  • DC 24V
BDT 1,990.00
BDT 1,990.00 BDT 1,990.00 BDT 1,990.00 BDT 1,990.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,990.00 Tax excluded
BDT 1,990.00 Tax included
BDT 0.00 Tax
BDT 1,990.00 Tax excluded
BDT 0.00 Tax
BDT 1,990.00 Tax included
Quantity
In-Stock
36 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Through the transmitter, resistance signal of the thermal resistance can be converted into 4-20mA current signal through the transmitter. Perfect for two wire solution using a standard RTD sensor package. Easy to use with Controller and PLC. RoboticsBD

The famously known “hockey puck transmitter” got its name from its form factor. These are used for basic applications and are the most common transmitter. They are also well suited for OEM applications and are low cost. These transmitters are suitable to be put inside the heads of temperature probes. They have two mounting holes on each side of the device. They are designed to be small and to limit the amount of installation hardware.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Correction Potentiometer Debugging
  2. High Quality Terminal Block
  3. PA66 Flame Retardant Shell

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Sensor PT100
Power Supply 24V DC
Output Current 4-20mA
Temperature Range 0℃ to 200℃
Measurement Precision ±0.2%F.S
Total Size 45 x 20mm / 1." x 0.9"(D*T)
Material Plastic, Metal; Color Blue
Shipment Weight 0.025 kg
Shipment Dimensions 4.5 × 4.5 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Package Includes:

1 x PT100 Temperature Transmitter 0-200 Celsius Range 4-20MA DC 24V

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1739
36 Items

Specific References

EAN13
1739
