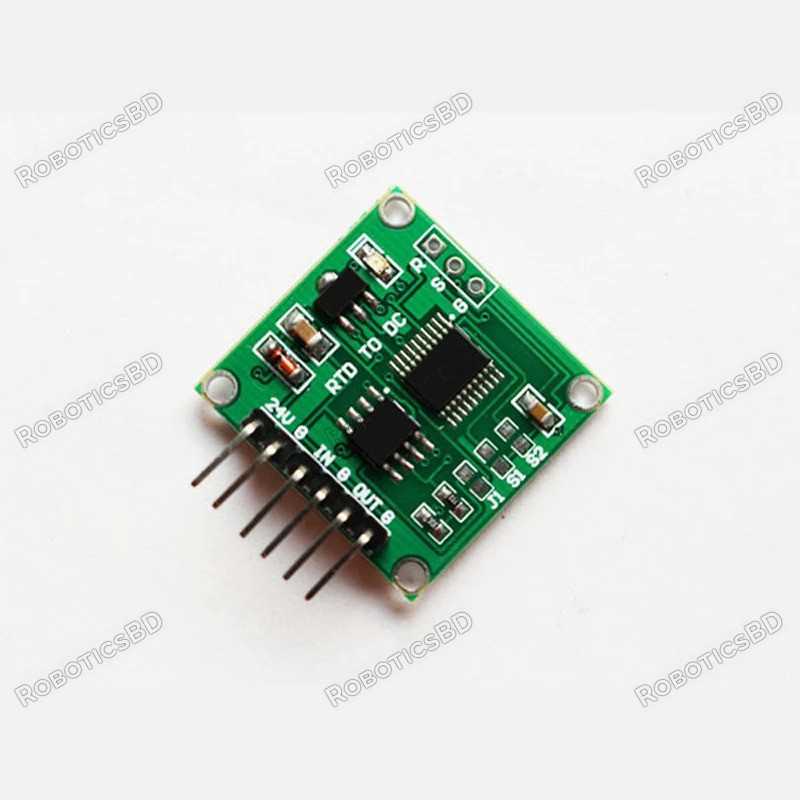

PT100 to 0-5V Converter PCB-mounted PT100 to 0-10V Conversion Module RTD PT100 to Voltage Signal Conditioner Robotics Bangladesh
  • PT100 to 0-5V Converter PCB-mounted PT100 to 0-10V Conversion Module RTD PT100 to Voltage Signal Conditioner Robotics Bangladesh

PT100 to 0-5V Converter PCB-mounted PT100 to 0-10V Conversion Module RTD PT100 to Voltage Signal Conditioner

RBD-1834

  • PT100 to 0-5V Converter
  • Voltage Signal Conditioner
  • PCB-mounted
BDT 1,790.00
BDT 1,790.00 BDT 1,790.00 BDT 1,790.00 BDT 1,790.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,790.00 Tax excluded
BDT 1,790.00 Tax included
BDT 0.00 Tax
BDT 1,790.00 Tax excluded
BDT 0.00 Tax
BDT 1,790.00 Tax included
Quantity
In-Stock
10 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

PT100 to 0-5V Converter PCB-mounted PT100 to 0-10V Conversion Module.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Application:

  1. RTD PT100 sensor signal transmission.
  2. PT100 signal monitoring.
  3. Temperature signal data acquisition.
  4. Meters & instruments signal conversion.

Pin Description:
  1. 24V 9-24V power supply +
  2. G Power supply -
  3. IN PT100 input +
  4. G PT100 input -
  5. OUT Output 0-5V(10V) +
  6. G GND

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating power supply 9-24VDC. If output is 0-10V, the power supply must be 15-24VDC.
Input PT100 thermal resistance
Input Temperature range PT100: -100 to +500℃
Output 0-5VDC or 0-10VDC
Output signal switch Default 0-5V output. If 0-10V output is required, theS2soldering pad must be in short-circuit.
Accuracy (PT 100 input) Output 0-5V, the accuracy is 0.0083333V/℃.
Output 0-10V, the accuracy is 0.0166666V/℃.
Operating Temperature -10 C to +50 C
Dimension 26x23x10mm (LxWxH)
Shipment Weight 0.010 kg
Shipment Dimensions 12 × 8 × 2.5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Temperature measured calculation formula:

  1. [(Output voltage V)/Accuracy]-100℃=Temperature measured (℃)

Note: When the output of 0.00V ~ 10.00V, power supply voltage to 15 volts.

  • Output (0.00V ~ 5.00V) Resolution: 0.0083333V / C
  • Output (0.00V ~ 5.00V) Resolution: 0.0083333V / C

Package Includes:

1 x PT100 to 0-5V Converter PCB-mounted PT100 to 0-10V Conversion Module RTD PT100 to Voltage Signal Conditioner.
