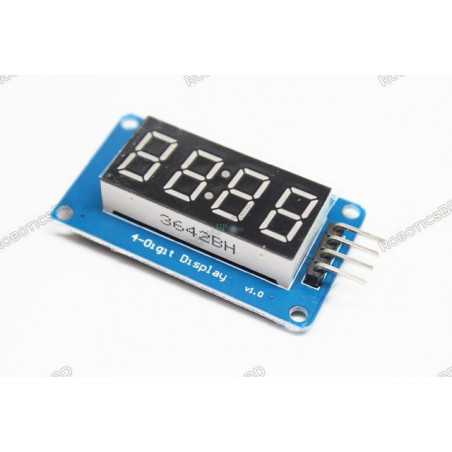

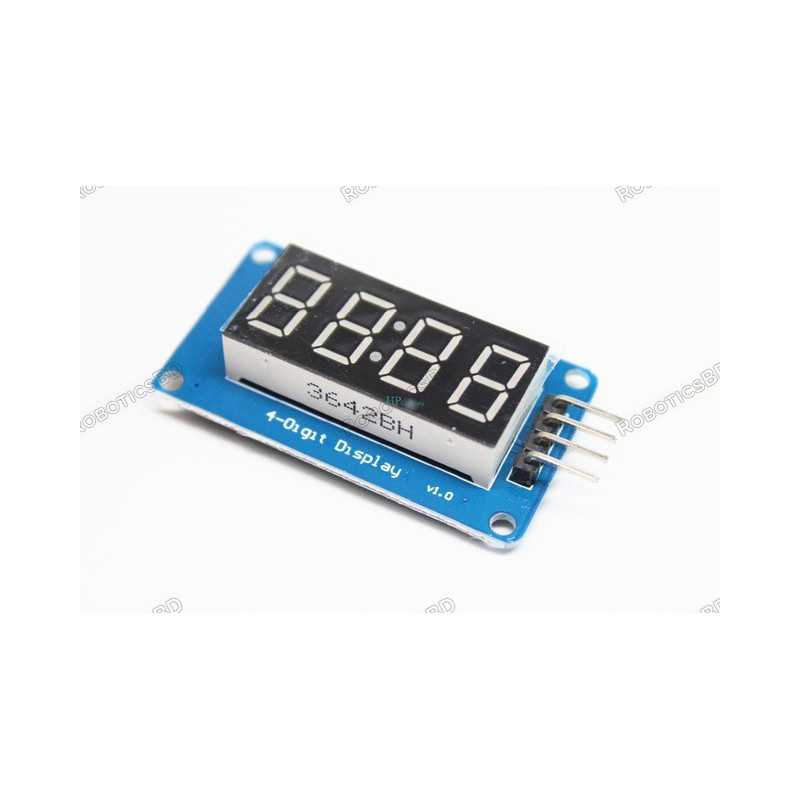

TM1637 LED Display Module for Arduino
  • TM1637 LED Display Module for Arduino
  • TM1637 LED Display Module for Arduino
  • TM1637 LED Display Module for Arduino

TM1637 LED Display Module for Arduino

RBD-0924

  • Driver Chip: MAX7219
  • Input Voltage: 3.7 to 5.3 V
  • Input Current: 30 mA
  • Display Dimensions: 42x24x12 (LxWxH) mm
BDT 120.00
BDT 120.00 BDT 120.00 BDT 120.00 BDT 120.00
Tax included Tax excluded Tax included Tax excluded
BDT 120.00 Tax excluded
BDT 120.00 Tax included
BDT 0.00 Tax
BDT 120.00 Tax excluded
BDT 0.00 Tax
BDT 120.00 Tax included
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The TM1637 4 Bits Digital Tube LED Display Module is an affordable solution for displaying the output data of your Arduino project. Though the data displayed is restricted by numbers still it allows users to display some characters too like A, B, C etc. RoboticsBD

This 7 segment LED Display has 4 digits which are controlled by TM1637 Driver Chip. It requires only two connections to control this TM1637 4 Bits Digital Tube LED Display Module. Also thanks to the I2C Bus you can control it using only 2 wires, leaving more pins available on your Microcontroller to connect other things. RoboticsBD

The module is a 12-foot clock with four common anode tube (0.36 inch) display module for driver IC TM1637, only two signal lines can make the MCU control four 7-segment digital tubes.

There are several modules using this TM1637 chip to form a 4 digit numerical display module. TM1637 has also keyboard input capability but is not used

Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Pinout Description :

LED Display module to Arduino

GND    –    GND
Vcc       –     5V
DIO     –      D2
CLK     –     D3

Features :

  1. Ease to use.
  2. Ease of multiplexing.
  3. Can use as a 4 digit display unit.
  4. Can use as a clock display.
  5. DIY clock project.
  6. 4 digit display unit. RoboticsBD
  7. Electrical/Electronic projects.
  8. The counter project using 7 segment display.
  9. 4 M2 screws positioning holes for easy installation

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Driver IC TM1637
Input Voltage (V) 3.3 to 5.5
Max. Operating Current (mA) 30
Length (mm) 42
Width (mm) 24
Height (mm) 12
Weight (gm) 10
Shipment Weight 0.015 kg
Shipment Dimensions 5 × 3 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. 4 bits 7 segment LED display with an Arduino

Package Includes :

1 x 4 Bits Digital Tube LED Display Module.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0924

Specific References

EAN13
0924
