RS232 Bluetooth Serial Adapter Communication Master-Slave Module Robotics Bangladesh
  • RS232 Bluetooth Serial Adapter Communication Master-Slave Module Robotics Bangladesh
  • RS232 Bluetooth Serial Adapter Communication Master-Slave Module Robotics Bangladesh

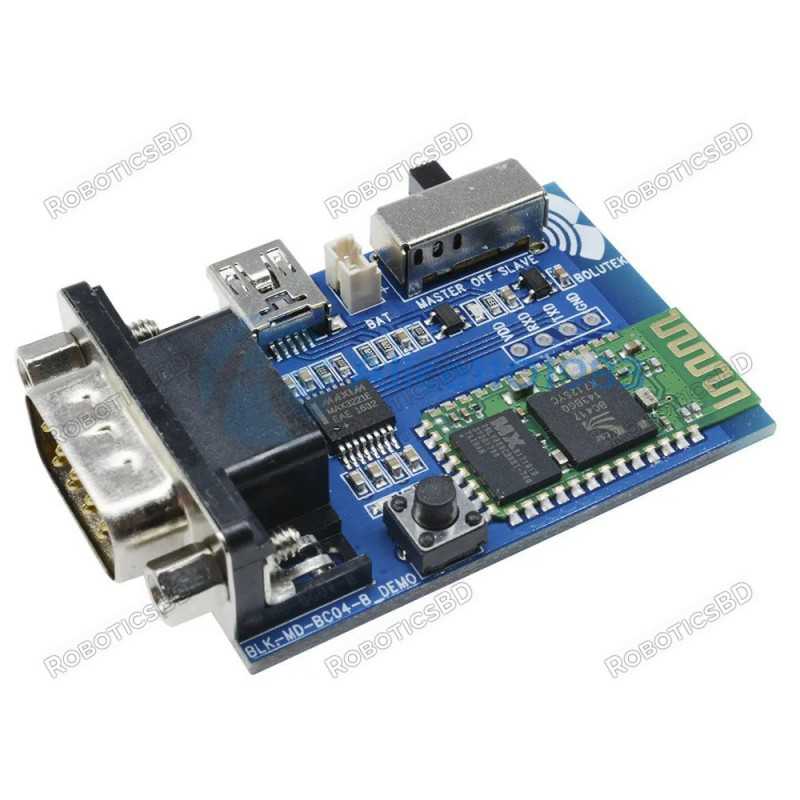

RS232 Bluetooth Serial Adapter Communication Master-Slave Module

RBD-2505

RS232 Bluetooth Serial Adapter Communication Master-Slave Module

BDT 1,250.00
BDT 1,250.00 BDT 1,250.00 BDT 1,250.00 BDT 1,250.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,250.00 Tax excluded
BDT 1,250.00 Tax included
BDT 0.00 Tax
BDT 1,250.00 Tax excluded
BDT 0.00 Tax
BDT 1,250.00 Tax included
Quantity
10 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Specification:


1.This product is embedded within the bluetooth communication protocol,no need to install the driver, can be used on windows systems ,
  you can also use dos, linux and other non- graphical operating system .
2.Support the bluetooth serial port profiles(spp), and with a bluetooth-enabled notebook computer , equipped with a bluetooth adapter, desktop computers,
   handheld bluetooth pda and bluetooth gps device supports bluetooth spp service connections and communication
3.Equipped with a reset button can remove the saved paired device information , and re-paired with the new bluetooth
4.Adopt bluetooth chip bluetooth 2.1 standard . enhanced ber error rate performance and automatic frequency hopping technology can ensure efficient and secure communication ,
  and has a stronger anti-jamming capability to ensure the stability and reliability of the communication .
5.User can set by using the at command from 1200bps nm total 12 different baud rate(default is 9600,n,8,1), can also set for the device more personalized bluetooth name
6.Transmitted power complies with the bluetooth the class2 standard, built-in high sensitivity pcb printed antenna, stable communication distance can up to 15m

Specifications:
  • Interface: RS232
  • Executive standard bluetooth SIG v2.1+EDR
  • Bluetooth protocol: bluetooth serial port profile (SPP)
  • Communication speed: 1200,2400,4800,9600,19200,38400,57600,115200,230400,460800,921600,1382400 bps
  • Modulation type: 2.4G ISM direct sequence frequency hopping (FHSS)
  • Communication distance: 15M at open space , class 2 level
  • Transmit power: 4 dbm
  • receiving sensitivity: -79dbm
  • operating voltage: 5v
  • Sleep current operating current: 40ma/1.6ma(typical value)
  • Operating temperature storage temperature -10-50 /-20-80 degrees celsius
  • Size: approx. 2.22x1.47x0.57"



Package Included:

  • 1PCS*RS232 Bluetooth Serial Adapter Communication Master-Slave 2 Modes 5v
Product Details
RBD-2505
10 Items

Specific References

EAN13
2505
