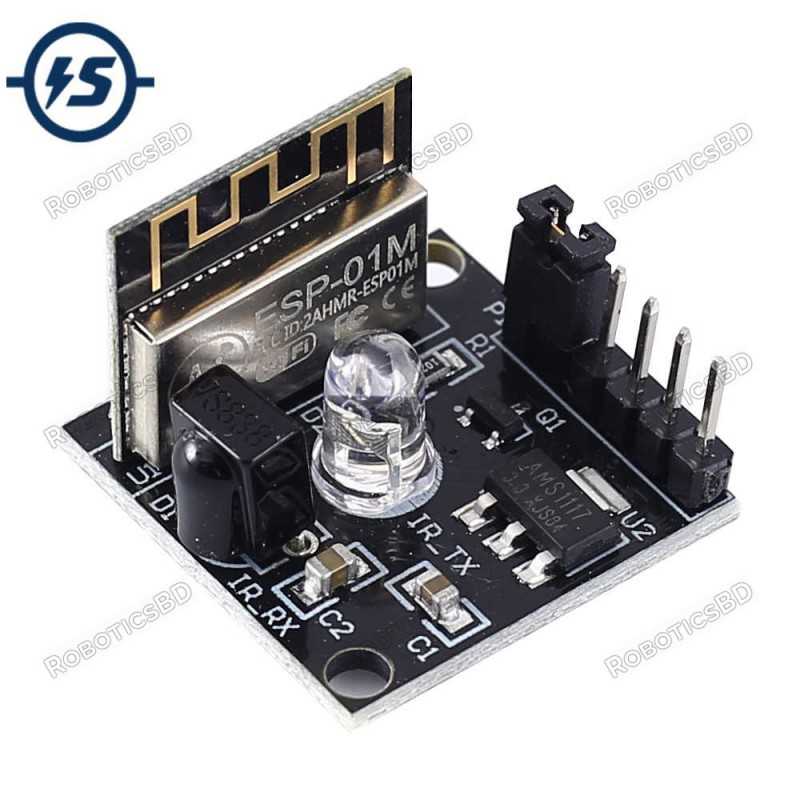

ESP8285 IR Infrared Transmitter Receiver Module WIFI Remote Control Switch Robotics Bangladesh
  • ESP8285 IR Infrared Transmitter Receiver Module WIFI Remote Control Switch Robotics Bangladesh
  • ESP8285 IR Infrared Transmitter Receiver Module WIFI Remote Control Switch Robotics Bangladesh

ESP8285 IR Infrared Transmitter Receiver Module WIFI Remote Control Switch

RBD-1670

  • The smallest 802.11b/g/n Wi-Fi SoC module
  • Uses low power 32bit CPU and compatible with the application processor
  • Main frequency up to 160MHz
  • Built-in 10Bit high precision ADC
  • Support UART/GPIO/PWM/ADC interface
  • Integrate Wi-Fi MAC/BB/RF/PA/LNA
BDT 690.00
BDT 690.00 BDT 690.00 BDT 690.00 BDT 690.00
Tax included Tax excluded Tax included Tax excluded
BDT 690.00 Tax excluded
BDT 690.00 Tax included
BDT 0.00 Tax
BDT 690.00 Tax excluded
BDT 0.00 Tax
BDT 690.00 Tax included
Quantity
In-Stock
16 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

ESP8285 infrared receiving and transmitting wifi remote control switch module development learning board

The ESP infrared transmitting and receiving remote module uses the ESP-01M module with ESP8285 as the core as the main control, and the program is the same as ESP8266. The module has an infrared receiver tube and an infrared transmitter tube which are controlled by io14 and io4 respectively, and there is a programming port. RoboticsBD

Send infrared related codes, infrared library, and programming environment construction process instructions, programming language Arduino, demonstration program can read and transmit infrared keys and original codes. With it, you can record the infrared remote control at home, if you connect to the Internet of Things platform, you can remotely control it. Provide programming port (communicable and power supply), which can be connected to TTL downloader. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Support Infrared control
  2. Support wireless WIFI control
  3. Support firmware update

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model: ESP_IR-TR
Work Voltage: DC 5V
Work Temperature: -25℃~85℃
Work Humidity: 5%~95%RH
Size: 23.4*23.4*18mm
Shipment Weight 0.007 kg
Shipment Dimensions 12 × 8 × 2.5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Update firmware:

  1. Connect IO0 and GND pins.
  2. Connect module to PC by USB to UART converter.
  3. Open software 'FLASH DOWNLOAD TOOLS V3.6.4'.
  4. Set parameters.
  5. Click START to download firmware.
  6. Remove connect between IO0 and GND pins then update complete.

Package Includes:

1 x ESP8285 IR Infrared Transmitter Receiver Module WIFI Remote Control Switch.
