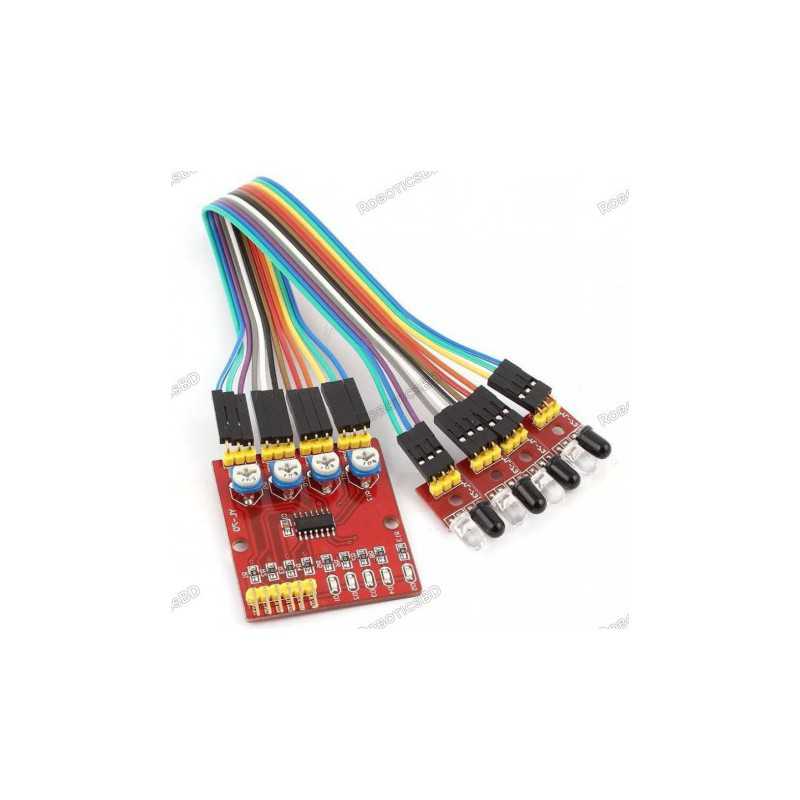

4 Channel Infrared Line Following and Obstacle Sensor

RBD-2215

  • Working voltage (V): 3.3 ~ 5
  • Working current (A): Above 1A
  • Operating Temperature (℃): -10 ~ +50
  • Mounting hole: M3
  • Detection range: 1mm ~ 60 cm adjustable.
BDT 299.00
BDT 299.00 BDT 299.00 BDT 299.00 BDT 299.00
Tax included Tax excluded Tax included Tax excluded
BDT 299.00 Tax excluded
BDT 299.00 Tax included
BDT 0.00 Tax
BDT 299.00 Tax excluded
BDT 0.00 Tax
BDT 299.00 Tax included
Quantity
In-Stock
41 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Every road of the infrared transmitting tube continuously launch infrared sensor, the infrared ray is emitted when the intensity of reflected back has not been reflected or but is not big enough, the infrared receiving tube has been in the off state, the module of TTL outputs high level, the corresponding indicator diode has been put out state; When detected objects appear within the scope of testing, infrared light is reflected back and strength is enough big, the infrared receiving tube conduction, the TTL output end of the module for low level at this time, instructs the diode lights. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Detection range: 1mm to 60 CM adjustable, the closer the performance more stable, white reflects the farthest distance.
  2. Size: in the control panel:42 x 38 x 12mm (length x width x height).
  3. Small forward: 25 x 12 x 12mm (length x width x height).
  4. Output interface: 6 wire interface (1234 to 4 signal output ends, + positive power, – for the negative power is ground)
  5. The output signal: TTL level (can be directly connected to I/0 microcontroller, infrared light reflected back to the sensor induction, the red indicator light, output low level; no infrared light, the indicator light does not shine, the output high.)
  6. 4 channel infrared line following and obstacle sensor
  7. Uses infrared sensors to detect black and white lines and obstacles
  8. Adjustable detection distance and sensitivity
  9. Onboard voltage regulator for stable operation
  10. Compact design for easy integration into various types of electronic systems

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. The intelligent car or robot line (including black and white lines), walked along the black line path, also known as tracing.
  2. The intelligent car cliff avoidance, prevent fall off.
  3. The smart car obstacle avoidance
  4. Can be used in other automatic photoelectric reflex application.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Working Voltage 3.3 V to 5 V DC
Working Current 1 A or higher recommended
Working Temperature -10°C to +50°C
Installation Aperture M3 screws
Detection Distance Adjustable from 1mm to 60cm; closer distance provides more stable performance, while white reflection provides the furthest distance
Control Board Size 44mm x 30mm x 8.5mm (L x W x H)
Small Board Sensor (Obstacle Avoidance) Size 11mm x 25mm x 10mm (L x W x H)
Small Plate Sensor (Tracking) Size 20mm x 11mm x 15mm (L x W x H)
Shipment Weight 0.03 kg
Shipment Dimensions 12cm x 8cm x 4cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Pin Description:
  1. The DO1-1 road TTL level output
  2. DO2-2 road TTL level output
  3. DO3-3 road TTL level output
  4. DO4-4 road TTL level output
  5. GND - connect power anode
  6. VCC - positive

Package Includes:

1 x 4 Channel Infrared Line Following and Obstacle Sensor

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-2215
41 Items

Specific References

EAN13
2215
