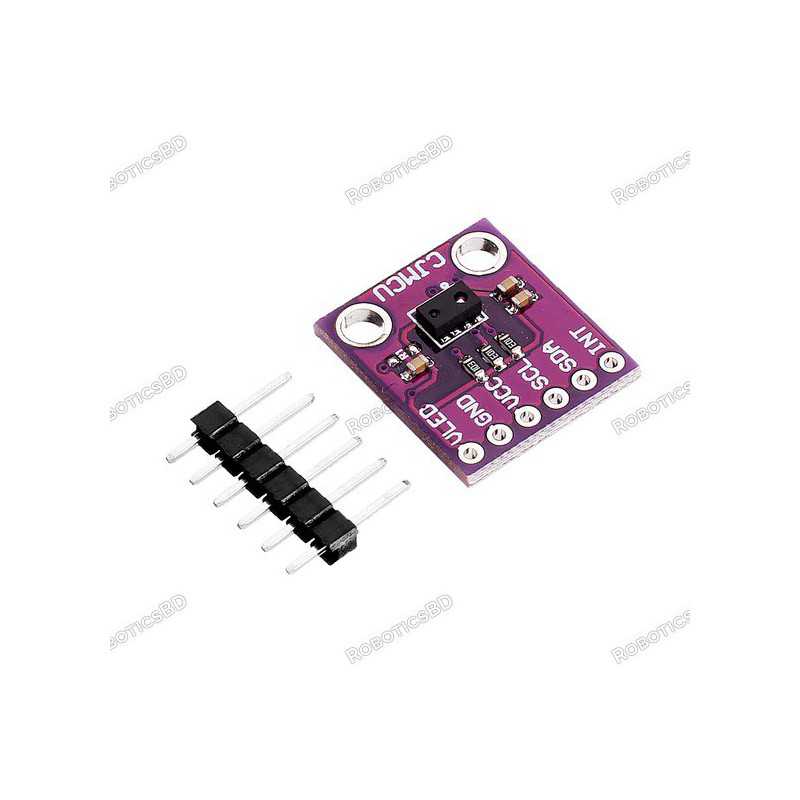

This is CJMCU 9930 APDS-9930 Digital Proximity And Ambient Light Sensor For Arduino. The APDS-9930 provides digital ambient light sensing (ALS), IR LED and a complete proximity detection system in a single 8 pin package. The proximity function offers plug and play detection to 100 mm (without front glass) thus eliminating the need for factory calibration of the end equipment or sub-assembly.
The proximity detection feature operates well from bright sunlight to dark rooms. The wide dynamic range also allows for operation in short distance detection behind dark glass such as a cell phone.
In addition, an internal state machine provides the ability to put the device into a low power mode in between ALS and proximity measurements providing very low average power consumption. The ALS provides a photopic response to light intensity in very low light condition or behind a dark faceplate. . Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| Pin Label |
Description |
| VL |
Optional power to the IR LED. Must be 3.0 – 4.5V |
| GND |
Ground. |
| VCC |
Must be 2.4 – 3.6V |
| SDA |
I2C data |
| SCL |
I2C clock |
| INT |
External interrupt pin. |
Features :
- Optical modules integrated with ALS, infrared LEDs and proximity detectors
- Ambient Light Sensing (ALS)
– Approximate human visual response
– Programmable interrupt capability with upper and lower thresholds
– Up to 16-bit resolution
– High sensitivity operation behind dark glass
– 0.01lux low lumen performance
- Proximity detection
– Fully calibrated to 100 mm detection
– Integrated infrared LED and synchronous LED driver
– Eliminates factory calibration of the proximity sensor
- Programmable wait timer
– Wait for state power consumption – 90μA typical
– Programmable range from 2.7 ms to more than 8 seconds
- I2C interface compatible
– Up to 400kHz (I2C fast mode)
– Dedicated interrupt pin.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Adjustable light mobile phone backlight
- Notebook / display security
- Automatically enabled hands-free mode
- Automatic menu pop up
- Digital camera eye sensor.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Operating voltage (v) |
2.8 ~ 3.8 |
| Resolution |
16-Bit |
| Model |
APDS-9930 |
| Wait State Power |
90 µA |
| Operating frequency (KHz) |
400 |
| Length (mm) |
18.3 |
| Width (mm) |
15 |
| Height (mm) |
4 |
| Weight (gm) |
2 |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
3 × 3 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Arduino code and User Instructions.
Package Includes:
1 x CJMCU 9930 APDS-9930 Digital Proximity And Ambient Light Sensor.
