Arduino Uno R3 SMD

RBD-0323

  • Microcontroller ATmega328 (SMD) – Interface CH340G
  • Operating Voltage: 5V
  • Input Voltage (recommended): 7-12V
  • Digital I / O Pins 14 (of which 6 provide PWM output) RoboticsBD
  • Analog Input Pins: 6
  • A programming cable is included.
BDT 574.00
BDT 574.00 BDT 574.00 BDT 574.00 BDT 574.00
Tax included Tax excluded Tax included Tax excluded
BDT 574.00 Tax excluded
BDT 574.00 Tax included
BDT 0.00 Tax
BDT 574.00 Tax excluded
BDT 0.00 Tax
BDT 574.00 Tax included
Quantity
In-Stock
151 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

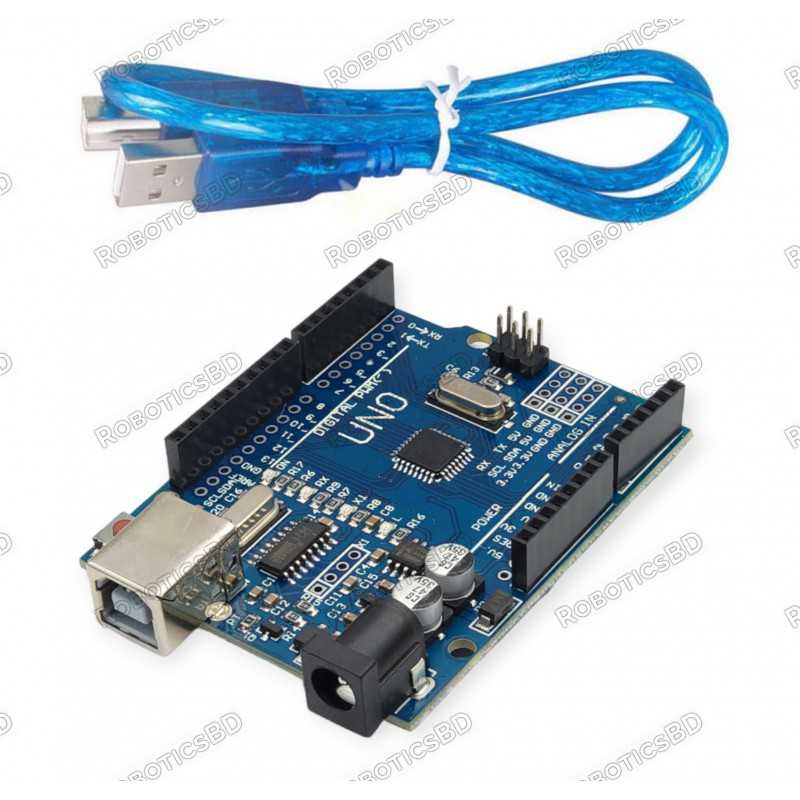

This is UNO R3 CH340G ATMega328P compatible with Arduino + Cable. A basic Arduino kit with all the components included eliminating the time our customers for finding and buying Arduino ant its basic accessories. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Arduino Uno R3 SMD CH340G ATmega328p Development Board is the low-cost version of the popular Arduino Uno R3. It is assembled with the CH340 USB to Serial converter chip, instead of using an Atmega16U2 chip. RoboticsBD

Main changes from the Arduino Uno R3

1. Two rows of the holes for the pins (Male and Female). So it can be connected with normal Female Jumpers.
2. Additional 3 rows of the holes for wiring.
3. Changes to the DIP package of ATMEGA328P to flat package. RoboticsBD
4. CH340G replace ATmega16U2

How to use:

1. Download the IDE Arduino
2. Download the USB chip driver
3. Plug in UNO development board, the driver will be installed automatically
4. Select the UNO from the Tools>Board
5. Select the COM port from the Tools>COM
6. Upload your code. RoboticsBD

 Features :

  1. Microcontroller ATmega328 (SMD) – Interface CH340G
  2. Operating Voltage: 5V
  3. Input Voltage (recommended): 7-12V
  4. Input Voltage (limits): 5-20V
  5. Digital I / O Pins 14 (of which 6 provide PWM output)
  6. Analog Input Pins: 6
  7. DC Current per I Pin: 40 mA
  8. DC Current for 3.3V Pin: 50 mA
  9. Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by bootloader
  10. SRAM: 2 KB (ATmega328)
  11. EEPROM: 1 KB (ATmega328)
  12. Clock Speed: 16 MHz. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Microcontroller Chip ATmega328 (SMD) – Interface CH340G
Operating Voltage 5 V
Input Voltage(Recommended) 7-12V
Input Voltage (limit) 6-20V
Analog I/O Pins 6
Digital I/O Pins 14 (of which 6 provide PWM output)
PWM Digital I/O Pins 6
DC Current for 3.3V Pin 50 mA
DC Current per I/O Pin 40 mA
Clock Speed 16 MHz
SRAM 2 KB (ATmega328)
EEPROM 1 KB (ATmega328)
Flash Memory 32 KB (ATmega328) of which 0.5 KB used by bootloader
Power Supply Option DC Jack or USB
On Board LEDs On/Off, L (PIN 13), TX, RX
Operating Temperature (°C) -40 to +90
Dimensions in mm (LxWxH) 75 x 54 x 12
Weight (gm) 26
Shipment Weight 0.16 kg
Shipment Dimensions 12 × 8 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x UNO R3 Arduino.
1 x Cable for UNO.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0323
151 Items

Specific References

EAN13
0323
Attachments
Download
Arduino Driver

Arduino Driver

Download (178.97KB)
