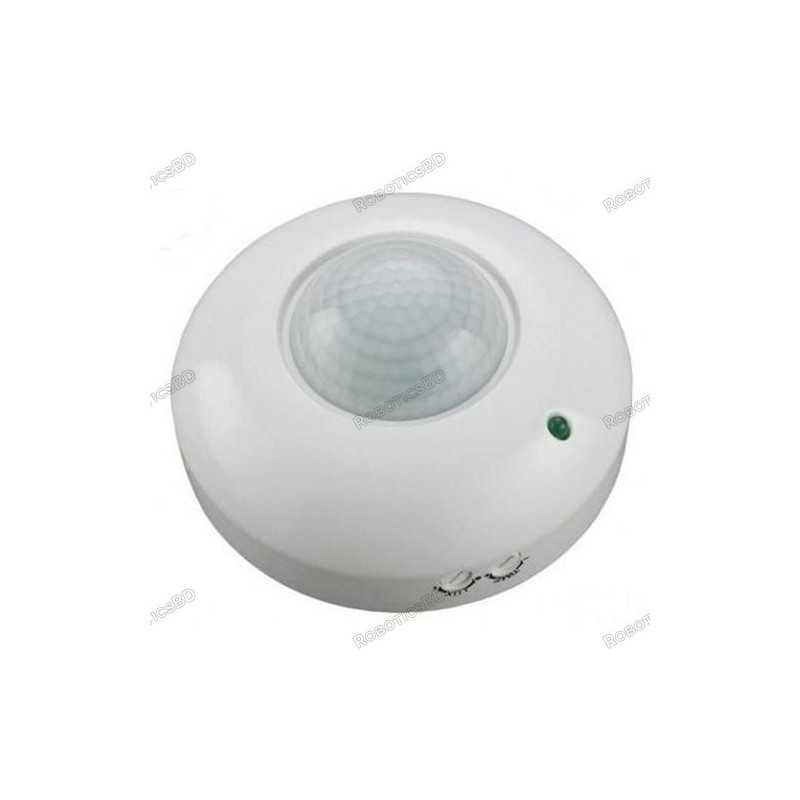

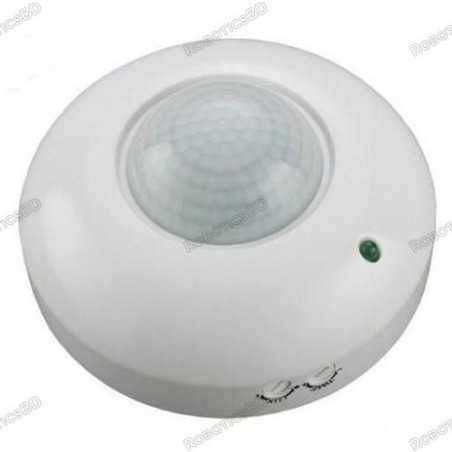

PIR Sensor 360 Degree Ceiling Mounted

RBD-1866

  • High Sensitivity PIR Sensor
  • 360 Degree IR Infrared Motion Sensor
  • Light Switch AC 110V-240V
  • Ceiling Recessed PIR Switch Detector
BDT 1,050.00
BDT 1,050.00 BDT 1,050.00 BDT 1,050.00 BDT 1,050.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,050.00 Tax excluded
BDT 1,050.00 Tax included
BDT 0.00 Tax
BDT 1,050.00 Tax excluded
BDT 0.00 Tax
BDT 1,050.00 Tax included
Quantity
In-Stock
10 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

A passive infrared sensor (PIR sensor) is an electronic sensor that measures infrared (IR) light radiating from objects in its field of view. They are most often used in PIR-based motion detectors. PIR sensors are commonly used in security alarms and automatic lighting applications. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Infrared motion sensor:

Thanks to the high-quality infrared motion sensor from Maclean, the light always turns on exactly when it is really needed.

Detection range of 360 degrees:

This infrared motion sensor from Maclean Energy has a detection range of 360 degrees and a maximum detection range of 6 meters. The required mounting height is 2.2 to max. 4 meters.

Wide adjustment options:

The ambient light can be adjusted from 3 to max. 2000 lux and the adjustable light time from 10 seconds up to max. 7 minutes.

Features:

  1. Input voltage: 230V/50Hz. Maximum load: 1200W standard bulb / energy saving bulb 300W
  2. Range of motion detection distance up to 6 m at 24˚C. The angle of the sensor: 360˚
  3. Lighting time (adjustable): from 10 seconds to 7 minutes. Threshold (adjustable): from 3 to 2000 lux. Protection class IP 20 (for indoor use)
  4. Operating temperature: -20˚C to +40˚C. mounting height: 2.2 to 4m. speed motion detection: 0.6~1.5 m/s
  5. Material: plastic in white. device works seamlessly with LED bulbs

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Power supply 220 - 240 A/AC.
Frequency 50/60 Hz.
Ambient light 3-2000 LUX.
Adjustable light time 10 - 3s / 7 - 2min.
Detection range 360 degrees and max. 6 m. (at 24 Celsius degrees).
Mounting height 2.2 - 4 m.
Working temperature -20 - +40 degrees Celsius.
Humidity <93% RH.
Power consumption 0.45 W / 0.1 W.
Lamp 1200 W and 300 W (with energy-saving bulb).
Speed/Motion Detection 0.6 ~ 1.5 m/s.
Shipment Weight 0.165 kg
Shipment Dimensions 12 × 12 × 7 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x PIR Sensor 360 Degree Ceiling Mounted
