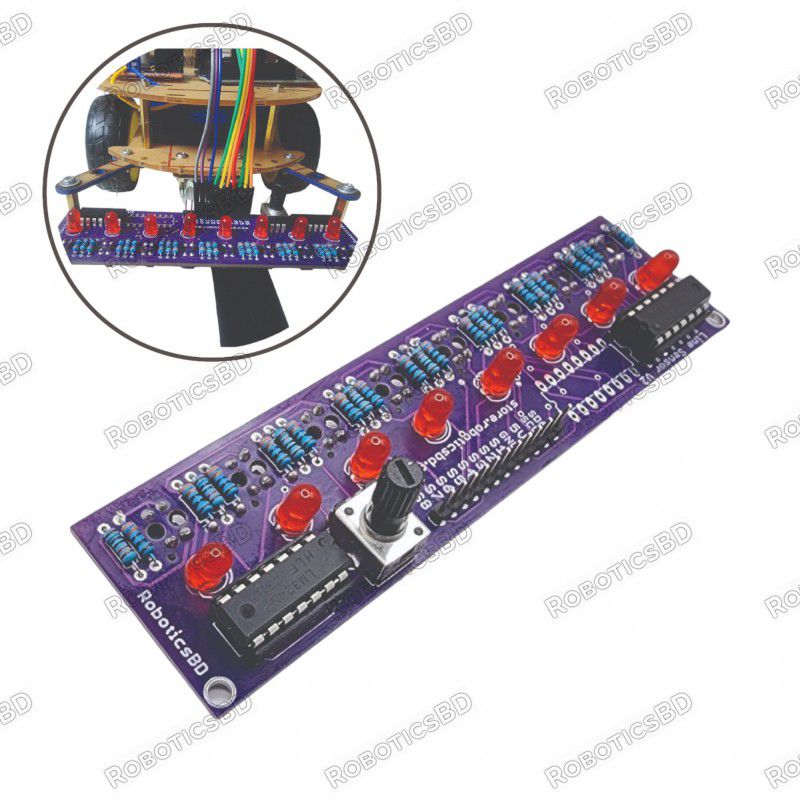

Imagine your robot gliding effortlessly down a black line, its path guided by the unerring accuracy of the Digital Line Following Sensor 8 Array V2. This powerful module harnesses the power of eight infrared sensors to deliver exceptional line following performance. Feel the satisfaction of precise control as your robot maneuvers with confidence, thanks to the sensor's fast response and easy calibration. Unleash the possibilities of line-following robotics with this versatile and user-friendly module. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Superior Resolution: Utilize eight infrared sensors for unparalleled line detection accuracy.
- Direct Microcontroller Connection: Simplify integration with digital outputs compatible with various microcontrollers.
- Exceptional Speed: Achieve optimal line following performance even at high speeds.
- Effortless Calibration: Calibrate sensors quickly and efficiently with a large, easy-to-use knob.
- Optional I2C Connectivity: Enhance flexibility with an optional I2C interface (not included).
- Programming Support: Access readily available sample programming code for smooth implementation.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Line Following Robots: Build robots that confidently navigate black lines on white surfaces.
- Object Tracking: Design projects that track objects based on their color or reflectivity.
- Obstacle Avoidance: Use the sensor to detect and avoid obstacles in your robot's path.
- Maze Solving: Create robots that can navigate complex mazes using line following techniques.
- Educational Robotics: Explore line following concepts and sensor technology with a user-friendly module.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Operating Voltage |
5.0 V |
| Output Format |
8 Digital Output |
| Optimal Sensing Distance |
3 mm |
| Maximum Recommended Sensing Distance |
6 mm |
| Sensor Configuration |
8 infrared sensors |
| Output Interface |
Digital outputs |
| Calibration Feature |
Large knob for easy calibration |
| Optional I2C |
Yes (not included) |
| Programming Support |
Sample code available |
| Shipment Weight |
0.030 kg |
| Shipment Dimensions |
15 x 8 x 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
Calibration Procedure:
- Power the sensor from your Arduino using only 5V and GND.
- Hold the sensor in a blank space, ensuring no object is reflecting to the sensor.
- Hold the sensor from the side to avoid obstructing the sensor with your hand or finger.
- Turn the knob until all 8 LEDs light up simultaneously.
- Slowly rotate the knob in the opposite direction until all 8 LEDs turn off.
- Your sensor is now calibrated at maximum reflectance.
- Test the sensor using a white paper and black tape.
- Ensure the black tape is dark enough not to reflect the infrared light from the sensor.
- This calibration process ensures optimal performance and accurate readings for your sensor.
Sample Code:
Package Includes:
1 x Digital Line Following Sensor 8 Array V2
