HX1838 NEC Code Infrared Remote Control Module DIY Kit Robotics Bangladesh
  • HX1838 NEC Code Infrared Remote Control Module DIY Kit Robotics Bangladesh

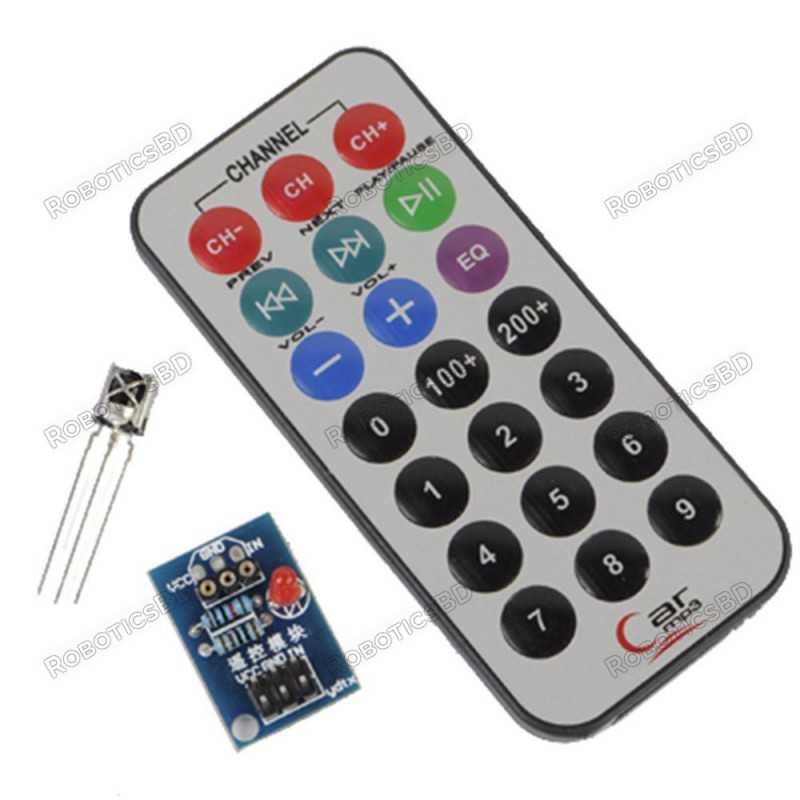

HX1838 NEC Code Infrared Remote Control Module DIY Kit

RBD-0666

  • Crystal: the oscillation frequency of 455.
  • Button: free height is less than 3mm, the force 200-350g, the life of more than 200 000.
  • Photo-detector and preamplifier in one package.
  • Internal filter for PCM frequency. RoboticsBD
  • Improved shielding against EMI.
  • Don’t forget to add CR2025 Battery to your Cart as this remote does not come with a battery
BDT 399.00
BDT 399.00 BDT 399.00 BDT 399.00 BDT 399.00
Tax included Tax excluded Tax included Tax excluded
BDT 399.00 Tax excluded
BDT 399.00 Tax included
BDT 0.00 Tax
BDT 399.00 Tax excluded
BDT 0.00 Tax
BDT 399.00 Tax included
Quantity
In-Stock
50 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is HX1838 VS1838 NEC Infrared IR Wireless Remote Control Sensor Module For Arduino. The sensor uses HX1838, with high sensitivity and Operating voltage 5V. Output form Digital output. VCC: 3.3V-5V external voltage (can be directly connected to the 5v microcontroller and 3.3v microcontroller).

Kit theory test distance of about 5-8 meters, but the practical application depends on the ambient factors you use, as well as the middle barrier (such as diaphragm, glass, obstructions or other material blocking), RoboticsBD

Receiving head with HX1838 with power work instructions lights, receive 38K frequency any remote coding data. RoboticsBD

This is new ultra-thin 38K universal infrared IR Remote Control , NEC encoding format 1-21-key remote control, USB port stereo, car MP3, foot bath, lighting, digital photo frame, microcontroller development board, learning board, etc. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Note: IR Remote does not come with Battery (CR2025) you have to buy it separately.

Features:

  1. Crystal: the oscillation frequency of 455
  2. Encoding: the encoding format of the NEC, upd6122 encoding scheme, the user code 00FF, key coding below
  3. Button: free height is less than 3mm, the force 200-350g, the life of more than 200 000
  4. Photo-detector and preamplifier in one package
  5. Internal filter for PCM frequency
  6. Improved shielding against EMI

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Transmission Distance up to 8m
Effective Angle 60°
Static Current (µA) 3 ~ 5
Dynamic Current (mA) 3 ~ 5
Supply Voltage (V) 2.7 – 5.5
Remote Battery 1 x CR2025 Button battery ( not Included)
Remote dimensions as per below
Length (mm) 85.7
Width (mm) 40
Height (mm) 6.5
Weight (gm) 10
Shipment Weight 0.015 kg
Shipment Dimensions 9 × 4 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Arduino Infrared Remote Tutorial

Package Includes:

1 x IR Remote Control Module

1 x IR Telecontrol

1x Receiver.
