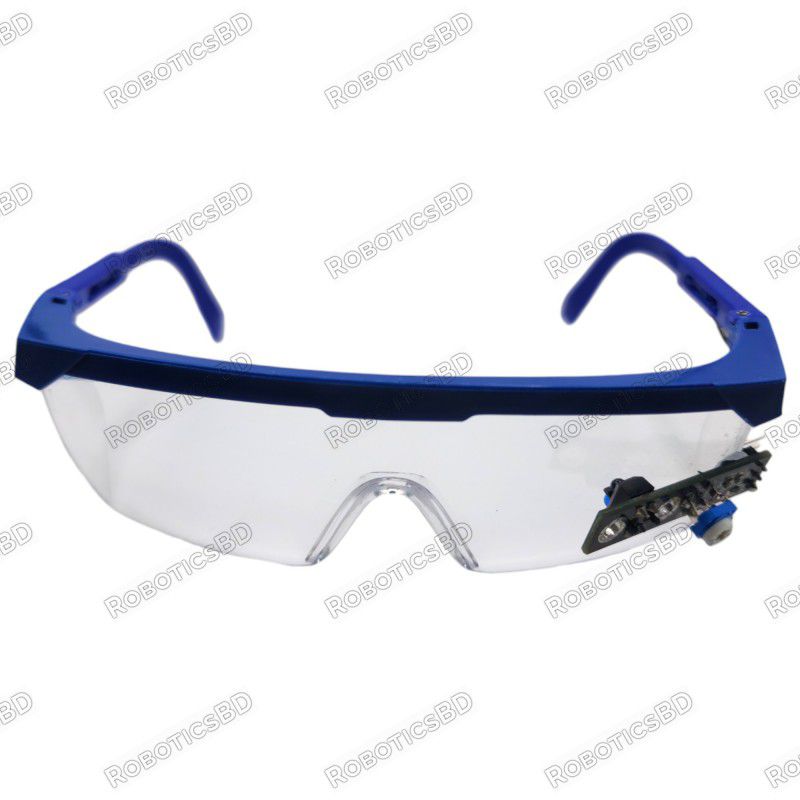

Eye Blink Detection Digital Sensor with Goggles

This TCRT5000 can also be used as an Eye Blink Infrared Sensor Module is a great detector for a detecting eye blink. Potentiometer to adjust the sensitivity of the individual sensors. Featured By RoboticsBD.

Eye Blink Sensor is a device engineered to detect eye blinks seamlessly.

The key component of our Eye Blink Sensor is the infrared sensor, This sensor is compact and lightweight, allowing for easy integration with any pair of glasses. Users can simply purchase their preferred glasses separately and securely attach the sensor using adhesive/glue.

Here's what you need to get started with our Eye Blink Sensor:

Infrared Sensor: This sensor is equipped with three essential pins for easy connectivity:

1. VCC: Requires a 5V input for operation.
2. OUT: Outputs a signal based on blink detection, indicating whether the eye is open or closed.
3. GND: Provides the necessary ground connection for the sensor.

Glasses: Users can choose their preferred pair of glasses, whether prescription or non-prescription, and securely attach the infrared sensor using adhesive. This flexibility ensures compatibility with various styles and preference

This TCRT5000 can also be used as a  Single Channel Line Tracking Sensor Module is a great detector for a line-following robot. Potentiometer to adjust the sensitivity of the individual sensors. Featured By RoboticsBD.

TCRT5000 Single Channel Line Tracking Sensor Module is a carrier board for TCRT5000 reflective optical sensor. Although it is designed for use with line-following robots, it can be used in mini-sumo robots for line control. The board has a digital output. Featured By RoboticsBD.

The concept of working of line follower sensor is related to light. We use here the behavior of light at the black and white surface. When light fall on a white surface it is almost fully reflected and in case of black surface light is completely absorbed. This behavior of light is used in building a line follower sensor. Featured By RoboticsBD.

Each phototransistor is connected to a pull-up resistor to form a voltage divider that produces an analog voltage output between 0 V and VIN (which is typically 5 V) as a function of the reflected IR. The lower output voltage is an indication of greater reflection.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Note: Product images/ Components brand may vary from actual product as our stock rotates.

Note: PCB might be different from the picture as per stock

Features :

1. Working voltage of 5V, the output of the black line low, white line of high output
2. Uses Infrared Light to Detect Anti-Interference Ability
3. Sensors to adopt TCRT5000 High Sensitivity, Stable Performance
4. Exquisite workmanship, with the indicator
5. Has a fixed bolt hole for easy installation

Please allow 5% measuring deviation due to manual measurement.

Package Includes :

1 x TCRT5000 Single channel line tracking sensor module.
