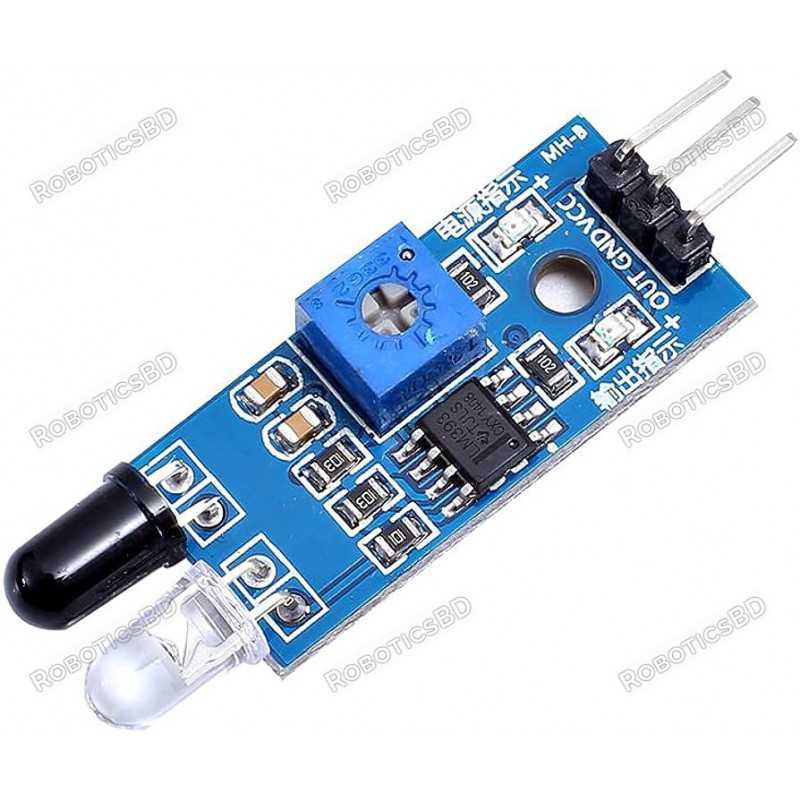

Infrared Obstacle Avoidance IR Sensor Module

RBD-0685

  • Detection distance: 2 ~ 30cm
  • Detection angle: 35 °
  • Comparator chip: LM393
  • 3mm screw holes for easy mounting
BDT 69.00
BDT 69.00 BDT 69.00 BDT 69.00 BDT 69.00
Tax included Tax excluded Tax included Tax excluded
BDT 69.00 Tax excluded
BDT 69.00 Tax included
BDT 0.00 Tax
BDT 69.00 Tax excluded
BDT 0.00 Tax
BDT 69.00 Tax included
Quantity
In-Stock
909 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Infrared Obstacle Avoidance IR Sensor Module (Active Low) has a pair of infrared transmitting and receiving tubes. When the transmitted light waves are reflected back, the reflected IR waves will be received by the receiver tube. The onboard comparator circuitry does the processing and the green indicator LED comes to life. RoboticsBD

The module features a 3 wire interface with Vcc, GND, and an OUTPUT pin on its tail. It works fine with 3.3 to 5V levels. Upon hindrance/reflectance, the output pin gives out a digital signal (a low-level signal). The onboard preset helps to fine-tune the range of operation, the effective distance range is 2cm to 80cm.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Connection Diagram:

685

Features:

  1. Easy to assemble and use
  2. Onboard detection indication. RoboticsBD
  3. The effective distance range of 2cm to 80cm
  4. A preset knob to fine-tune distance range
  5. If there is an obstacle, the indicator lights on the circuit board.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Main Chip LM393
Operating Voltage (VDC) 3.6 ~ 5
Average Current Consumption (mA) 0.06
Detection Angle 35 °
Distance Measuring Range (CM) 2 ~ 30
Dimensions (mm) LxWxH 48 x 14 x 8
Weight (gm) 5
Shipment Weight 0.01 kg
Shipment Dimensions 5 × 4 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Arduino Project

Package Includes :

1 x Infrared Obstacle Avoidance IR Sensor Module (Active Low)

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0685
909 Items

Specific References

EAN13
0685
