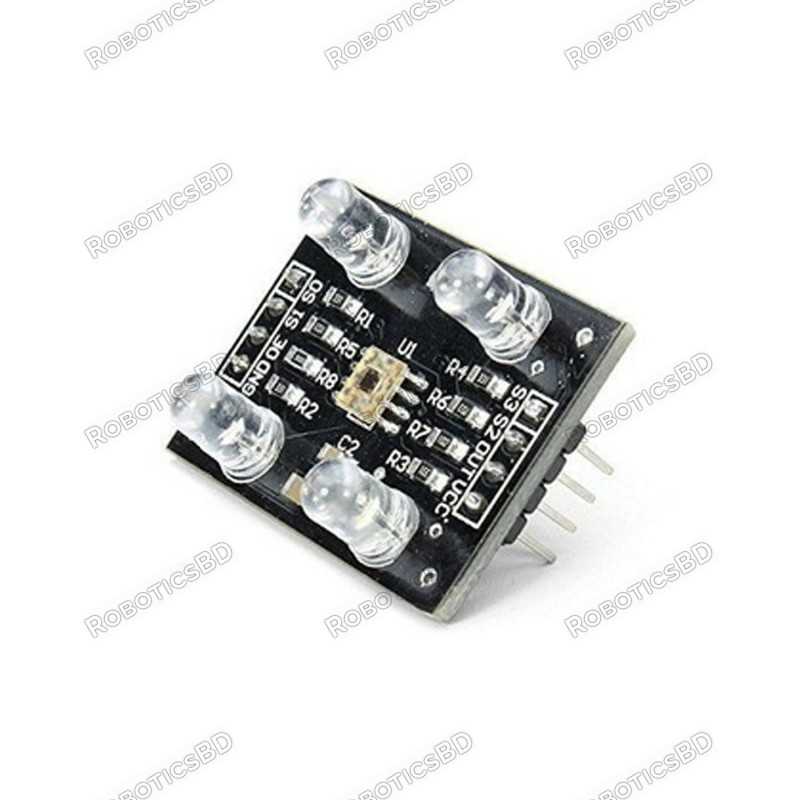

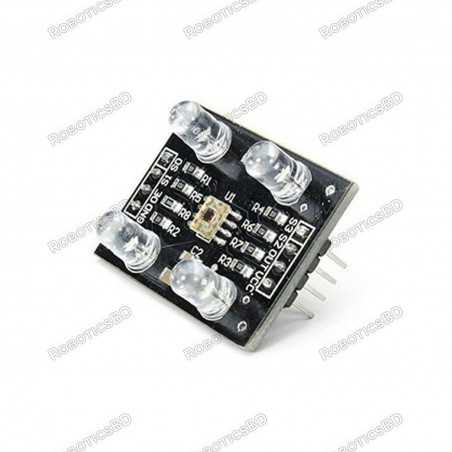

The TCS3200 Color Recognition Sensor Module uses a high-quality light sensor allowing you to sense any color through a combination of Red, Green, and Blue. The module provides all of the pins of the TCS3200 on convenient 0.1″ headers – ideal for use with PCBs, breadboard or stripboard.
Four white LEDs provide plenty of light for the color sensor and allow you to use the module in any ambient light.
The module requires only a single supply voltage between 2.7V and 5.5V – making it compatible with nearly all common microcontrollers
The pinout is clearly labeled on the board and is as follows
Header one on the left side of the board
- S0: Output frequency scaling selection input (along with S1)
- S1: Output frequency scaling selection input (along with S0)
- OE: Output Enable – if held low, the output of the module is turned on
- GND: Ground – connect to 0V
Header two on the right side of the board
- S3: Photodiode type (along with S2)
- S2: Photodiode type (along with S3)
- OUT: Output – A square wave appears here showing the intensity of the detected colour
- VCC: Power – connect to 2.7V-5.5V
The Photodiode type pins allow you to pick which color light you are currently detecting:
S2 S3 Photodiode type
Low Low Only red light
Low High Only blue light
High Low No filter
High green light
By combining the reading of each of the three colors, you can identify any visible color!
Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features :
- High-resolution conversion of light intensity to frequency.
- Chip pins all has drawn for standard 100.
- Put the needle (2.54 mm).
- Mil-convenient for bitmap board.
- Programmable color and full-scale output frequency.
- Communicate directly with a microcontroller.
- Low-profile surface mount package.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Operating Voltage (VDC) |
3 ~ 5 |
| Best Detection Range(mm) |
100 |
| Length (mm) |
32 |
| Width (mm) |
25 |
| Height (mm) |
11 |
| Weight (gm) |
4 |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
5 × 4 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes :
1 x TCS230 TCS3200 Color Sensor Recognition Module
