Waterproof DS18B20 Digital Thermal Probe or Sensor
  • Waterproof DS18B20 Digital Thermal Probe or Sensor
  • Waterproof DS18B20 Digital Thermal Probe or Sensor

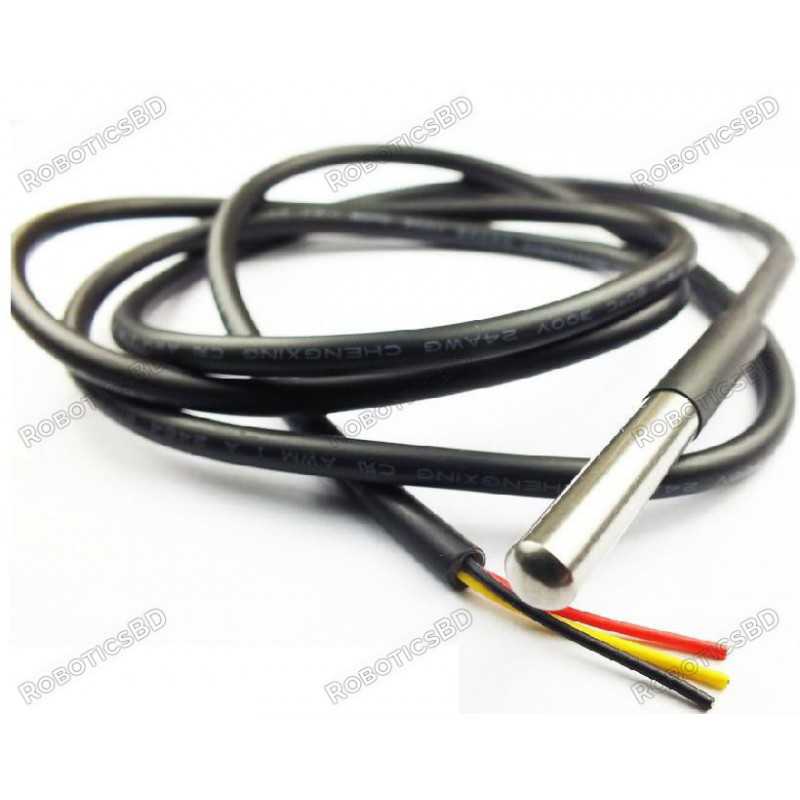

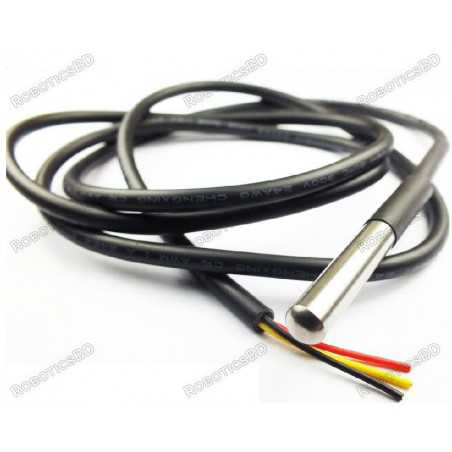

Waterproof DS18B20 Digital Thermal Probe or Sensor

RBD-0414

  • A probe by new original installation import DS18B20 temperature sensor chip. RoboticsBD
  • Chip each pin use heat shrinkable tube to prevent short circuit, internal sealing glue, waterproof, moistureproof.
  • Stainless steel tube encapsulation waterproof moistureproof prevent rust.
  • Stainless steel shell (6 * 45 mm), lead length 100 cm (shielding wire) use stability.
  • Without the external components, the unique single bus. RoboticsBD
BDT 350.00 BDT 350.00 BDT 350.00 BDT 350.00 BDT 350.00
BDT 300.00 Save BDT 50.00
BDT 300.00 BDT 300.00 BDT 300.00 BDT 300.00
Tax included Tax excluded Tax included Tax excluded
BDT 350.00 BDT 300.00 Tax excluded
BDT 350.00 BDT 300.00 Tax included
BDT 0.00 BDT 0.00 Tax
BDT 350.00 BDT 300.00 Tax excluded
BDT 0.00 BDT 0.00 Tax
BDT 350.00 BDT 300.00 Tax included
Quantity
In-Stock
52 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is a pre-wired and waterproofed version of the DS18B20 sensor. Handy for when you need to measure something far away, or in wet conditions. While the sensor is good up to 125°C the cable is jacketed in PVC so we suggest keeping it under 100°C. Because they are digital, you don't get any signal degradation even over long distances! These 1-wire digital temperature sensors are fairly precise (±0.5°C over much of the range) and can give up to 12 bits of precision from the onboard digital-to-analog converter. They work great with any microcontroller using a single digital pin, and you can even connect multiple ones to the same pin, each one has a unique 64-bit ID burned in at the factory to differentiate them. Usable with 3.0-5.0V systems.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Not for use in salt water or other corrosive environments.

Cable Features :

  1. Stainless steel tube 6mm diameter by 30mm long
  2. Cable is 36" long / 91cm, 4mm diameter
  3. Contains DS18B20 temperature sensor
  4. If your sensor has four wires - Red connects to 3-5V, Black connects to ground and White is data. The copper wire is soldered to the wire shielding
  5. If your sensor has three wires - Red connects to 3-5V, Blue/Black connects to ground and Yellow/White is data. RoboticsBD

DS18B20 Technical specs:

  1. Usable temperature range: -55 to 125°C (-67°F to +257°F)
  2. 9 to 12 bit selectable resolution
  3. Opto isolation circuitry
  4. Uses 1-Wire interface- requires only one digital pin for communication
  5. Unique 64 bit ID burned into chip
  6. Multiple sensors can share one pin
  7. ±0.5°C Accuracy from -10°C to +85°C
  8. Temperature-limit alarm system
  9. Query time is less than 750ms
  10. Usable with 3.0V to 5.5V power/data. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Supply voltage (V) 3.0 – 5.5V
Temperature range -55 ~ +125 °C
Probe diameter 6mm
Probe length 50mm
Resolution 9 ~ 12 bit
Query time 750 msec
Cable Length (Meter) 1
Shipment Weight 0.08 kg
Shipment Dimensions 7 × 5 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes :

1 x 2 Channel isolated 5V 10A relay module with Optocoupler.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0414
52 Items

Specific References

EAN13
0414
