DC-5V-35V 5A PWM Motor Speed Controller Robotics Bangladesh
  • DC-5V-35V 5A PWM Motor Speed Controller Robotics Bangladesh

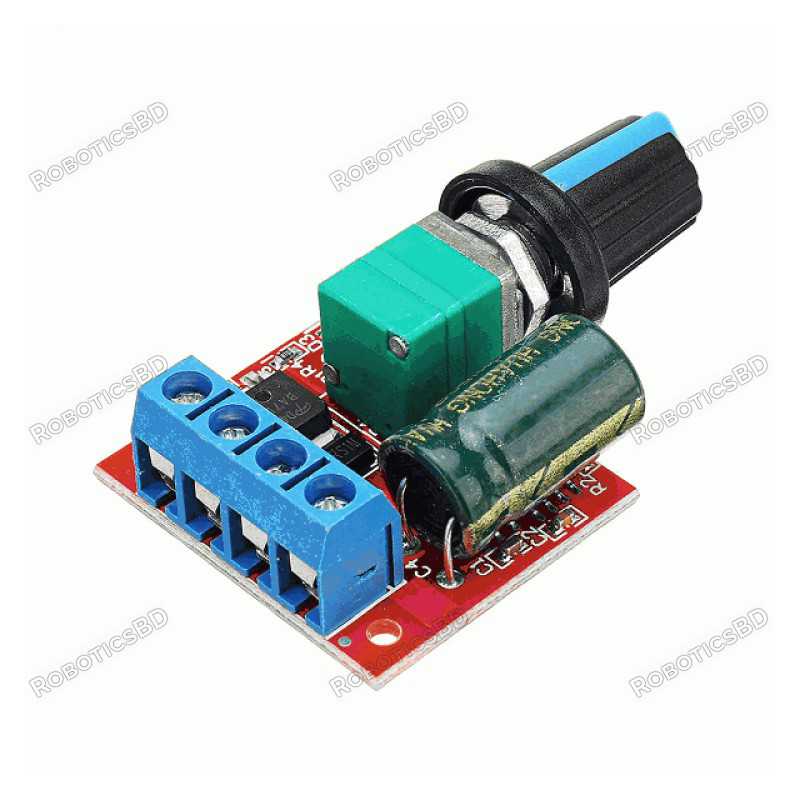

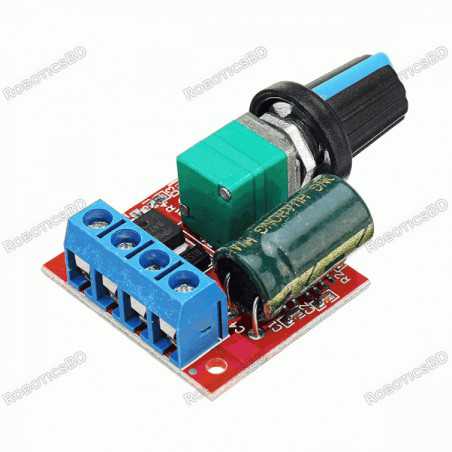

DC-5V-35V 5A PWM Motor Speed Controller

RBD-1724

  • Operating voltage: DC4.5V-35V
  • Output current: 0-5A
  • Output power: 90W (max)
  • PWM duty cycle: 1% -100%.
  • PWM frequency:20khz
  • Wide voltage DC motor speed controller.
BDT 220.00
BDT 220.00 BDT 220.00 BDT 220.00 BDT 220.00
Tax included Tax excluded Tax included Tax excluded
BDT 220.00 Tax excluded
BDT 220.00 Tax included
BDT 0.00 Tax
BDT 220.00 Tax excluded
BDT 0.00 Tax
BDT 220.00 Tax included
Quantity
In-Stock
74 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

3V 6V 12V 24V 35V PWM DC Motor Speed Regulator is a Mini Style DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Precautions:
  1. DC motor governor input is DC, can not directly connect to the AC (for example home 220V AC), otherwise, it will burn!
  2. DC power supply positive and negative terminals do not reverse, otherwise, the governor may be damaged.
  3. The motor can be positive or negative when the direction of operation and expectations do not match, you can adjust the line order to change the direction.
  4. Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes. RoboticsBD

Features:

  1. Mini DC 4.5-35V 5A PWM Motor Speed Controller.
  2. Wide voltage DC motor speed controller.
  3. Operating voltage: DC4.5V-35V
  4. Output current: 0-5A
  5. Output power: 90W (max)
  6. PWM duty cycle: 1% -100%.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating voltage DC 4.5V-35V
Output current 0-5A
Output power 90W (max)
Quiescent current 7uA (standby)
PWM duty cycle 1% -100%
PWM frequency 20khz
Dimension(mm) 30mm x 26mm x 14mm (Without Handle)
Shipment Weight 0.016 kg
Shipment Dimensions 10 × 6 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x DC-5V-35V 5A PWM Motor Speed Controller.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1724
74 Items

Specific References

EAN13
1724
Comments (0)
Grade
No customer reviews for the moment.
