14500 Lithium Battery Charger USB Micro-B Robotics Bangladesh
  • 14500 Lithium Battery Charger USB Micro-B Robotics Bangladesh

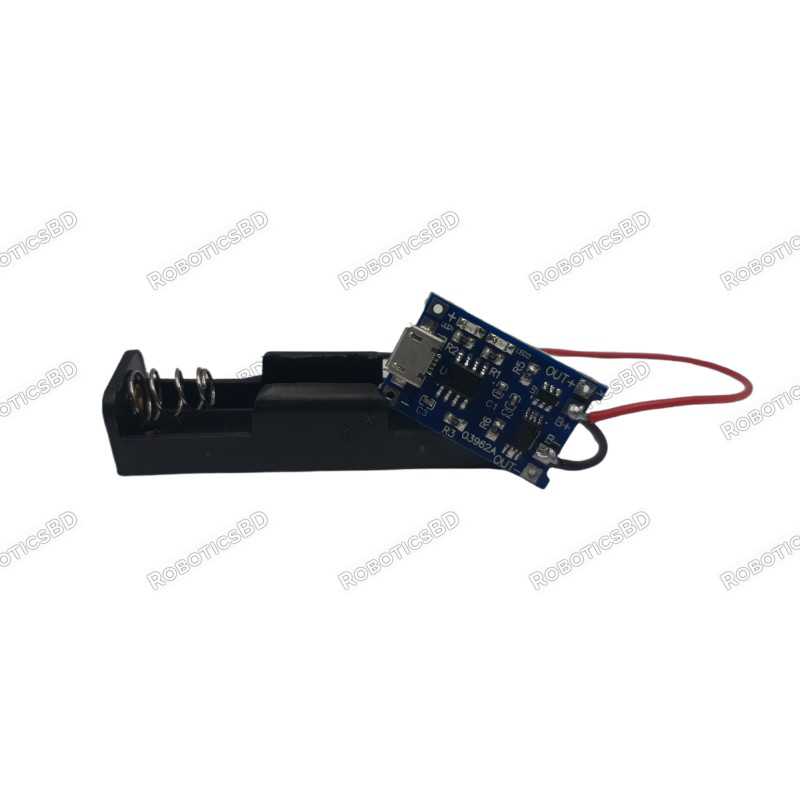

14500 Lithium Battery Charger USB Micro-B

RBD-1892

  • Input interface: micro USB.
  • Current Protection: Yes
  • Charging mode: Linear charging.
  • Current: 1A adjustable.
  • Charge precision: 1.5%.
  • Input voltage: 4.5V-5.5V.
  • Full charge voltage: 4.2V.
BDT 125.00
BDT 125.00 BDT 125.00 BDT 125.00 BDT 125.00
Tax included Tax excluded Tax included Tax excluded
BDT 125.00 Tax excluded
BDT 125.00 Tax included
BDT 0.00 Tax
BDT 125.00 Tax excluded
BDT 0.00 Tax
BDT 125.00 Tax included
Quantity
In-Stock
10 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This TP4056 1A Li-Ion Battery Charging Board Micro USB with Current Protection is a tiny module, perfect for charging single cell 3.7V 1 Ah or higher lithium-ion (Li-Ion) cells such as 16550s that don’t have their own protection circuit. Based on the TP4056 charger IC and DW01 battery protection IC this module will offer 1A charge current then cut off when finished.

Furthermore, when the battery voltage drops below 2.4V the protection IC will switch the load off to protect the cell from running at too low of a voltage – and also protects against over-voltage and reverse polarity connection (it will usually destroy itself instead of the battery) however please check you have it connected correctly the first time. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Using the module:
  1. Connect micro USB cable for power, or 5V DC to pads marked IN+ and IN- on the left-hand side of the module
  2. Connect cell to charge to B+/B- pads on the right-hand side of the module.
  3. A load (something for the battery to power) can be connected to the OUT+/OUT- pads on the right-hand side
  4. Important! Disconnect load when charging
  5. The red LED indicates charging in progress, green LED indicates charging has finished.
  6. Never charge your battery at a rate greater than 1C.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

NOTE:

1. Ampere meter can only be connected to a 5v input end of the module.
2. It is better than the charging current is 37% of the battery capacity. If you charge the battery of 1000mAh, a current of 400mAh is enough.
3. The connection wire should not be too thick.
4. Make sure the connect point is good.
5. If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-subtract the charging current to avoid burn damage to the chip.
6. NO Reverse polarity.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. Led indicator: red is charging Green is fully charged.
  2. Current Protection: Yes
  3. Inversed polarity: NO.
  4. Use mature charging chip TP4056 for simple peripheral circuits, good protection performance, and high charging accuracy.
  5. Fully machinery automated processing, all patch parts manufacturing.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Charging accuracy (%) 1.5
Charging method Linear
Full Charge Voltage (V) 4.2
Over-Current Protection (A) 3
Under-Voltage Protection (V) 2.5
Input Voltage (V) 4.5-5.5
Rated Power (W) 4.2
Operating Temperature (°C) -10 to 85
Length (mm) 25
Width (mm) 20
Height (mm) 6
Weight (gm) 3
Shipment Weight 0.007 kg
Shipment Dimensions 12 × 8 × 2.5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x 14500 Lithium Battery Charger
