TS832 RC832 Boscam 5.8G 32CH 250mW FPV Transmitter Receiver 7.
  • TS832 RC832 Boscam 5.8G 32CH 250mW FPV Transmitter Receiver 7.
  • Eachine TS832 RC832 Boscam 5.8G 32CH 600mW FPV Transmitter Receiver 7.4-16V
  • Eachine TS832 RC832 Boscam 5.8G 32CH 600mW FPV Transmitter Receiver 7.4-16V
  • Eachine TS832 RC832 Boscam 5.8G 32CH 600mW FPV Transmitter Receiver 7.4-16V
  • Eachine TS832 RC832 Boscam 5.8G 32CH 600mW FPV Transmitter Receiver 7.4-16V
  • Eachine TS832 RC832 Boscam 5.8G 32CH 600mW FPV Transmitter Receiver 7.4-16V

TS832 RC832 Boscam 5.8G 32CH 250mW FPV Transmitter Receiver 7.4-16V

RBD-0379

TS832 RC832 5.8G
32CH 250mW FPV Transmitter
Receiver 7.4-16V
BDT 6,300.00
BDT 6,300.00 BDT 6,300.00 BDT 6,300.00 BDT 6,300.00
Tax included Tax excluded Tax included Tax excluded
BDT 6,300.00 Tax excluded
BDT 6,300.00 Tax included
BDT 0.00 Tax
BDT 6,300.00 Tax excluded
BDT 0.00 Tax
BDT 6,300.00 Tax included
Quantity
In-Stock
10 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Eachine TS832 RC832 5.8G 32CH 250mW FPV Transmitter Receiver 7.4-16V


Description:

TS832 Transmitter
Item Name: TS832 transmitter
Antenna Gain: 2db
Frequency: 5.8G
Transmitting Power: 600mA
Power Input: 7.4-16V (3S Lipo suggested)
Video Format: NTSC / PAL Auto
Working Current: 220mA at 12V
Audio Bandwidth : 6.5M
Video Bandwidth: 8M
Weight: about 22g
Dimension: 54x 32x 10mm(excluding antenna)
Connector: transmitter module side RP-SMA jack, antenna RP-SMA plug

RC832 Receiver
Item Name: RC832 receiver
Antenna Gain: 2db
Antenna Impedance: 50Ω
Video Impedance: 75Ω
Video Format: NTSC/PAL auto
Power Input: 12V
Working Current: 200mA max
Dimension:  80x 65 x15mm
Weight: about 85g
Connector: receiver module side RP-SMA jack, antenna RP-SMA plug


Features:
32 channels choice to get the best transmitting quality.
Compatible with A,B,E and F frequency bands
Smaller size with lighter weight.
32 CH compatible to all FPV 5.8g receivers.
5.8G 600mW 32 Channels AV wireless FPV  transmitter
Super small 200mA current for 600mW wireless transmitter power.
600mW transmitter power assure 5KM distance in open area, 5-8
KM is available if work with the bigger gain antenna.

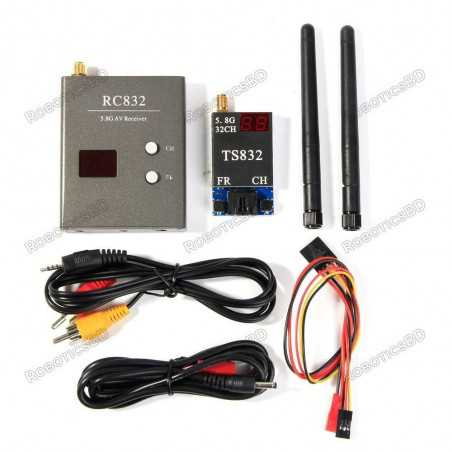

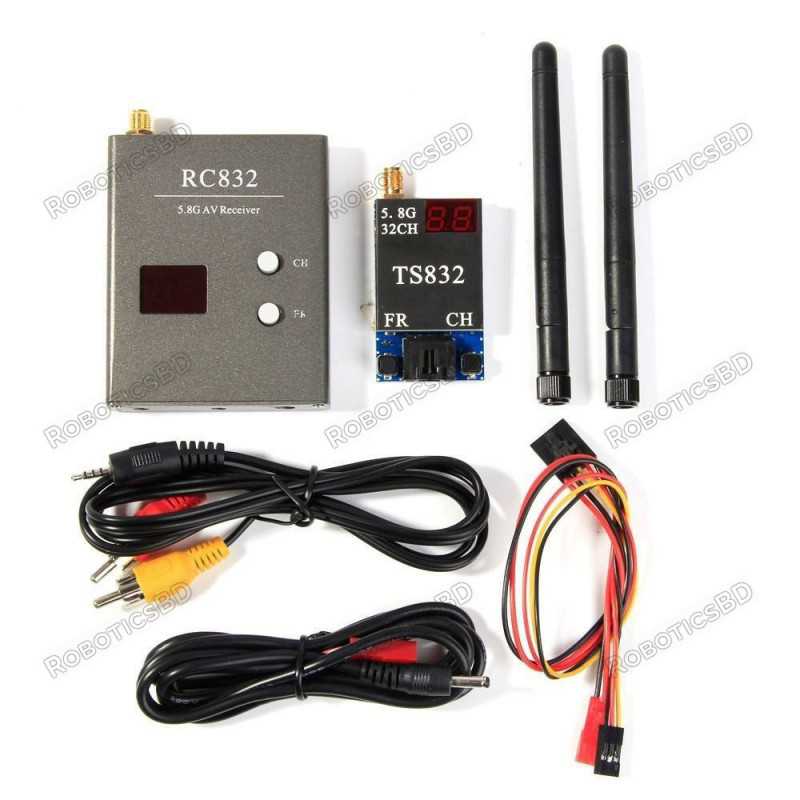

Package Included:
1 x TS832 transmitter
1 x RC832 receiver
3 x cable
2 x antenna
Product Details
RBD-0379
10 Items

Specific References

EAN13
0379
