Solid Round Slip Ring 6 Wire Robotics Bangladesh
  • Solid Round Slip Ring 6 Wire Robotics Bangladesh

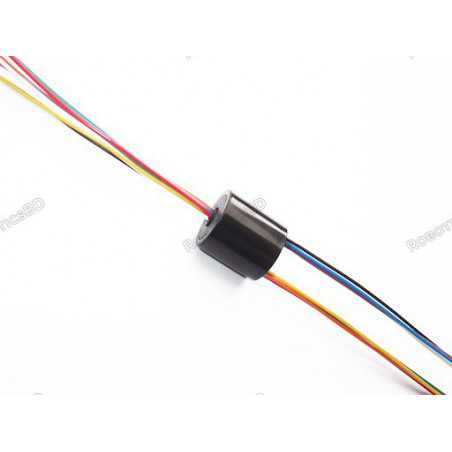

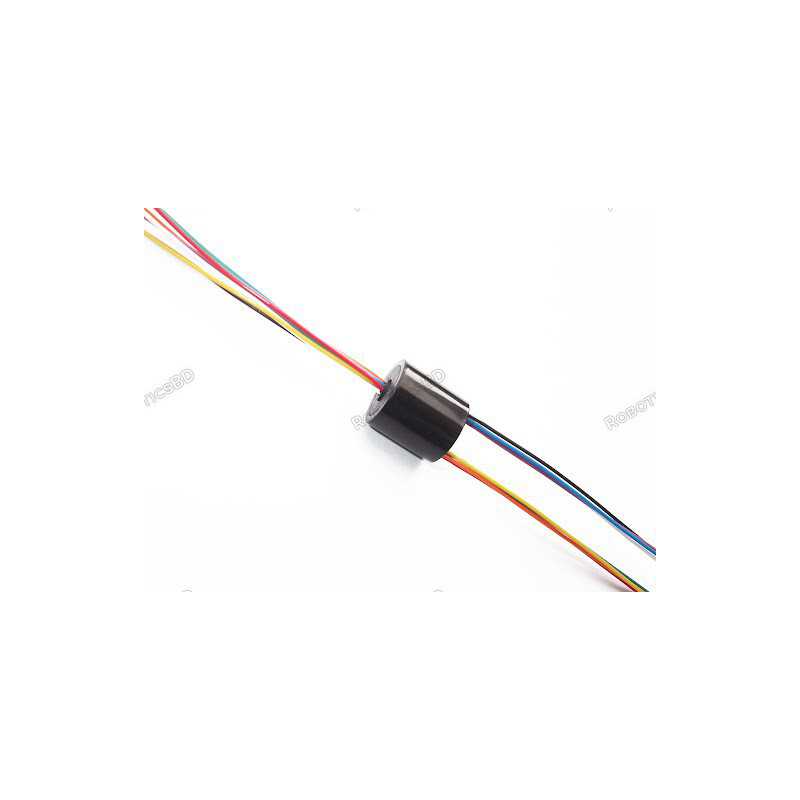

Solid Round Slip Ring 6 Wire

RBD-1679

  • Slip Ring
  • 6 Wire (1.5A)
  • max 240V

BDT 990.00
BDT 990.00 BDT 990.00 BDT 990.00 BDT 990.00
Tax included Tax excluded Tax included Tax excluded
BDT 990.00 Tax excluded
BDT 990.00 Tax included
BDT 0.00 Tax
BDT 990.00 Tax excluded
BDT 0.00 Tax
BDT 990.00 Tax included
Quantity
Last items in stock
3 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Capsule slip ring is a standard and off-the-shelf unit that uses gold contacts on the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections. It offers a low torque design with gold-to-gold contacts. This slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or electrical rotary joint.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Electrical test equipment
  2. Indexing tables
  3. Mini cable reels
  4. CCTV pan/tilt camera mounts
  5. Aviation, military, instrument, medical equipment.
  6. Min-type wire-rolling machine
  7. Closed-circuit control
  8. Laboratory equipment

Features:

  1. Seismic frequency 10-30HZ, double amplitude 0.8mm, frequency 30-200HZ, acceleration 2g, two cycles for a total of 30min
  2. Installation method Flange tightening, outer circle gluing
  3. Contact: Gold to gold
  4. Working Temperature: -40~+80℃
  5. Protection Level: IP51
  6. Life: 40 million turns (depends on specific working speed and environment)

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
External dimensions Ø12.6mm outer diameter, 11.9mm length
Housing material Black plastic
Number of channels and capacity 2-6 channels, each channel below 2A signal or power
Rated voltage 500VAC@50Hz
Adjacent circuit insulation resistance 500MΩ@ 500VDC
Wire Specifications AWG28 Silver Plated Teflon, UL○R
Contact Material Gold-Gold
Dynamic resistance fluctuation value ≤8mΩ
Working speed and life: 0-150rpm/40 million revolutions
Sealing class IP51
Working temperature -40℃~ +80℃
Minimum rotational torque ≤0.1N.M
Shipment Weight 0.015 kg
Shipment Dimensions 12 × 8 × 2.5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Dimensions:

Documentation:

  1. Datasheet

Package Includes:

1 x Slip Ring - 6 Wire

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1679
3 Items

Specific References

EAN13
1679
