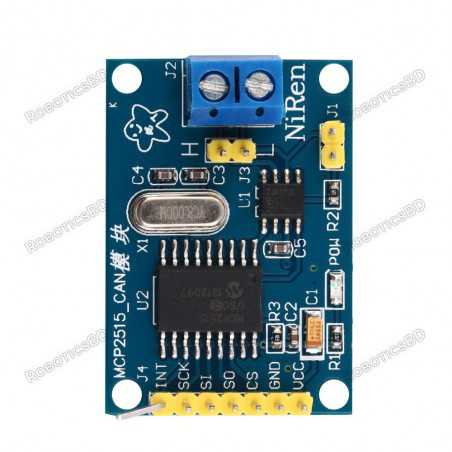

MCP2515 CAN Bus Module TJA1050 Receiver SPI Module For Arduino
  • MCP2515 CAN Bus Module TJA1050 Receiver SPI Module For Arduino
  • MCP2515 CAN Bus Module TJA1050 Receiver SPI Module For Arduino
  • MCP2515 CAN Bus Module TJA1050 Receiver SPI Module For Arduino
  • MCP2515 CAN Bus Module TJA1050 Receiver SPI Module For Arduino

MCP2515 CAN Bus Module TJA1050 Receiver SPI Module For Arduino

RBD-0397

  • Support CAN V2.0B technical standard, communication rate 1Mb / S.
  • Module 5V DC power supply, SPI interface protocol control
  • 0 to 8 bytes long data field.
  • 8MHZ crystal oscillator
  • 120Ω terminal resistance
  • Use High-speed CAN transceiver TJA1050
  • Impedance matching, guaranteed drive capability, long-distance data transmission, prevent signal radiation
  • The working current: typical 5mA, standby current 1 microamp. Except for the power indicator. RoboticsBD
BDT 410.00
BDT 410.00 BDT 410.00 BDT 410.00 BDT 410.00
Tax included Tax excluded Tax included Tax excluded
BDT 410.00 Tax excluded
BDT 410.00 Tax included
BDT 0.00 Tax
BDT 410.00 Tax excluded
BDT 0.00 Tax
BDT 410.00 Tax included
Quantity
In-Stock
29 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is MCP2515 CAN Module TJA1050 Receiver SPI 51 Single Chip Program Routine Arduino with this module, you will find easy to control any CAN Bus device by SPI interface with your MCU, such as  Arduino UNO and Compatible with Arduino based micro-controller projects. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

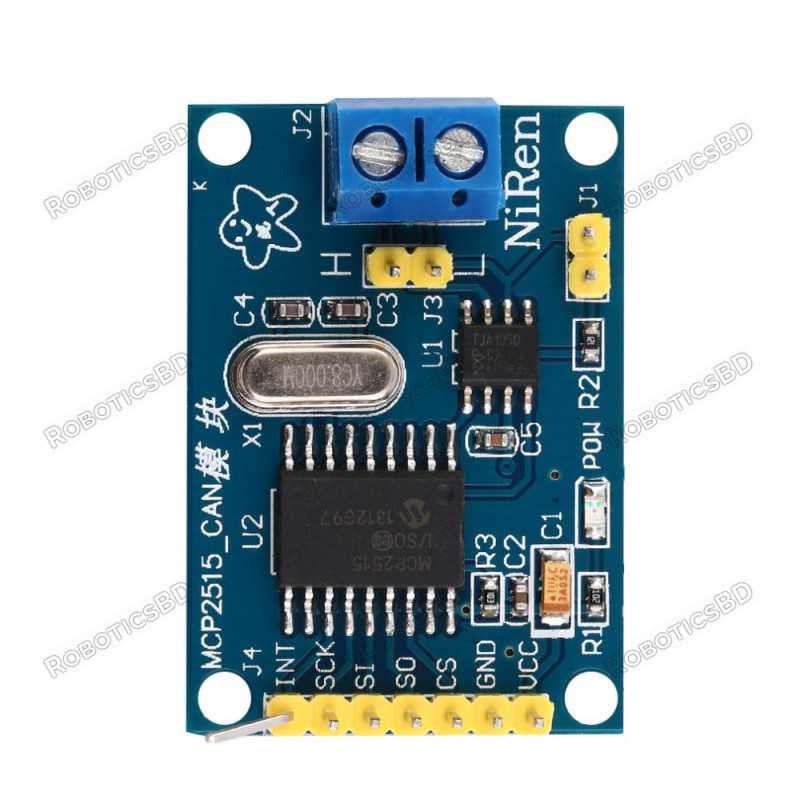

Pin Definitions

  1. VCC 5V power input pin
  2. GND power ground pin
  3. CS SPI SLAVE select pin (Active Pin)
  4. SO SPI master output slave input pin
  5. SCLK SPI clock pin
  6. INT MCP2515 interrupt pin
Interface
  1. J1 120R resistor terminal selection
  2. J2 CANH, CANL KF301-2P block output
  3. J3 CANH, CANL pin output
Schematic of MCP2515 CAN Module TJA1050 Receiver SPI 51
Schematic OF MCP2515

Features :

  1. Support CAN V2.0B technical standard, communication rate 1Mb / S.
  2. 0 to 8 bytes long data field.
  3. Use High-speed CAN transceiver TJA1050
  4. SPI control for expanding Multi CAN bus interface
  5. Use serial port could view the communication data
  6. With the independent key, LED indicator, Power indicator
  7. With power pin
  8. Standard frames, extended frames, and remote frames.
  9. Impedance matching, guaranteed drive capability, long-distance data transmission, prevent signal radiation
  10. Positioning screw hole center spacing 23 mm x 38 mm
  11. The working current: typical 5mA, standby current 1 microamp. Except for the power indicator. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Input Supply voltage (V) 5
Working current (mA) 5
Communication Rate (Mbps) 1
Data bits 8
Crystal oscillator (MHz) 8
Terminal Resistance (Ω) 120
Supports CAN V2.0B
Length (mm) 41
Width (mm) 28
Height (mm) 14.5
Weight (gm) 8
Shipment Weight 0.012 kg
Shipment Dimensions 6 × 4 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1x MCP2515 CAN Bus Module TJA1050 Receiver SPI Module For Arduino .
