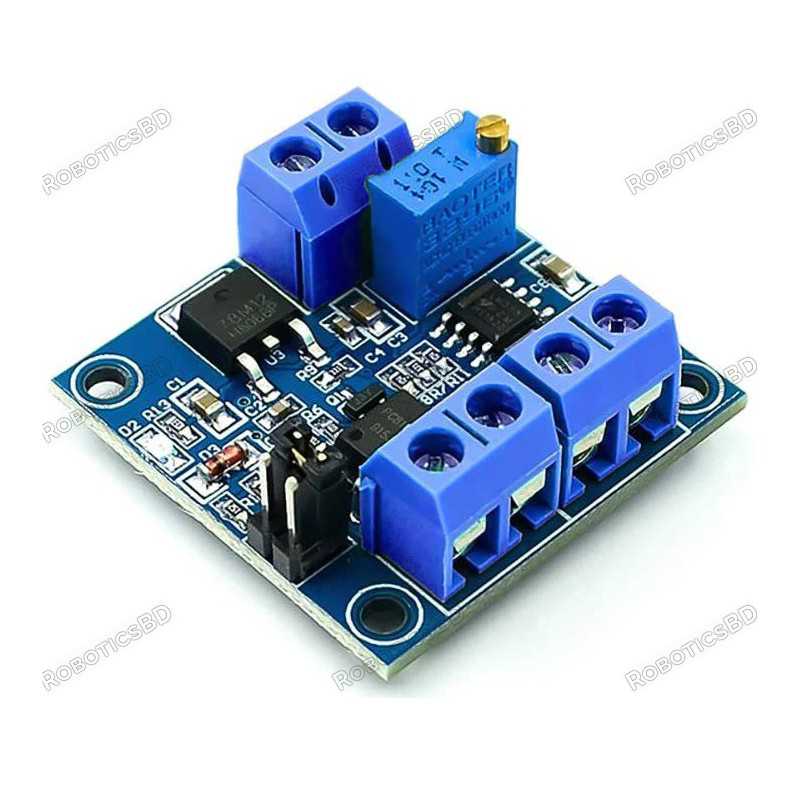

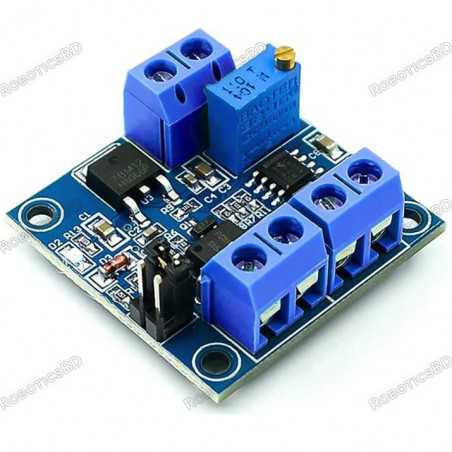

PWM to Voltage Converter Module 0-100% to-10V

RBD-1923

  • Conversion range: 0% -100% PWM to 0-10v voltage
  • PWM signal reception frequency range: 1KHz – 3KHz
  • Operating voltage: 12V – 30V DC
  • Allowable error: 5%
BDT 790.00
BDT 790.00 BDT 790.00 BDT 790.00 BDT 790.00
Tax included Tax excluded Tax included Tax excluded
BDT 790.00 Tax excluded
BDT 790.00 Tax included
BDT 0.00 Tax
BDT 790.00 Tax excluded
BDT 0.00 Tax
BDT 790.00 Tax included
Quantity
In-Stock
38 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This Module can convert PWM digital signals into 0 to 10V analog signals. This product can be used in the PLC or other industrial panel switch signal interface by adjusting the PWM duty ratios to adjust the output voltage. Module size is small, easy to apply in different places. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Pin Description:

  1. VCC -Working power 12-30V
  2. GND -Ground
  3. PWM – Input PWM signal positive
  4. GND -Input voltage ground
  5. VOUT-Output voltage: 0-10V
  6. GND – Output ground

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Application:

  • This product can be used in the PLC or other industrial panel switch signal interface by adjusting the PWM duty ratios to adjust the output voltage

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Using single-chip embedded technology
  2. Easy to operate, can be fine-tuned by potentiometer
  3. Select the PWM signal input level range through the short cap
  4. The module is small, easy to carry and use
  5. PWM signal input level range: The peak of 4.5V to 10V level. The short cap installs in ‘5V’. This level is used for the normal controllers or 5V MCU. Insert jumper in the inner side.
  6. PWM signal input level range: The peak of 12V to 24V level, so inserted in 24V. The short cap installs in ‘24V’. This level is used for normal PLC controllers. Insert jumper in the outer side.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Conversion range 0% -100% PWM to 0-10v voltage
PWM signal reception frequency range 1KHz – 3KHz
Operating voltage 12V – 30V DC
Allowable error 5%
Length (mm) 33
Width (mm) 33
Height (mm) 20
Weight (gm) 20
Shipment Weight 0.025 kg
Shipment Dimensions 4 × 4 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x PWM to Voltage 0-100% to-10V Converter Module
