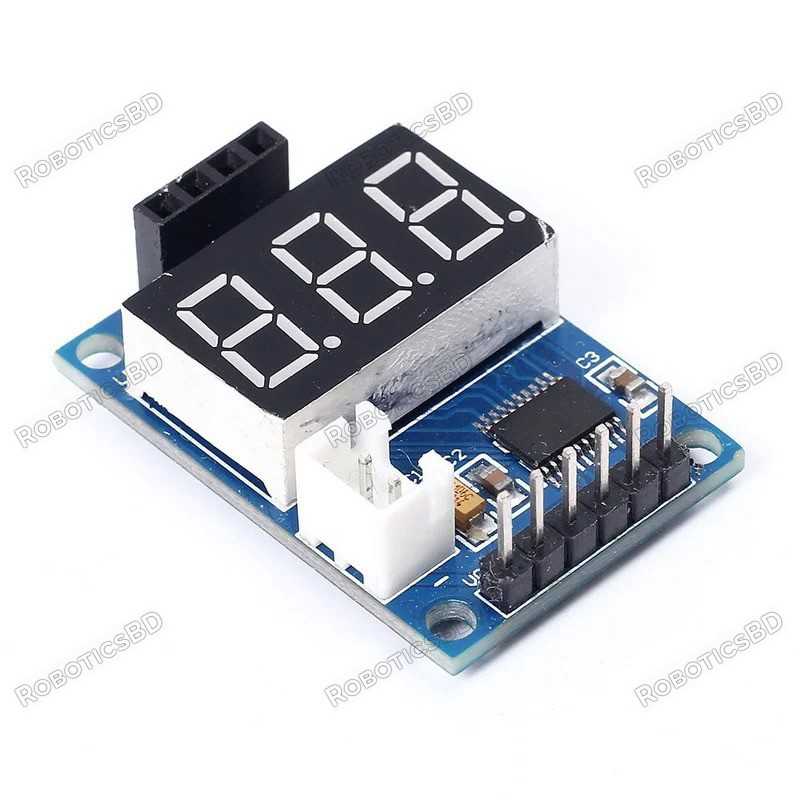

Digital Display for HC-SR04 Ultrasonic Distance Measurement Control Board adopts 8 bit MCU as the main control chip; it can be applied in distance measurement, testing HC-SR04 ultrasonic module performance. And it supports serial port display and digital tube display.. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Onboard STM8S103 high-performance microprocessor.
- With digital tube display.
- Serial port data output.
- Valid Measurement Distance: 3-400cm.
- Display Unit: cm.
- Max Error: 5V.
- Board Size: 36 x 25 x 12 mm.
- VCC, GND: 5V power interface.
- 2.54mm White Socket: 5V power interface.
- TX: module serial port transmits pin.
- RX: module serial port receive pin.
- NRST, SWIN: preset STM8 program download port.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Distance measurement and monitoring.
- Robotics and automation.
- Parking sensors and garage door openers.
- Security and surveillance systems.
- Industrial control and monitoring.
- Educational projects and experiments.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Model |
STM8S103 |
| Input Voltage (volt) |
5 |
| Unit of Display value |
cm |
| Valid Measurement Distance (cm) |
3 – 400 |
| Shipment Weight |
0.083 kg |
| Shipment Dimensions |
8 × 7 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
Using Introduction:
1. The measurement distance can be displayed via a digital tube and serial port.
Digital Tube Display: directly plug in the ultrasonic module, connect 5V power.
2. Serial Port: plug-in ultrasonic module, VCC, TX, RX, GND respectively connects 5V, RX, TX, GND of USB to TTL module; serial port communication baud rate 9600, output format “D:XXXrn”; XXX represents distance, unit is cm.
Notice:
1. When measuring the distance, the area of a measured object should be no less than 0.5 square meters, and it should be smooth and has strong reflectivity; otherwise, it will affect the test result.
2. Valid Measurement Distance: 3-400cm; if longer than this range, it will lead to incorrect data or 000 display.
This Package does not include the HC-SR04 ultrasonic sensor; to buy this sensor Click here.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x Digital Display for HC-SR04 Ultrasonic Distance Measurement Control Board
