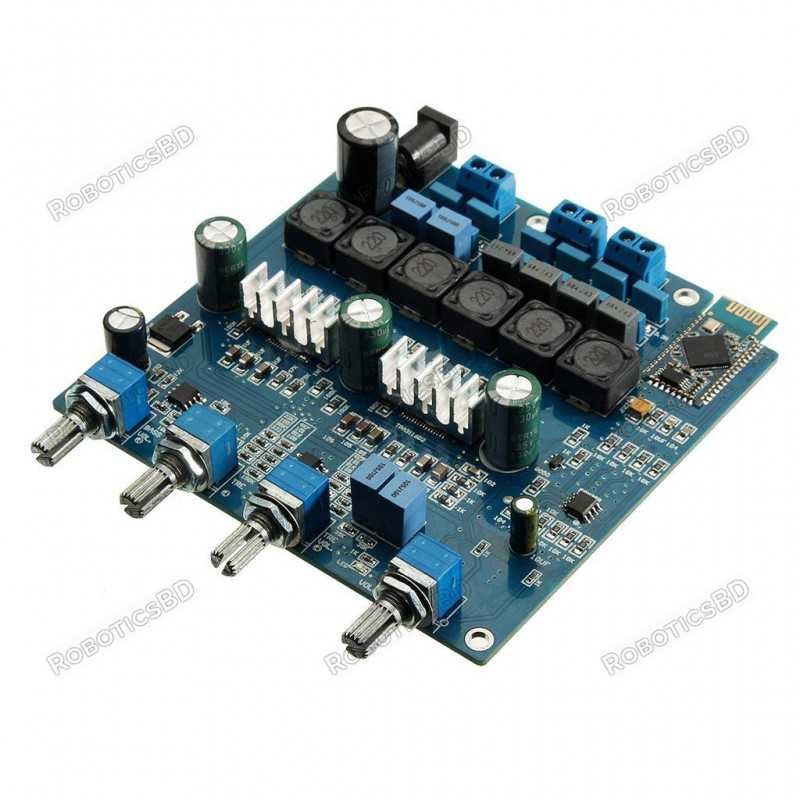

TPA3116 2.1 50Wx2+100W Bluetooth CSR4.0 Class D Power Amplifier

RBD-2232

  • Working mode: Class D
  • Operating voltage: DC18V to DC24V
  • Rated output power: 100W + 2 x 50W
  • Quiescent current: 60mA
  • Work efficiency: 90%
BDT 2,850.00
BDT 2,850.00 BDT 2,850.00 BDT 2,850.00 BDT 2,850.00
Tax included Tax excluded Tax included Tax excluded
BDT 2,850.00 Tax excluded
BDT 2,850.00 Tax included
BDT 0.00 Tax
BDT 2,850.00 Tax excluded
BDT 0.00 Tax
BDT 2,850.00 Tax included
Quantity
In-Stock
30 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

TPA3116 2.1 50Wx2+100W Bluetooth CSR4.0 Class D Power Amplifier uses the original Coupling capacitance From Germany Siemens 1UF. The main filter capacitor electrolytic capacitors imported from Japan to ensure strong support for a steady stream of power. Resistance adopts five rings metal resistance, the main circuit employs a precision of 1% five-ring metal film resister, ensuring the machine a good signal to noise ratio.

An amplifier has a PCB of 1.6mm thick double-sided sheet, 2.0 oz copper thickness, HASL whole process to ensure that high or low current a good passing performance. PCB-class quality. Fully enclosed dust-proof potentiometer with more stable performance is more durable than ordinary potentiometer!. All-shielded audio-specific high-current inductors, to ensure crisp and powerful sound.. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Bluetooth CSR4.0 connectivity for wireless audio streaming.
  2. Class D amplifier technology for high efficiency and low heat dissipation.
  3. Two stereo channels (50W x 2) and one subwoofer channel (100W).
  4. 24V DC power supply input.
  5. Built-in protection circuitry for overvoltage, undervoltage, overcurrent, and thermal protection.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Home theater systems.
  2. DIY audio projects.
  3. Outdoor speakers.
  4. Desktop speakers.
  5. Gaming setups.
  6. Car audio systems.
  7. Soundbars.
  8. Multimedia speakers.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Working Mode Class D
Operating Voltage DC 18V to 24V
Rated Output Power 100W + 2x50W
Quiescent Current 60mA
Work Efficiency 90%
Frequency Response 20Hz to 20KHz
Maximum Output Current 3A
Material PCB
Dimensions 11.2mm x 10.3mm x 2mm
Weight 111g
Shipment Weight 0.2 kg
Shipment Dimensions 15cm x 10cm x 5cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x TPA3116 2.1 50Wx2+100W Bluetooth CSR4.0 Class D Power Amplifier
