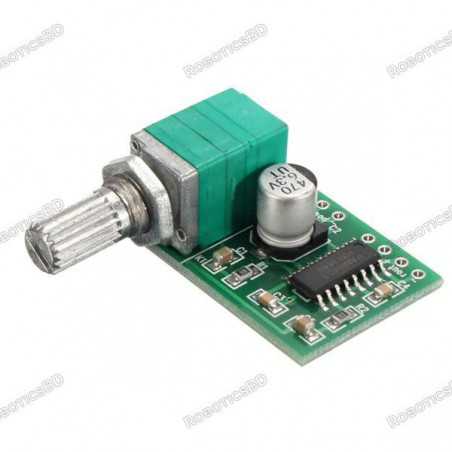

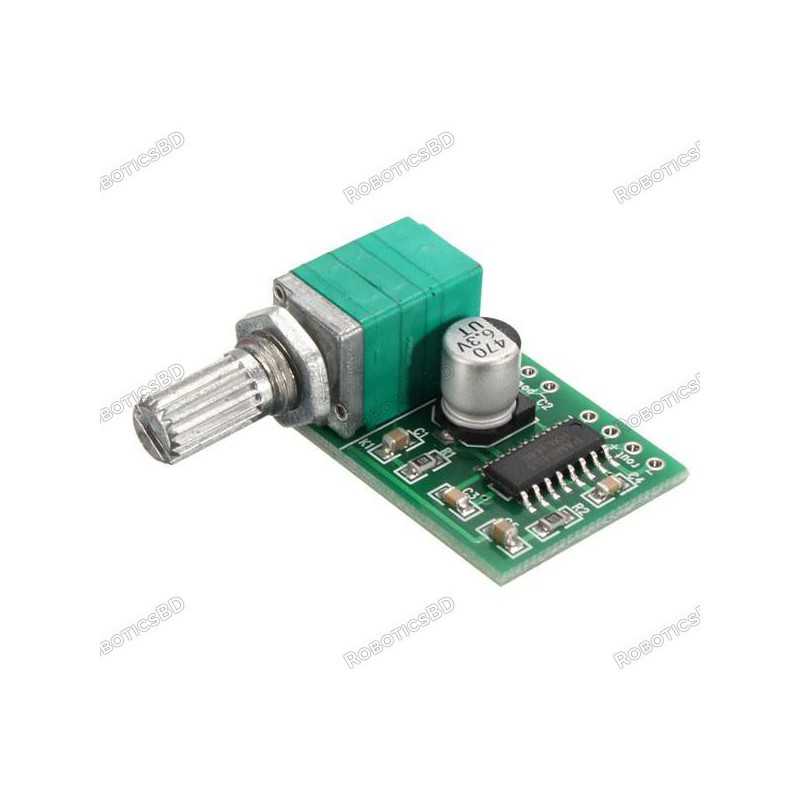

PAM8403 Audio Amplifier Module

RBD-1324

  • Operating voltage: 2.5V-5.5V
  • Maximum output power: 3W x 2
  • PCB size is about: length 30mm width 22mm overall height after installed is about 16mm
  • Built with switch Potentiometer, can adjust the volume & control power switch freely!
  • Flexible assembly usage.
BDT 140.00
BDT 140.00 BDT 140.00 BDT 140.00 BDT 140.00
Tax included Tax excluded Tax included Tax excluded
BDT 140.00 Tax excluded
BDT 140.00 Tax included
BDT 0.00 Tax
BDT 140.00 Tax excluded
BDT 0.00 Tax
BDT 140.00 Tax included
Quantity
In-Stock
63 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is PAM8403 Mini 5V Digital Amplifier Board With Switch Potentiometer. PAM8403 is a small digital amplifier chip, high-definition sound quality highlights the advantages of digital chips, the circuit using the most reasonable peripheral configuration, power supply filtering is upgraded to 470uf (some sellers are less did not even 100uf capacitance). RoboticsBD

1.6mm glass sheet, the real amplifier board did the most detailed, high-fidelity sound output 3W + 3W, is a rare good product enthusiasts amplifier, potentiometer using the original anti-meter body, potentiometer with the switch can cut off the power supply directly counterclockwise.

Usage:
Suitable for battery or portable electronics products, suitable for long time steady usage. RoboticsBD

Note!!!
Please make sure the power supply is not more than 5.5V and please don’t do reverse polarity for “+” and “-“, or else, it will burn the board.

Plate size: about 22mm 30mm wide / depth/height 16mm excluding potentiometer handle bulge (dimension) boards are finished welding test board, the above potentiometer is with switch, can control the volume and power switch, no more than that 5.5 V, positive and negative power supply voltage does not do wrong, otherwise the chip has the potential for damage. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. PCB size is about: length 30mm width 22mm overall height after installed is about 16mm
  2. Built with switch Potentiometer, can adjust the volume & control power switch freely!
  3. Flexible assembly usage.

Technical Details:

  1. PAM8403 Amplifier Module
  2. Dimension: L 29.5mm x W 20.2mm x H 15mm (not include Potentiometer rod size)
  3. Operation Voltage: 2.5V~5V DC (can be powered by USB)
  4. Chip: PAM8403
  5. Power filtering is upgraded to 470 uf
  6. Potentiometer life can be up to 15 years
  7. Potentiometer includes on/off switch
  8. Superior Low Noise
  9. Efficiency up to 90%
  10. Short Circuit Protection
  11. Thermal Shutdown

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating Voltage (VDC) 2.5 ~ 5.5
Maximum Output Power(W) 3Wx2
Length (mm) 30
Width (mm) 20
Weight (gm) 8
Shipment Weight 0.012 kg
Shipment Dimensions 5 × 4 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation :

  1. PAM8403

Package Includes :

1 x PAM8403 Audio Amplifier Module.
