LM358 Dual Operational Amplifiers Op-Amp DIP8 Robotics Bangladesh
  • LM358 Dual Operational Amplifiers Op-Amp DIP8 Robotics Bangladesh
  • LM358P Dual Operational Amplifiers Op-Amp DIP8
  • LM358 Dual Operational Amplifiers Op-Amp DIP8 Robotics Bangladesh

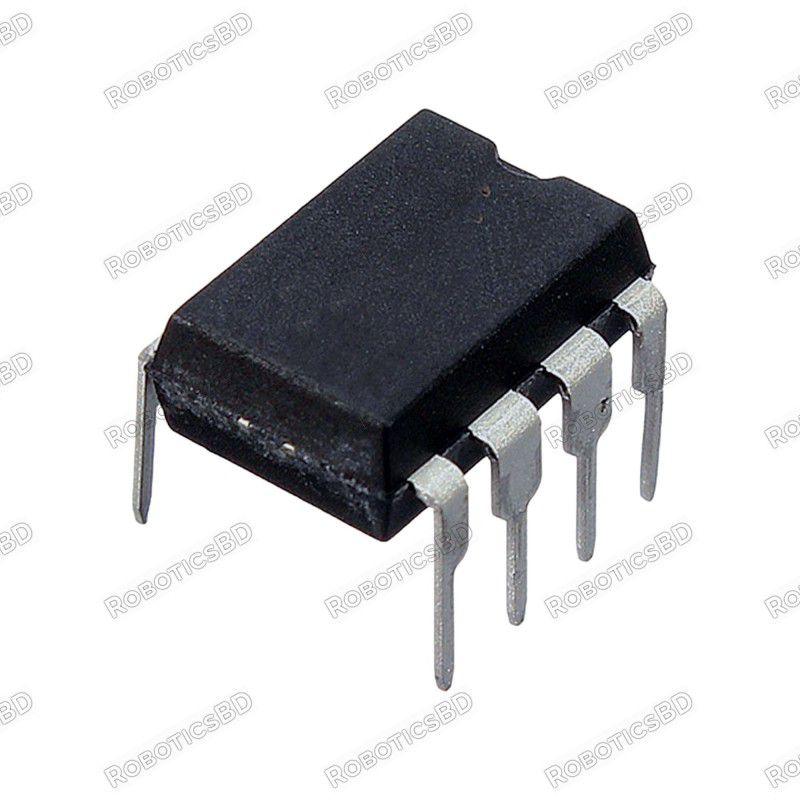

LM358 Dual Operational Amplifiers Op-Amp DIP8

RBD-1013

  • Wide supply voltage ranges
  • Low supply-current drain independent of supply voltage
  • Common-mode input voltage range includes ground, allowing direct sensing near ground
  • Low input bias and offset parameters
  • Internal frequency compensation
BDT 20.00
BDT 20.00 BDT 20.00 BDT 20.00 BDT 20.00
Tax included Tax excluded Tax included Tax excluded
BDT 20.00 Tax excluded
BDT 20.00 Tax included
BDT 0.00 Tax
BDT 20.00 Tax excluded
BDT 0.00 Tax
BDT 20.00 Tax included
Quantity
In-Stock
343 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

These devices consist of two independent, high-gain, frequency-compensated operational amplifiers designed to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3 V to 32 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Note: Product may vary from images shown in terms of brand name according to the availability. RoboticsBD

Features:

  1. Wide supply voltage ranges
  2. Low supply-current drain independent of supply voltage
  3. Common-mode input voltage range includes ground, allowing direct sensing near ground
  4. Low input bias and offset parameters
  5. Internal frequency compensation
  6. Applications: Sensing & Instrumentation, Communications & Networking, Audio.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Package/Case PDIP-8
Mounting Type Through Hole
Amplifier Type High Gain Amplifier
Minimum Supply Voltage (V) 3
Maximum Supply Voltage (V) 32
Number of Channel 2
Output Current Per Channel 30 mA
Input Bias Current (Ib) 150 nA
Gain Bandwidth Product (GBP) 700 kHz
Input Offset Voltage (Vos) 7 mV
Slew Rate (SR) 0.3 V/us
CMRR (dB) 65 ~ 80
Voltage Gain (dB) 100
Technology Bipolar
Max Dual Supply Voltage ±16 V
Min Dual Supply Voltage (V) ± 1.5
Max. Operating Current (mA) 0.35
Operating Temperature Range (°C) 0 to 70
Dimensions (mm) LxWxH 9.81 x 6.35 x 4.57
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x LM358P Dual Operational Amplifiers Op-Amp DIP8
