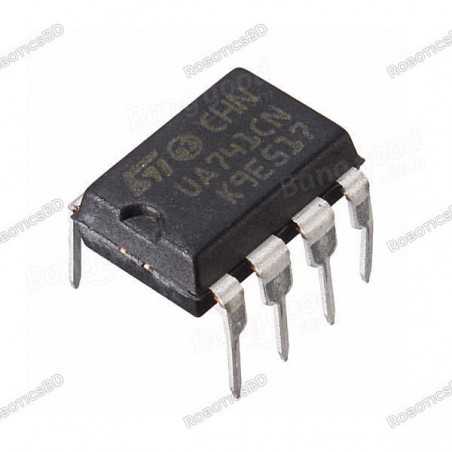

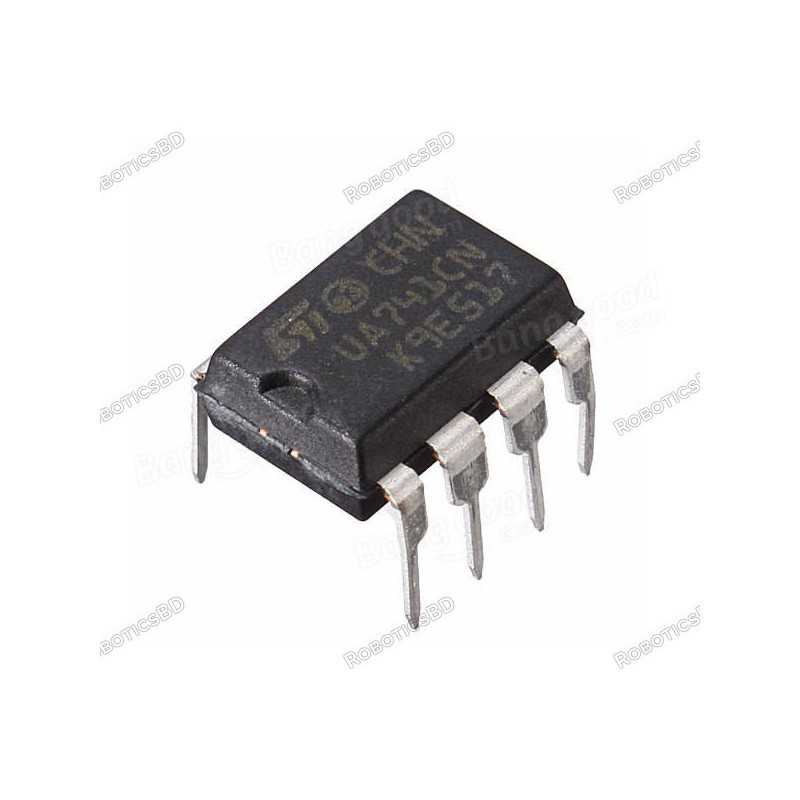

UA741CN Operational Amplifier
  • UA741CN Operational Amplifier

UA741CN Operational Amplifier

RBD-1025

  • Overload protection on the input and output
  • No latch-up when the common mode range is exceeded
  • Applications: Audio, Communications & Networking, Signal Processing
  • Current Stock: 741CN
BDT 35.00 BDT 35.00 BDT 35.00 BDT 35.00 BDT 35.00
BDT 30.00 Save BDT 5.00
BDT 30.00 BDT 30.00 BDT 30.00 BDT 30.00
Tax included Tax excluded Tax included Tax excluded
BDT 35.00 BDT 30.00 Tax excluded
BDT 35.00 BDT 30.00 Tax included
BDT 0.00 BDT 0.00 Tax
BDT 35.00 BDT 30.00 Tax excluded
BDT 0.00 BDT 0.00 Tax
BDT 35.00 BDT 30.00 Tax included
Quantity
In-Stock
17 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The 741 is a type of operational amplifier (Op-Amp), an integrated circuit that is commonly used as a voltage amplifier. It is a versatile device that has been widely used in many different applications, such as signal processing, audio amplification, and control systems. The 741 op-amp was introduced in the late 1960s and remains popular today due to its reliability and ease of use. It is available in a wide range of packages, including the DIP (dual in-line package) format, and is relatively inexpensive, making it an attractive choice for many different applications. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Application:

  1. Amplification: 741 Op-Amp can be used as a non-inverting amplifier to amplify the input signal.

  2. Comparator: 741 Op-Amp can be used as a comparator to compare two input voltages and produce a high or low output voltage based on the comparison result.

  3. Integrator: 741 Op-Amp can be used as an integrator to integrate the input signal over time.

  4. Differentiator: 741 Op-Amp can be used as a differentiator to differentiate the input signal to get its rate of change.

  5. Oscillator: 741 Op-Amp can be used as a oscillator to generate a sinusoidal waveform by using the positive feedback.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Overload protection on the input and output
  2. No latch-up when the common-mode range is exceeded
  3. Applications: Audio, Communications & Networking, Signal Processing

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Package/Case PDIP-8
Mounting Type Through Hole
Amplifier Type General Purpose Amplifier
Number of Channel 1
Output Current Per Channel 25 mA
Input Bias Current (Ib) 0.5 uA
Gain Bandwidth Product (GBP) 1 MHz
Input Offset Voltage (Vos) 6 mV
Slew Rate (SR) 0.5 V/us
CMRR (dB) 70
Voltage Gain (dB) 106.02
Technology Bipolar
Max Dual Supply Voltage ±18 V
Min Dual Supply Voltage (V) ± 5
Max. Operating Current (mA) 2.8
Operating Temperature Range (°C) 0 to 70
Dimensions (mm) LxWxH 9.27 x 6.35 x 3.3
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x LM741CN PDIP-8 Operational Amplifier IC (Pack of 3)
