ULN2803A Driver IC Robotics Bangladesh
  • ULN2803A Driver IC Robotics Bangladesh
  • ULN2803A Driver IC Robotics Bangladesh

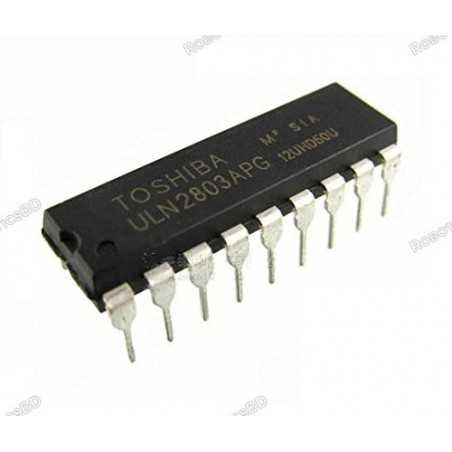

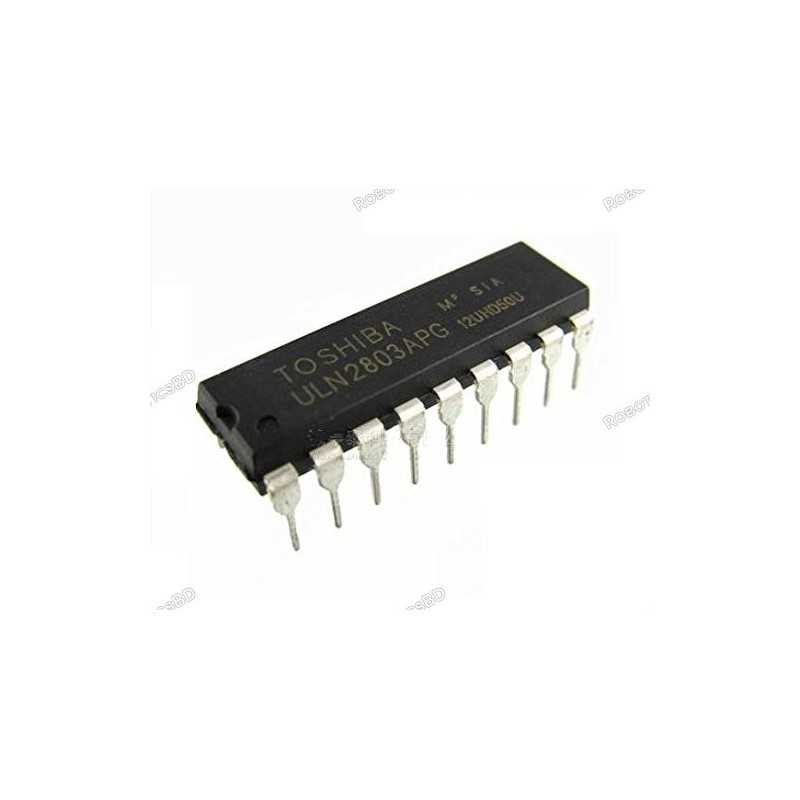

ULN2803A Driver IC

RBD-1425

  • IC Name: ULN2803A
  • Package/Case: DIP-18
BDT 30.00
BDT 30.00 BDT 30.00 BDT 30.00 BDT 30.00
Tax included Tax excluded Tax included Tax excluded
BDT 30.00 Tax excluded
BDT 30.00 Tax included
BDT 0.00 Tax
BDT 30.00 Tax excluded
BDT 0.00 Tax
BDT 30.00 Tax included
Quantity
In-Stock
40 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The ULN2801A, ULN2802A, ULN2803A and ULN2804A each contain eight Darlington transistors with common emitters and integral suppression diodes for inductive loads. Each Darlington features a peak load current rating of 600 mA (500 mA continuous) and can withstand at least 50 V in the OFF state. Outputs may be paralleled for higher current capability. Four versions are available to simplify interfacing to standard logic families: the ULN2801A is designed for general purpose applications with a current limit resistor; the ULN2802A has a 10.5 kΩ input resistor and Zener for 14-25 V PMOS; the ULN2803A has a 2.7 kΩ input resistor for 5 V TTL and CMOS; the ULN2804A has a 10.5 kΩ input resistor for 6-15 V CMOS. RoboticsBD
All types are supplied in an 18-lead plastic DIP with a copper lead form and feature the convenient input-opposite-output pinout to simplify board layout. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Relay Drivers
  2. Hammer Drivers
  3.  Lamp Drivers
  4. Display Drivers (LED and Gas Discharge)
  5. Line Drivers
  6. Logic Buffers
  7. Stepper Motors
  8. IP Camera
  9. HVAC Valve and LED Dot Matrix

Features

  1. Eight Darlington transistors with common emitters
  2. Output current to 500 mA
  3. Output voltage to 50 V
  4. Integral suppression diodes
  5. Versions for all popular logic families
  6. Output can be paralleled
  7. Inputs pinned opposite outputs to simplify board layout

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Package/Case PDIP-18
Minimum Supply Voltage (V) 3.3
Maximum Supply Voltage (V) 5
Product Type ULN2803A Darlington Transistor Arrays
Operating Temperature Range (°C) –55° C to +125° C
Mounting Type Through Hole
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x ULN2803A Driver IC.
