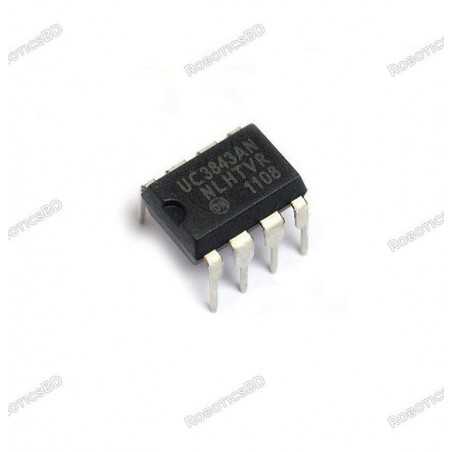

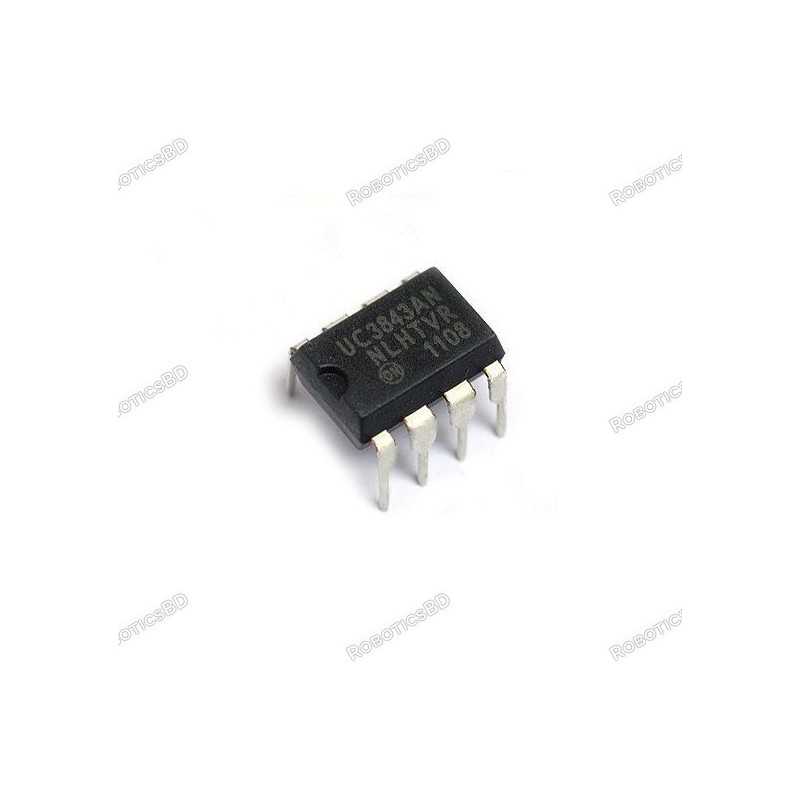

UC3843 PWM Robotics Bangladesh
  • UC3843 PWM Robotics Bangladesh

UC3843 PWM

RBD-1434

  • IC Name: UC3843
  • Package/Case: DIP-8
BDT 15.00
BDT 15.00 BDT 15.00 BDT 15.00 BDT 15.00
Tax included Tax excluded Tax included Tax excluded
BDT 15.00 Tax excluded
BDT 15.00 Tax included
BDT 0.00 Tax
BDT 15.00 Tax excluded
BDT 0.00 Tax
BDT 15.00 Tax included
Quantity
In-Stock
7 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The UC3842/UC3843/UC3844/UC3845 are fixed frequencycurrent-mode PWM controller. They are specially designed for Off-Line and DC to DC converter applications with minimum external components. These integrated circuits feature a trimmed oscillator for precise duty cycle control, a temperature compensated reference, high gain error amplifier, current sensing comparator and a high current totempole output for driving a Power MOSFET. The UC3842 and UC3844 have UVLO thresholds of 16V (on) and 10V (off). The UC3843 and UC3845 are 8.5V(on) and 7.9V (off). The UC3842 and UC3843 can operate within 100% duty cycle. The UC3844 and UC3845 can operate with 50% duty cycle. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Optimized for OFF-LINE and DC to DC converters
  2. Low Start-Up Current 1mA
  3. Automatic Feed Forward Compensation
  4. Pulse-by-pulse current limiting
  5. Enhanced load response characteristics
  6. Under-voltage lockout with hysteresis
  7. Double pulse suppression
  8. High current totem pole output
  9. Internally trimmed bandgap reference

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Package/Case PDIP-8
Minimum Supply Voltage (V) 3
Maximum Supply Voltage (V) 30
Product Type UC3842/UC3843/UC3844/UC3845 SMPS Controller
Operating Temperature Range (°C) –55° C to +125° C
Mounting Type Through Hole
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x UC3843 PWM

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1434
7 Items

Specific References

EAN13
1434
