MT8870DE Robotics Bangladesh
  • MT8870DE Robotics Bangladesh

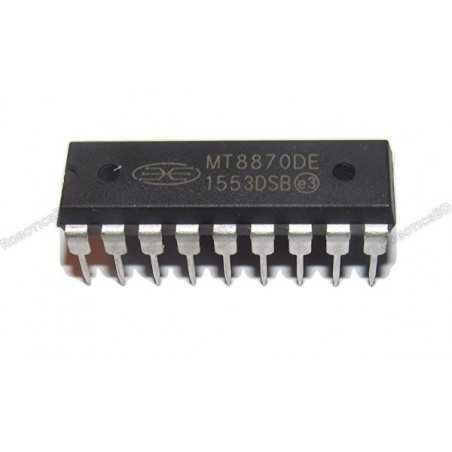

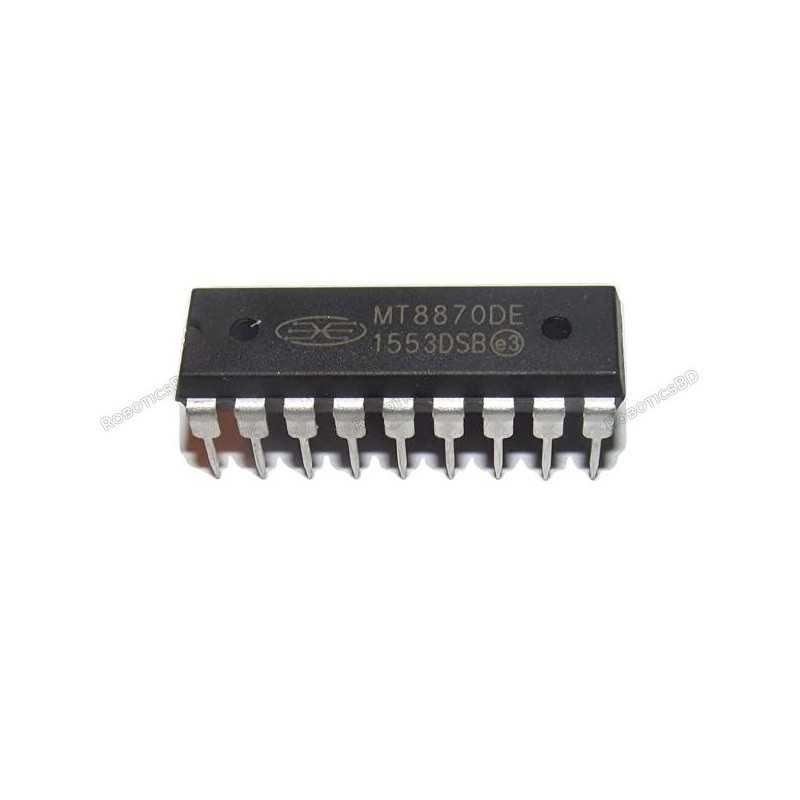

MT8870DE

RBD-1432

  • IC Name: MT8870DE
  • Package/Case: DIP-18
BDT 70.00
BDT 70.00 BDT 70.00 BDT 70.00 BDT 70.00
Tax included Tax excluded Tax included Tax excluded
BDT 70.00 Tax excluded
BDT 70.00 Tax included
BDT 0.00 Tax
BDT 70.00 Tax excluded
BDT 0.00 Tax
BDT 70.00 Tax included
Quantity
In-Stock
28 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The MT8870D/MT8870D-1 is a complete DTMF receiver integrating both the bandsplit filter and digital decoder functions. The filter section uses switched capacitor techniques for high and low group filters; the decoder uses digital counting techniques to detect and decode all 16 DTMF tone-pairs into a 4-bit code. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Receiver system for British Telecom (BT) or CEPT Spec (MT8870D-1)
  2. Paging systems
  3. Repeater systems/mobile radio
  4. Credit card systems
  5. Remote control
  6. Personal computers
  7. Telephone answering machine

Features:

  1. Complete DTMF Receiver
  2. Low power consumption
  3. Internal gain setting amplifier
  4. Adjustable guard time
  5. Central office quality
  6. Power-down mode
  7. Inhibit mode. RoboticsBD
  8. Backward compatible with MT8870C/MT8870C-1

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Package/Case PDIP-18
Minimum Supply Voltage (V) 5
Maximum Supply Voltage (V) 5
Product Type MT8870DE CMOS Low Power DTMF DECODER Receiver IC
Operating Temperature Range (°C) –55° C to +125° C
Mounting Type Through Hole
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x MT8870DE
