This USB to UART/ESP8266 Adapter Programmer for ESP-01 WiFi Modules with CH340G Chip converts the signal from a USB interface to a PC / laptop to match a serial module ESP8266.RoboticsBD
This converter module has CH340 chip which is reliable and with high performance. It is compatible with most Windows systems. The adapter features integrated capacitors to maintain a current of 1000 μF.

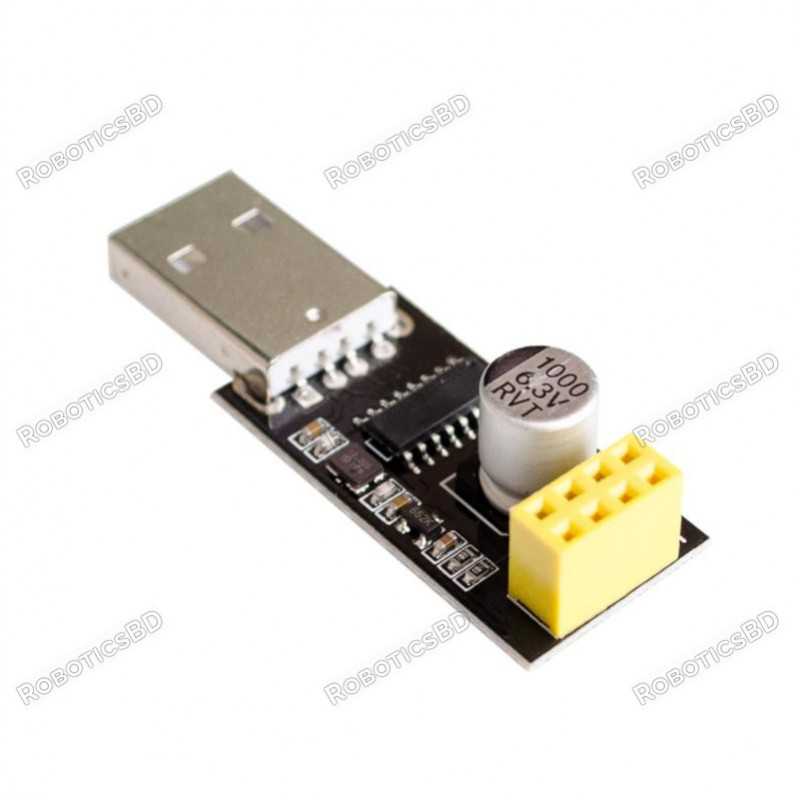

USB to ESP-01 adapter module has CH340G USB to TTL driver IC onboard, so you can easily use your computer to do ESP-01 functional debugging. ESP-01 serial Wi-Fi module can be directly plugged into the yellow pin header without any connecting wire. RoboticsBD
USB to UART/ESP8266 Programmer used for an ESP-01 module with the ESP8266 chip. It has CH340G USB to TTL driver IC onboard, so you can easily use your computer to do with ESP-01. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Note: The package does not include any ESP8266 Wifi Module
Features :
- Using CH340 turns serial port chip for stable performance and compatibility.
- Supports all basic windows versions.
- The adapter plate integrated 1000μF solid capacitors to ensure the current supply
- The power supply will not be a problem to make WIFI module crashes unresponsive.
- Using 3225 SMD crystal oscillator, improve the stability of serial work, on a beautiful and tall.
- The interposer board is specifically designed for ESP8266 The USB Turn serial port. RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Operating Voltage (VDC) |
4.5 ~ 5.5 |
| Operating Current (A) |
0.3 |
| Driver IC |
CH340G |
| Logic Input (V) |
3.3 |
| Length (mm) |
50 |
| Width (mm) |
18 |
| Height (mm) |
14 |
| Weight (gm) |
6 |
| Shipment Weight |
0.01 kg |
| Shipment Dimensions |
6 × 3 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes :
1 x CH340 USB to ESP8266 Serial Wireless Wifi Module Adapter Board CH340 ESP-01 Development Microcontroller For Arduino.
