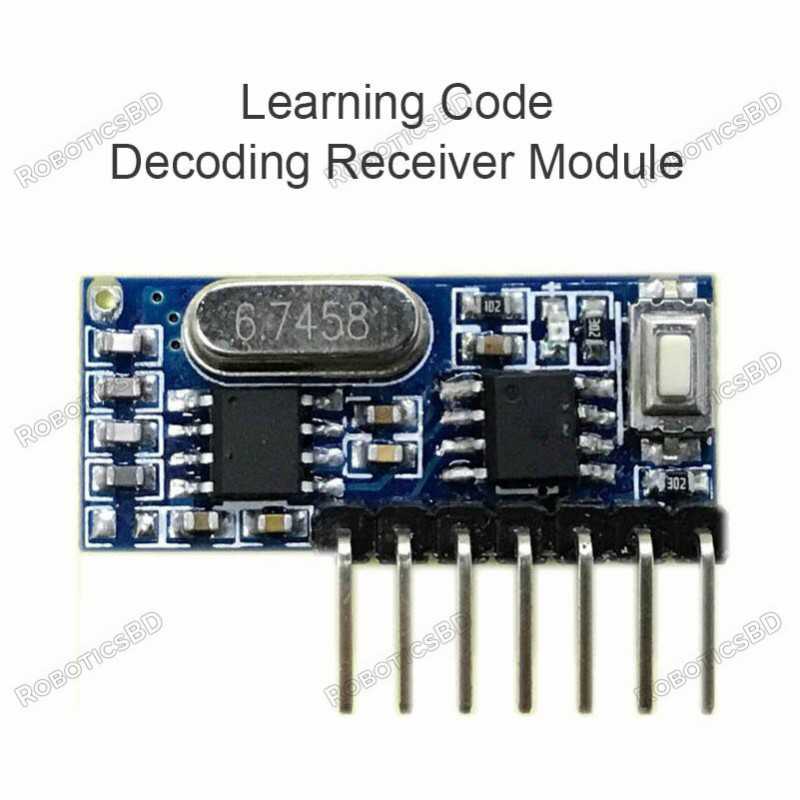

433Mhz Wireless Receiver Learning Code EV1527 Decoding Module 4Ch output With Learning Button Robotics Bangladesh
  • 433Mhz Wireless Receiver Learning Code EV1527 Decoding Module 4Ch output With Learning Button Robotics Bangladesh
  • 433Mhz Wireless Receiver Learning Code EV1527 Decoding Module 4Ch output With Learning Button Robotics Bangladesh
  • 433Mhz Wireless Receiver Learning Code EV1527 Decoding Module 4Ch output With Learning Button Robotics Bangladesh

433Mhz Wireless Receiver Learning Code EV1527 Decoding Module 4Ch output With Learning Button

RBD-2134

  • 433Mhz Wireless Receiver Learning Code EV1527 Decoding Module
  • 4-channel output with a learning button
  • Compatible with Arduino/ARM/MCU
  • Ideal for wireless power switch sockets, remote controls, LED lighting, and electric doors
  • Wide range of applications in home automation, security systems, and remote control devices
BDT 490.00
BDT 490.00 BDT 490.00 BDT 490.00 BDT 490.00
Tax included Tax excluded Tax included Tax excluded
BDT 490.00 Tax excluded
BDT 490.00 Tax included
BDT 0.00 Tax
BDT 490.00 Tax excluded
BDT 0.00 Tax
BDT 490.00 Tax included
Quantity
In-Stock
20 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The 433Mhz Wireless Receiver Learning Code EV1527 Decoding Module is a versatile module designed for wireless communication and control applications. With its 4-channel output and learning button, it offers flexibility and convenience in various projects. It is compatible with popular development platforms such as Arduino, ARM, and MCU, making it suitable for DIY enthusiasts and professionals alike. This module is commonly used in wireless power switch sockets, remote controls, LED lighting, and electric doors. It finds applications in home automation, security systems, and remote control devices. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Pin Description:

  1. GND : ground or negative pole
  2. +V : DC3.3~5V input
  3. D0: Data output
  4. D1: Data output
  5. D2: Data output
  6. D3: Data output
  7. VT: Output

Features:

  1. Wireless receiver module with 433MHz frequency
  2. Utilizes EV1527 decoding for reliable and accurate signal reception
  3. 4-channel output with a learning button for easy integration and control
  4. Compatible with Arduino, ARM, and MCU platforms
  5. Ideal for wireless power switch sockets, remote controls, LED lighting, and electric doors
  6. Wide range of applications in home automation, security systems, and remote control devices
  7. Working mode: inching, self-locking, interlocking

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Remote control switches and receiver modules
  2. Motorcycle and automobile anti-theft products
  3. Home security systems and electric doors
  4. Shutter doors and windows
  5. Remote control sockets and LED lighting
  6. Remote control audio systems
  7. Garage doors and retractable doors
  8. Remote volume gates and pan doors
  9. Door openers and closing device control systems
  10. Remote control curtains and alarm systems
  11. Remote control motorcycles and electric cars
  12. Remote control MP3 players

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Product Model RX480-E4
Working Voltage DC3.3~5V
Quiescent Current Less than 5mA
Working Frequency 433MHz
Receive Sensitivity -108dB
Receive Distance 15 meters above
Frequency band ±0.2MHz
Working Temperature -25°C to 75°C
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

How To Program: (Translated from Chinese)

1. Delete existing data: Press learning button 8 times. Response: LED flashes 7 times.

2. Learning remote code: press learning key once, twice or three times (see below).

LED turns on: learning mode is active. Press any button of the remote control.

LED indicator flashes three times: learning successfully completed.

3. Test: after the above operation , the receiver board can be controlled by the remote control .

More transmitters with different IDs can be learned and stored additionally, starting with step 2.

A mixture of different modes is possible.

Button usage (sets mode and starts pairing process):

Press once: Inching mode (Momentary Mode)

Press twice: self-Lock Mode (Toggle-Mode of the 4 Channels)

Press three times: interlocked mode (selected channel active and be cleared, if another channel becomes active)

Application example

  1. Data

Package Includes:

1 x 433Mhz Wireless Receiver Learning Code EV1527 Decoding Module 4Ch output With Learning Button

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
