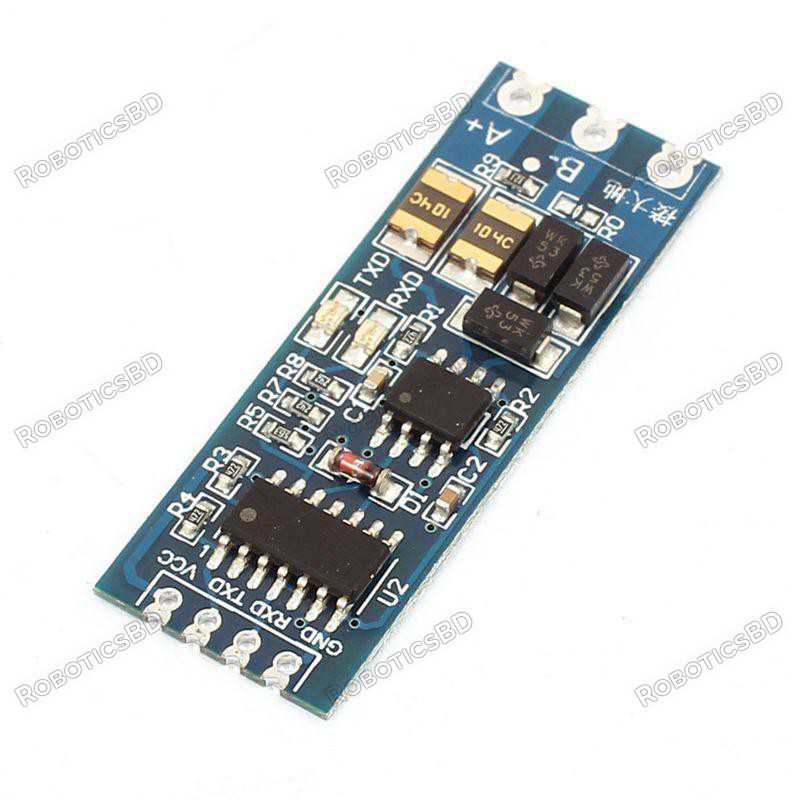

RS485 To TTL Module Stable UART Serial Port To RS485 Converter Function Board Robotics Bangladesh
  • RS485 To TTL Module Stable UART Serial Port To RS485 Converter Function Board Robotics Bangladesh
  • RS485 To TTL Module Stable UART Serial Port To RS485 Converter Function Board Robotics Bangladesh

RS485 To TTL Module Stable UART Serial Port To RS485 Converter Function Board

RBD-1870

  • Compatible with 3.3V and 5.0V power supply.
  • Compatible with 3.3V and 5.0V signal.
  • Semi-hole pads, onboard module, thin PCB, having a thickness of 0.8mm.
  • Has RXD, TXD signal indicator light, monitor send and receive status.
BDT 1,050.00
BDT 1,050.00 BDT 1,050.00 BDT 1,050.00 BDT 1,050.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,050.00 Tax excluded
BDT 1,050.00 Tax included
BDT 0.00 Tax
BDT 1,050.00 Tax excluded
BDT 0.00 Tax
BDT 1,050.00 Tax included
Quantity
In-Stock
16 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is a module that allows the TTL interface of the microcontroller to be transferred to the RS485 module. It is generally used for industrial automation. This module adds lightning protection design and anti-jamming design. When we use it in the field and carry out long distance transmission, we can Connect the GND end of the module to the ground so that lightning protection and anti-interference can be achieved.

It uses a standard 2.54 mm pitch design. If you want to make the second development will be more convenient. It has 120 ohm matching resistance, shorted R0 can, it is recommended that users in the long distance transmission shorted.

It supports communication between multiple microcontrollers, allowing up to 128 devices on the bus. It can be hot-swappable, in order to prevent signal interference, it carried out a large area of copper, the effect is very good.Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. 3.3V perfectly compatible with 5.0V power supply
  2. Absolute using imported chips, industrial design, anti-interference ability, while using more effective mine design can be used in the industrial field and harsh field environments, the working temperature of -40 ℃ to + 85 ℃ transmission distance up to 1 kilometer (made with 850 meters of cable F1.5 tests recommended in the 800 meters, more than 800 m, please add repeaters).
  3. Transmission distance up to kilometers (with 850 meters of 2 * 1.5 cable to do the test, it is recommended to use in the 800 meters, more than 800 meters, please add repeaters)
  4. Semi-hole process design, the thickness of 0.8mm, makes it easy to use as a combo board, it can also be welded terminal use
  5. Has RXD, TXD signal lights to observe send and receive status
  6. The module is fully considered mine design, long-distance transmission signal 485 in the wild, the module "Connected to the ground" terminal is connected to the earth, can play a very good anti-jamming and anti-lightning effect, more secure; it can not connect with the ground when the indoor short-distance transmission.
  7. Using the standard 2.54 pitch design, easy secondary development.
  8. Has a 120 ohm termination resistors, shorted R0to enable the termination resistor.
  9. Support multi-machine communication, allowing access at up to 128 devices on the bus
  10. The module can be hot swapped, the signal does not appear dead phenomenon.
  11. A large area of copper to prevent interference.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Working temperature range -40 ℃ to + 85 ℃
Communication method Half duplex
Pitch design Standard 2.54 mm
Shipment Weight 0.005 kg
Shipment Dimensions 8 × 5 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Package Includes:

1 x RS485 To TTL Module Stable UART Serial Port To RS485 Converter Function Board

Product Details
RBD-1870
16 Items

Specific References

EAN13
1870
