Digital Auto Counter Meter with Hall Effect Proximity Switch Sensor (Battery Powered) Robotics Bangladesh
  • Digital Auto Counter Meter with Hall Effect Proximity Switch Sensor (Battery Powered) Robotics Bangladesh
  • Digital Auto Counter Meter with Hall Effect Proximity Switch Sensor (Battery Powered) Robotics Bangladesh
  • Digital Auto Counter Meter with Hall Effect Proximity Switch Sensor (Battery Powered) Robotics Bangladesh

Digital Auto Counter Meter with Hall Effect Proximity Switch Sensor (Battery Powered)

RBD-2009

  • Digital Auto Counter Meter with Hall Effect Proximity Switch Sensor (Battery Powered)
  • No Power Required
  • Digital Counter Meter Battery Attached
  • Hall Effect Proximity Switch Sensor

Connect Hall Effect Proximity Switch Sensor 2 wire to counter terminals 1&2. If the sensor detects a magnet it will start to count.

BDT 3,990.00
BDT 3,990.00 BDT 3,990.00 BDT 3,990.00 BDT 3,990.00
Tax included Tax excluded Tax included Tax excluded
BDT 3,990.00 Tax excluded
BDT 3,990.00 Tax included
BDT 0.00 Tax
BDT 3,990.00 Tax excluded
BDT 0.00 Tax
BDT 3,990.00 Tax included
Quantity
In-Stock
5 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Series electromagnetic counter are used in Recording the total times of electronic pulse signal, and it's widely applied in the counting area of petrol, industry, mechanism, national defense, agriculture, food, printing and etc. The features are new counter design, high precision, long life, stable performance, widely use and easy operation. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Note: Product images/ Components brand may vary from actual product as our stock rotates

Features:

  1. DIN-size standard panel 48x24mm and display 24x8mm
  2. Self-power, Battery inside.
  3. Improved noise immunity
  4. 6 segment LCD Display
  5. Reset to Zero
  6. Ideal mini feature
  7. screw terminal types

General Specification
Power internal power
Count range 0~999999/99999999
Minimum count signal ZYC03-L 100ms (5Hz)
Max connect resistance ≤10KΩ (count ON)
Battery life approx. 5 year (25°C)
Min reset pulse ≥0.5s
Installation dimension 22.5×45mm
Min disconnect resistance ≥1000KΩ (count OFF)
Weight approx.60g
Shipment Weight 0.126 kg
Shipment Dimensions 10 × 10 × 6 cm

Please allow 1-3cm measuring deviation due to manual measurement.

Documentation:

  1. DHC3J SELF-POWERED COUNTER DHC3L Datasheet
  2. Proximity Sensor Hall Effect Model:NJK-5002D Datasheet

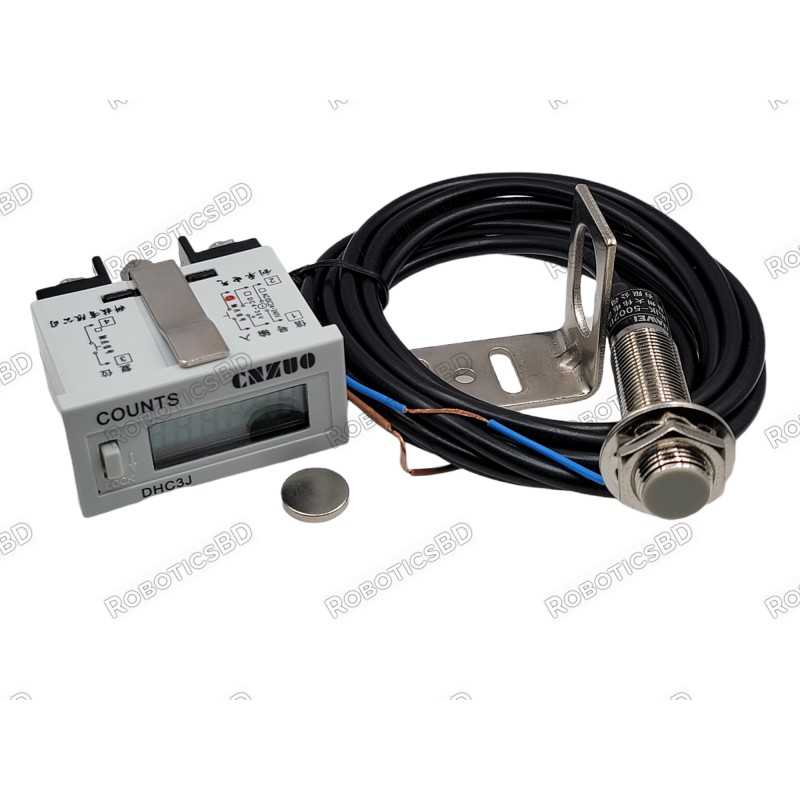

Package Includes:

1 x Digital Counter Meter Battery Attached (DHC3J-6L)

1 x Hall Effect Proximity Switch Sensor (NJK-5002D, 2 Wire)

1 x Mounting Bracket

1 x Mini Magnet
