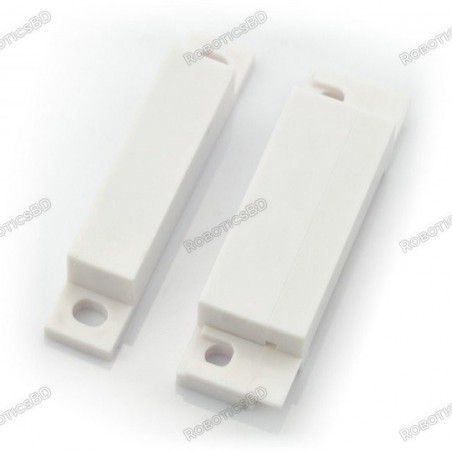

Magnetic Sensor to open Door/Window - Reed Contact CMD20

RBD-2847

Wired proximity sensor activated magnetically. The device is used to determine the position of doors and windows. Case dimensions - 20 x 64 mm.

BDT 250.00
BDT 250.00 BDT 250.00 BDT 250.00 BDT 250.00
Tax included Tax excluded Tax included Tax excluded
BDT 250.00 Tax excluded
BDT 250.00 Tax included
BDT 0.00 Tax
BDT 250.00 Tax excluded
BDT 0.00 Tax
BDT 250.00 Tax included
Quantity
30 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Description

Wired proximity sensor activated magnetically. The device is used to determine the position of doors and windows. The principle of operation is similar as in a traditional relay. The circuit is open by default, when approaching the magnet, circuit is being closed, which means that through the wires, the current begins to flow.

Czujnik magnetyczny otwarcia drzwi/okien - kontaktron CMD20

Connection

The sensor can be easily connected to any cip with a microcontroller, e.g. an Arduino. By attaching a pulling up resistor or by running an internal pull-up, the read can be implemented in digital form.



Communication with Arduino

To verify that the functionality of the sensor, use the attached to the Arduino program - DigitalInputPullup, which is in the menu: File -> Examples -> Digital. It is sufficient to connect one sensor's wire to ground GND, the other to the pin No. 2 of Arduino, and when bringing together both parts of the sensor, the built-in L led connected to pin 13, will light up.





Specification

  • Working voltage: up to 40 V
  • Maximum current: 0.1 A
  • Internal resistance: about 200 Ω
  • Range: up to 25 mm
  • Mode of operation: off by default
  • Mounting holes: distance between them is approx. 52 mm
  • Housing color: white
  • Dimensions: 20 x 64 mm



Includes:

  • Sensor
  • The magnetic element
  • Mounting screws
Product Details
RBD-2847
30 Items

Specific References

EAN13
2847
