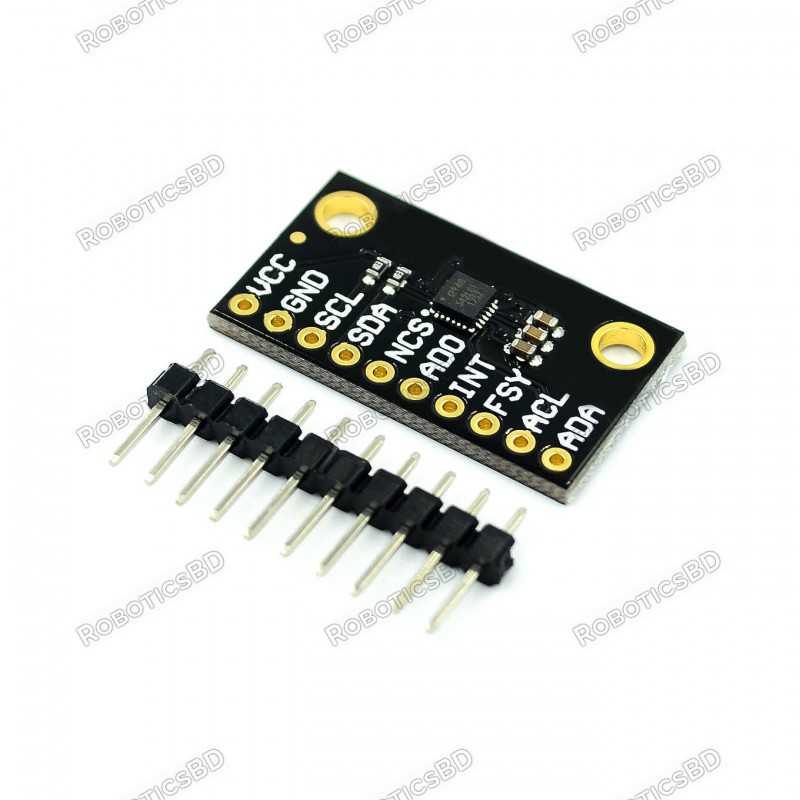

ICM-20948 MEMS Motion Tracking Device Sensor Board 9 Axis

RBD-1813

  • ICM-20948
  • MEMS Motion Tracking Device Sensor Board
  • 9 Axis
BDT 1,990.00
BDT 1,990.00 BDT 1,990.00 BDT 1,990.00 BDT 1,990.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,990.00 Tax excluded
BDT 1,990.00 Tax included
BDT 0.00 Tax
BDT 1,990.00 Tax excluded
BDT 0.00 Tax
BDT 1,990.00 Tax included
Quantity
In-Stock
12 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The ICM-20948 is specifically designed to coordinate the time between the ICM-20948 and external sensors.

An extra feature. In addition to using the module's dedicated interrupt INT pin, developers can use the external sensor's interrupt or sync pulse to drive the module's FSYNC pin to help developers simplify these multi-sensor designs. The ICM-20948 provides separate external sensors. 12C interface and built-in support. Developers here connect a 12C-compatible smart sensor to the module's dedicated auxiliary 12C port. While the SPI (or 12C) is connected to the host MCU, the developer can use the TDK tube to stream the InvenSense ICM-20948 module's auxiliary 12C interface (AUX_CL Connect external sensors to AUX_DA and manage them via the auxiliary device special registers of the lCM-20948. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Smartphones and Tablets
  2. Wearable Sensors
  3. IoT Applications

Features:

  1. Lowest Power 9-Axis Device at2.5 mW
  2. 3-Axis Gyroscope with Programmable FSR of 250 dps, 500 dps, 1000 dps,and 2000 dps
  3. 3-Axis Accelerometer with Programmable FSR of 2g,±4g, 8g,and t16g
  4. 3-Axis Compass with a wide range to 4900 T
  5. Onboard Digital Motion Processor (DMP for Android support)
  6. Auxiliary 2C interface for external sensors
  7. On-Chip 16-bitADCs and Programmable Filters
  8. 7 MHz SPI or 400 kHz Fast Mode IC
  9. Digital-output temperature sensor
  10. VDD operating range of 1.71V to3.6V
  11. MEMS structure hermetically sealed and bonded at water level

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Gyroscope Yes
Accelerometer Yes
Magnetometer Yes
I2C Standard Mode 100kHz
I2C Fast-mode 400kHz
Shock Tolerant 20000g
Temperature Sensor Digital Yes
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Pin Description:
  1. VCC: power terminal
  2. GND: Ground
  3. SCL: I2C serial clock interface
  4. SDA: I2C serial data interface
  5. NCS: used to read all data from the MPU and configure the MPU and external sensors
  6. ADO: SDO pin when using SPI
  7. INT: Interrupt pin
  8. FSY: related to the external sensor part
  9. ACL: Auxiliary 12C serial clock line
  10. ADA: Auxiliary 12C serial data line

Package Includes:

1 x ICM-20948 MEMS Motion Tracking Device Sensor Board 9 Axis.
