ADXL345 Triple Axis Accelerometer Board is a small, thin, low-power, 3-axis accelerometer with a high resolution (13-bit) measurement at up to ±16g. Digital output data is format as a 16-bit two’s complement and is accessible through either an SPI (3- or 4-wire) or I2C digital interface. RoboticsBD
The ADXL345 Triple Axis Accelerometer Board is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0°. RoboticsBD
Several special sensing functions are provided. Activity and inactivity sensing detect the presence or lack of motion and if the acceleration on any axis exceeds a user-set level. Tap sensing detects single and double taps. Free-fall sensing detects if the device is falling. These functions can be mapped to one of two interrupt output pins. An integrated, patent-pending 32-level first-in, first-out (FIFO) buffer can be used to store data to minimize host processor intervention. RoboticsBD
Low power modes enable intelligent motion-based power management with threshold sensing and active acceleration measurement at extremely low power dissipation. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications :
- Pointing devices.
- Handsets.
- Medical Instrumentation.
- Gaming.
- Industrial instrumentation.
- Personal navigation devices.
- Hard disk drive (HDD) protection.
- Fitness equipment.
- defense and aerospace.
Features :
- Ultra-Low Power: 40µA in measurement mode, 0.1µA in standby@ 2.5V.
- Free-Fall Detection.
- Tap/Double Tap Detection.
- Flexible interrupt modes mappable to either interrupt pin Measurement ranges selectable via serial command Bandwidth selectable via serial command
- Wide temperature range (−40°C to +85°C).
- 10,000 g shock survival.
- Support 5V/3.3V voltage input, onboard RT9161 power chip, lower pressure drop faster than 1117, the faster load speed of response, very suitable for high-noise power supply environment.
- User-selectable resolution
- Fixed 10-bit resolution. RoboticsBD
- Full resolution, where resolution increases with G range, up to 13-bit resolution at ±16 g (maintaining 4 mg/LSB scale factor in all G ranges).
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Input Supply Voltage (VDC) |
3.3 ~ 5 |
| Interface Type |
I²C, SPI |
| Sensing Range |
±2g, ±4g, ±8g, ±16g |
| X-Axis Sensitivity |
28.6 LSB/g |
| Y-Axis Sensitivity |
31.2 LSB/g |
| Z-Axis Sensitivity |
34.5 LSB/g |
| Length (mm) |
20.5 |
| Width (mm) |
15.5 |
| Height (mm) |
3.5 |
| Weight (gm) |
0.6 |
| Shipment Weight |
0.085 kg |
| Shipment Dimensions |
4 × 3 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes :

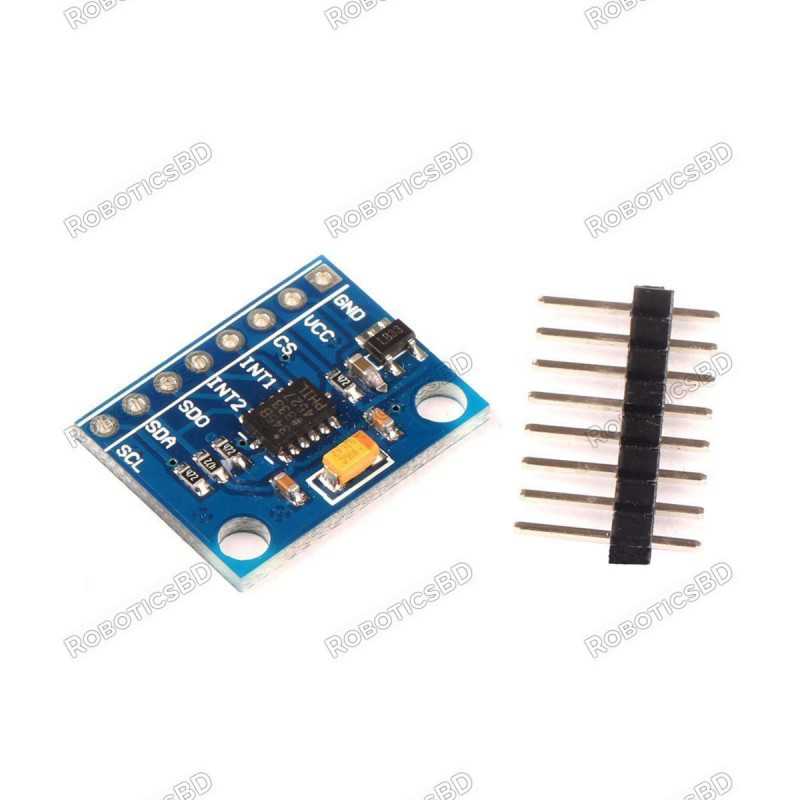

1 x ADXL345 Triple Axis Accelerometer Breakout.
