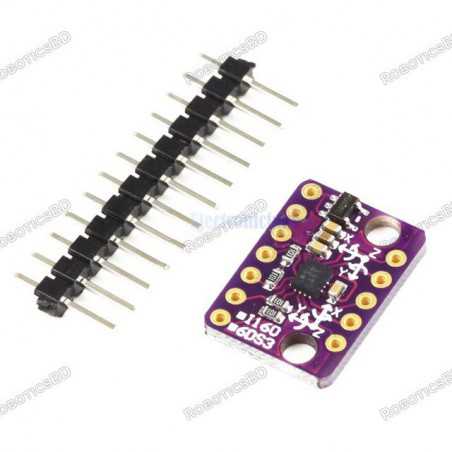

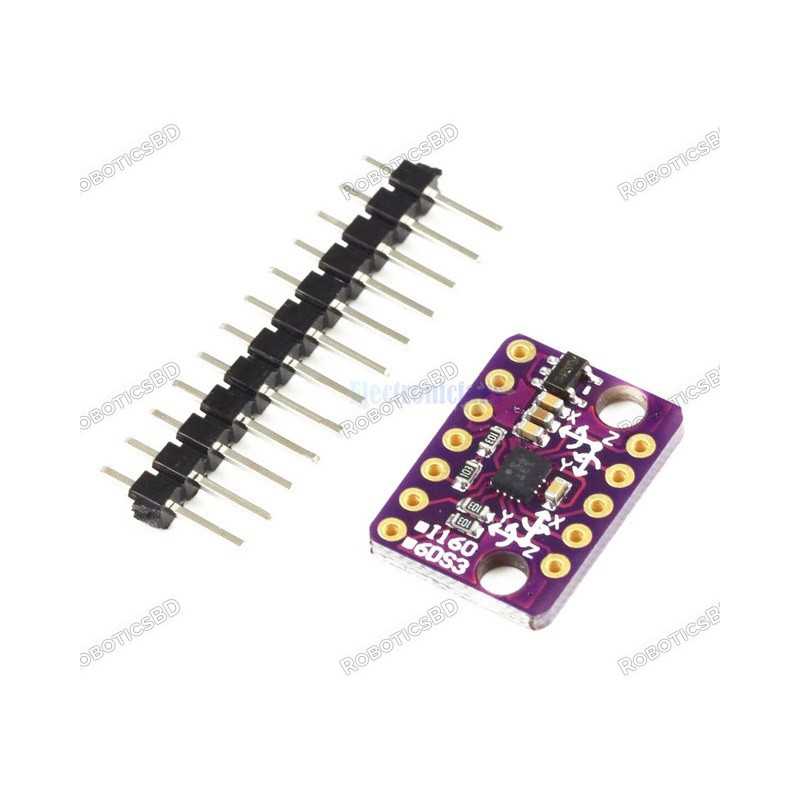

GY- BMI160 6DOF Gravity Accelerometer Sensor
  • GY- BMI160 6DOF Gravity Accelerometer Sensor

GY- BMI160 6DOF Gravity Accelerometer Sensor

RBD-0700

  • Operating Voltage: 3.3V-5.5V
  • Low Power Consumption
  • High Accuracy
  • Small Size
BDT 390.00
BDT 390.00 BDT 390.00 BDT 390.00 BDT 390.00
Tax included Tax excluded Tax included Tax excluded
BDT 390.00 Tax excluded
BDT 390.00 Tax included
BDT 0.00 Tax
BDT 390.00 Tax excluded
BDT 0.00 Tax
BDT 390.00 Tax included
Quantity
In-Stock
40 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The BMI160 is a small, low power, low noise 16-bit inertial measurement unit designed for use in mobile applications like augmented reality or indoor navigation which require highly accurate, real-time sensor data. RoboticsBD

In full operation mode, with both the accelerometer and gyroscope enabled, the current consumption is typically 950 μA, enabling always-on applications in battery driven devices. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Augmented reality and immersive gaming
  2. 3D-scanning and indoor mapping
  3. Indoor navigation, pedestrian dead-reckoning, step-counting
  4. 6- and 9-axis sensor fusion, air mouse applications
  5. Optical image stabilization

Specification:

  1. GY-BMI160 module (three axis gyro + three axis acceleration)
  2. Using chip: BMI160
  3. Power supply: 3-5v (internal low dropout voltage regulator)
  4. Communication mode: Standard IIC/SPI communication protocol
  5. Chip built in AD 16bit converter, 16 bit data output
  6. Gyro range: + 125+ 250500.1000 +2000 degrees /s
  7. Acceleration range: + 2 + 4 + 8 + 16g
  8. Using heavy gold PCB
  9. Pin spacing :2.54mm
  10. Module size: 13mm*18mm

Features:

  1. Low Power Consumption
  2. High Accuracy
  3. Small Size

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating Voltage(V) 3.3~5.5
Communication Interface Standard IIC/SPI communication protocol
Gyro range + 125 + 250500.1000 +2000 degrees /s
Acceleration range + 2 + 4 + 8 + 16g
Length (mm) 18
Width (mm) 13
Shipment Weight 0.02 kg
Shipment Dimensions 4 × 3 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x BMX160 9-axis Sensor Module(V1.0)

1 x 2.54 Single Row 7PIN Connector.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0700
40 Items

Specific References

EAN13
0700
