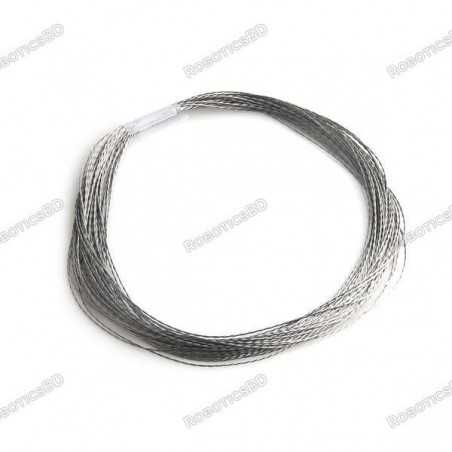

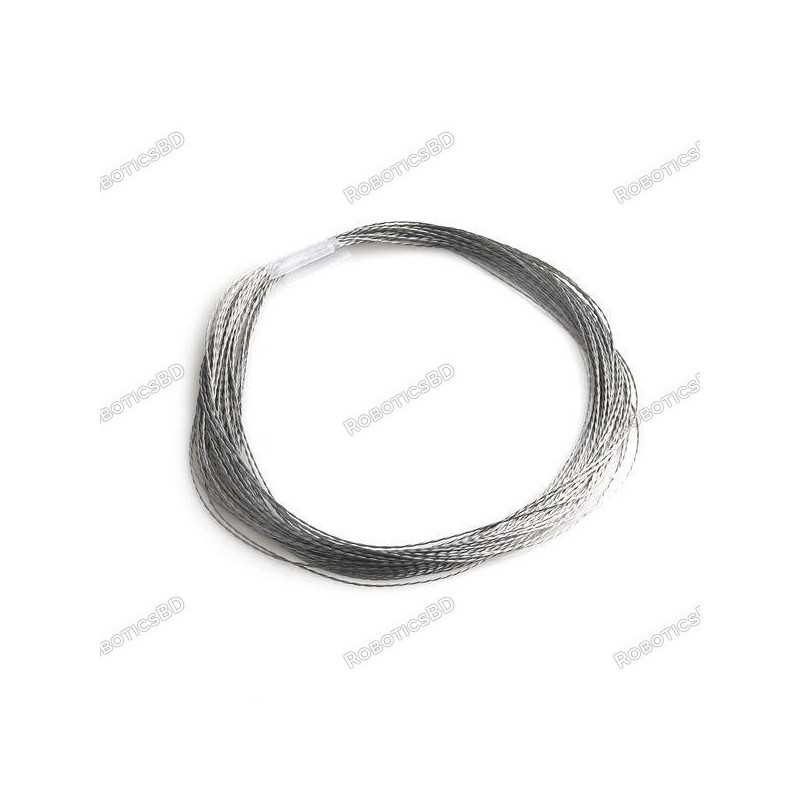

This Stainless Steel 1m Conductive Thread Wire for Wearable Lilypad (Pack of 5) is a creative way to connect various electronics to clothing. This thread can carry current for power and signals. While not as conductive as traces on a printed circuit board (PCB), this thread makes wearable clothing ‘wearable’.
This thread is stainless steel making it extremely tarnish resistant. This thread is a 2-ply thread and may be small enough to be compatible with some sewing machines. This thread has a resistance of about 6 Ohms per feet and weighs about 0.15g per feet. This is about 360 yards of conductive thread spun from stainless steel fiber and wound on a spool. You can use it as a creative way to connect various electronics to clothing projects.
This large spool is a great way to get into wearable electronics without a large upfront cost and a large enough quantity to not be afraid of making a few mistakes. What sets this thread apart from the other conductive thread that we carry is the fact that it’s actually spun from stainless steel fibers (as opposed to plated silver) and doesn’t have a Nylon core.
This means that while it may not be easy to solder to because it’s stainless, it also won’t burn up when you touch it with a soldering iron. Also, it’s somewhat ‘hairy’ and can be slightly more difficult to work within close, fine conditions than the other thread. Our resident E-Textiles expert suggests waxing the thread for hand sewing, as this should take care of any ‘hairy thread’ issues.
Since waxing is impractical in machine sewing applications, avoid sewing close connections by machine as the ‘hairs’ could potentially short across small distances. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Material |
Stainless steel fiber |
| Strength |
2.8 KGF |
| Resistance (Ω/m) |
27 |
| Length (m) |
1 |
| Diameter (mm) |
0.12 |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
12 × 8 × 2.5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes :
1 x Stainless Steel 1m Conductive Thread Wire for Wearable Lilypad.
