MQ-136 Hydrogen Sulfide Gas Sensor Robotics Bangladesh
  • MQ-136 Hydrogen Sulfide Gas Sensor Robotics Bangladesh

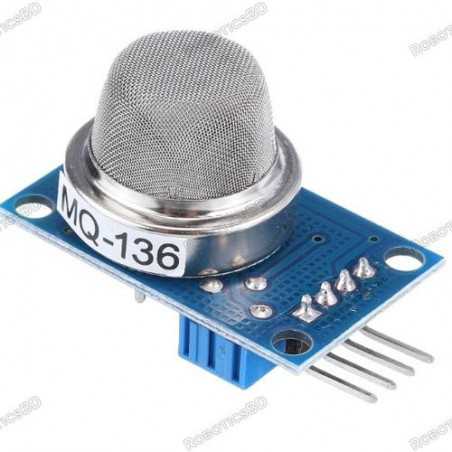

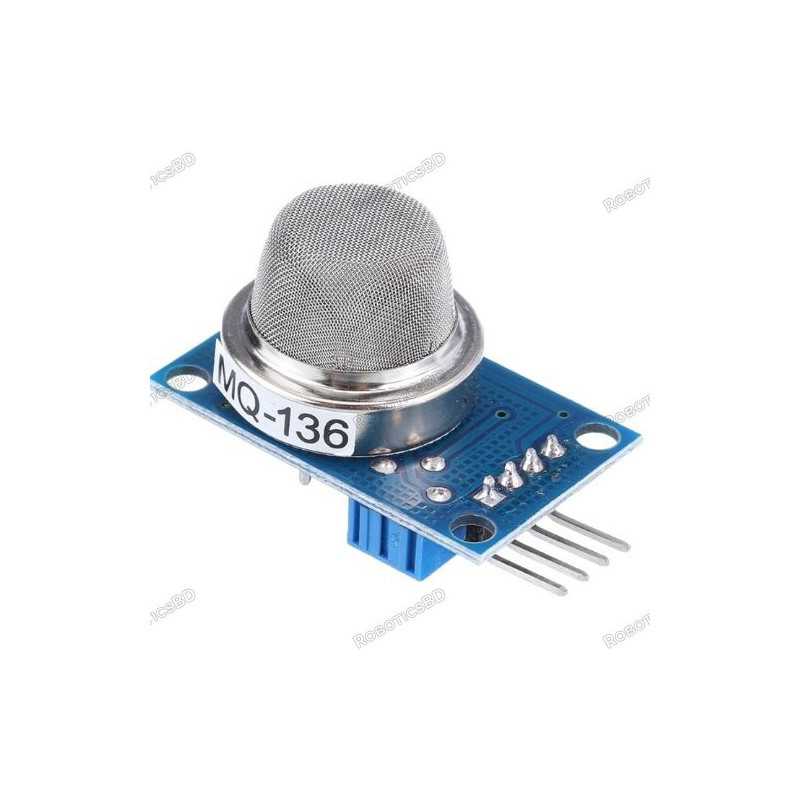

MQ-136 Hydrogen Sulfide Gas Sensor

RBD-1934

  • Dual signal output (analog output and TTL level output)
  • The TTL output effective signal is low.
  • Analog output 0 ~ 5V voltage, the higher the concentration the higher the voltage.
  • Good sensitivity to hydrogen sulfide, liquefied gas, natural gas, city gas, and smoke.
  • with long service life and reliable stability
  • fast response recovery characteristics
BDT 1,730.00
BDT 1,730.00 BDT 1,730.00 BDT 1,730.00 BDT 1,730.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,730.00 Tax excluded
BDT 1,730.00 Tax included
BDT 0.00 Tax
BDT 1,730.00 Tax excluded
BDT 0.00 Tax
BDT 1,730.00 Tax included
Quantity
In-Stock
4 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

MQ136 Gas Sensor can be used to monitor the concentration of Hydrogen Sulfide gas. This Module simplifies using the MQ-136 gas sensor by providing digital as well as analog output which can be interfaced to Microcontrollers, Arduino, and Raspberry pi.

The sensitive material of the MQ136 gas sensor is SnO2, which with lower conductivity in clean air. When the target Hydrogen sulfide gas exists, the sensor’s conductivity is higher along with the Hydrogen sulfide concentration rising. Please use a simple electric circuit, Convert the change of conductivity to correspond output signal of gas concentration. MQ136 gas sensor has a high sensitivity to Hydrogen sulfide, Low sensitivity for other combustible gas. It is at a low cost and suitable for different applications. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Note: Product images/ Components brand may vary from actual product as our stock rotates.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:
  • Domestic Hydrogen sulfide detector
  • Industrial Hydrogen sulfide detector
  • Portable Hydrogen sulfide detector

Features:

  1. Dual signal output (analog output and TTL level output)
  2. The TTL output effective signal is low. (The signal light is on when the output is low and can be directly connected to the microcontroller)
  3. Analog output 0 ~ 5V voltage, the higher the concentration the higher the voltage.
  4. Good sensitivity to hydrogen sulfide, liquefied gas, natural gas, city gas, and smoke.
  5. with long service life and reliable stability
  6. fast response recovery characteristics
  7. Size: 32mm X22mm X27mm length X width X height
  8. The main chip: LM393, ZYMQ-136 gas sensors
  9. Good sensitivity to Hydrogen sulfide
  10. Long life and low cost
  11. Simple drive circuit

General Specification
Model MQ-136
Target Gas Hydrogen Sulfide(H2S gas)
Detecting Range 1-200ppm
Length (mm) 29
Width (mm) 19
Height (mm) 24
Weight (gm) 8
Shipment Weight 0.010 kg
Shipment Dimensions 3 × 3 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

Package Includes:

1 x MQ-136 Hydrogen Sulfide Gas Sensor

Product Details
RBD-1934
4 Items

Specific References

EAN13
1934
