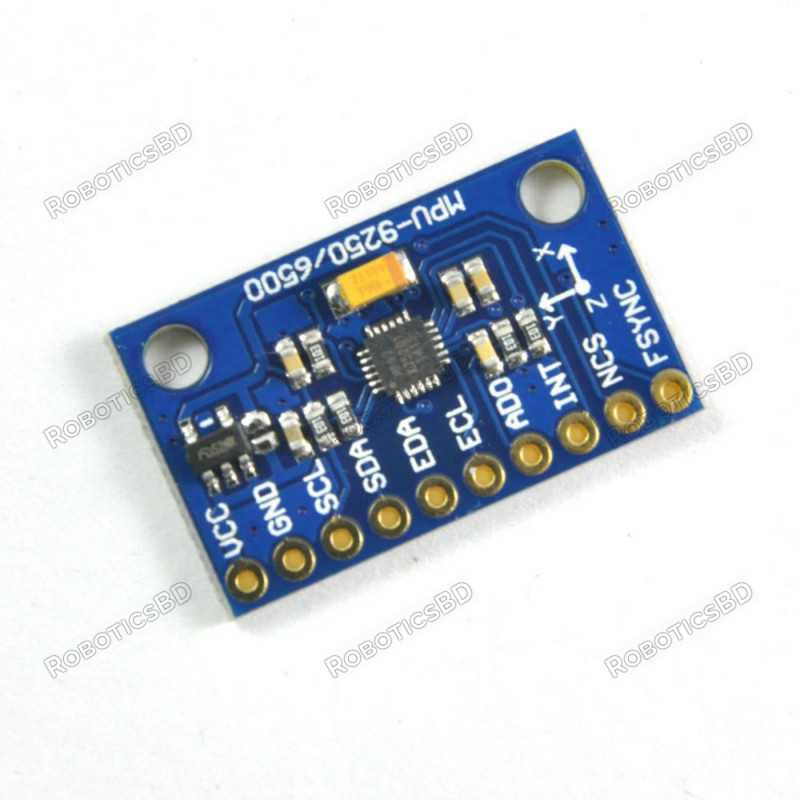

MPU9250 9-Axis Attitude Gyro Accelerator Magnetometer Sensor Module

RBD-0569

  • Acceleration, Gyroscope, and Magnetometer
  • Power Supply: DC3.3V-5V
  • Chip: MPU9250
  • Size: 22 mm x 17 mm.
  • Gyro range : ± 250 500 1000 2000 ° / s
  • Acceleration range: ± 2 ± 4 ± 8 ± 16g
  • Magnetic field range: ± 4800uT
  • 9 DOF modules
BDT 850.00
BDT 850.00 BDT 850.00 BDT 850.00 BDT 850.00
Tax included Tax excluded Tax included Tax excluded
BDT 850.00 Tax excluded
BDT 850.00 Tax included
BDT 0.00 Tax
BDT 850.00 Tax excluded
BDT 0.00 Tax
BDT 850.00 Tax included
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

MPU9250 9-Axis Attitude Gyro Accelerator Magnetometer Sensor Module features the MPU-9250, which is a multi-chip module (MCM) consisting of two dies integrated into a single QFN package. One die houses the 3-Axis  accelerometer and gyroscope. The other die houses the AK8963 3-Axis magnetometer. Hence, the MPU-9250 is a 9-axis Motion Tracking device that combines a 3-axis accelerometer, gyroscope and magnetometer, and a Digital Motion Processor (DMP). It is based on I2C Address, Address: 0x68 by default, 0x69 if AD0 is pulled high. RoboticsBD

The MPU-9250 also features an embedded temperature sensor. This module includes pull-up resistors on the SDA, SCL, and nCS lines, pull-down resistors on the FSYNC and AD0 lines, and an onboard 3.3V voltage regulator allowing you to power the module from 5V sources such as an Arduino. If you desire to power the module from 3.3V you can bridge the solder jumper next to the voltage regulator to bypass the regulator.Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications
  1. FPV, RC, and Robots systems
  2. GPS navigation systems
  3. Impact recognition and logging
  4. Gaming and virtual reality input devices
  5. Motion-activated functions
  6. Intelligent power saving for handheld devices
  7. Vibration monitoring and compensation
  8. Free-fall detection. RoboticsBD

Features :

  1. Acceleration, Gyroscope, and Magnetometer
  2. 9 DOF module
  3. Build-in ultra-low noise linear LDO voltage regulator.
  4. Built-in onboard filters, which reduce noise from the motor and other high current electronics.
  5. All sensors are connected to the I2C bus.
  6. Build-in the Logic level converter for I2C.
  7. Power indicator LED. RoboticsBD
  8. Using Immersion Gold PCB, machine welding process to ensure quality.
  9. On-board pull-up resistors on SDA, SCL, and nCS
  10. On-board pull-down resistors on FSYNC and AD0

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Power Supply 4.4 to 6.5 V or 3.3V (if you solder the solder jumper near the on-board voltage regulator)
Gyro range ± 250 500 1000 2000 ° / s
Acceleration range ± 2 ± 4 ± 8 ± 16g
Magnetic field range ± 4800uT
Degree of Freedom (DOF) 9
Interface I2C
Length (mm) 25
Width (mm) 15
Height (mm) 3.5
Weight (gm) 5
Shipment Weight 0.01 kg
Shipment Dimensions 4 × 2 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation :

  1. Arduino Forum MPU9250

Package Includes :

1 x MPU9250 9-Axis Attitude Gyro Accelerator Magnetometer Sensor Module

1 x Jumper Header(Unsoldered).
