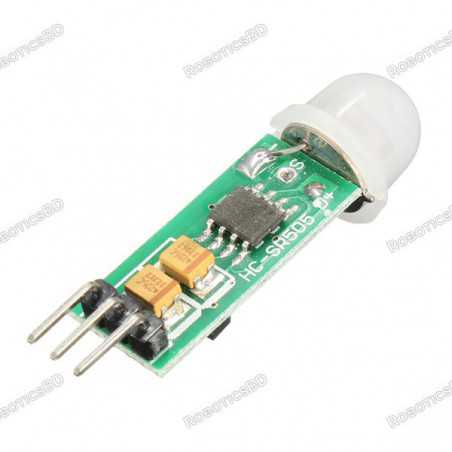

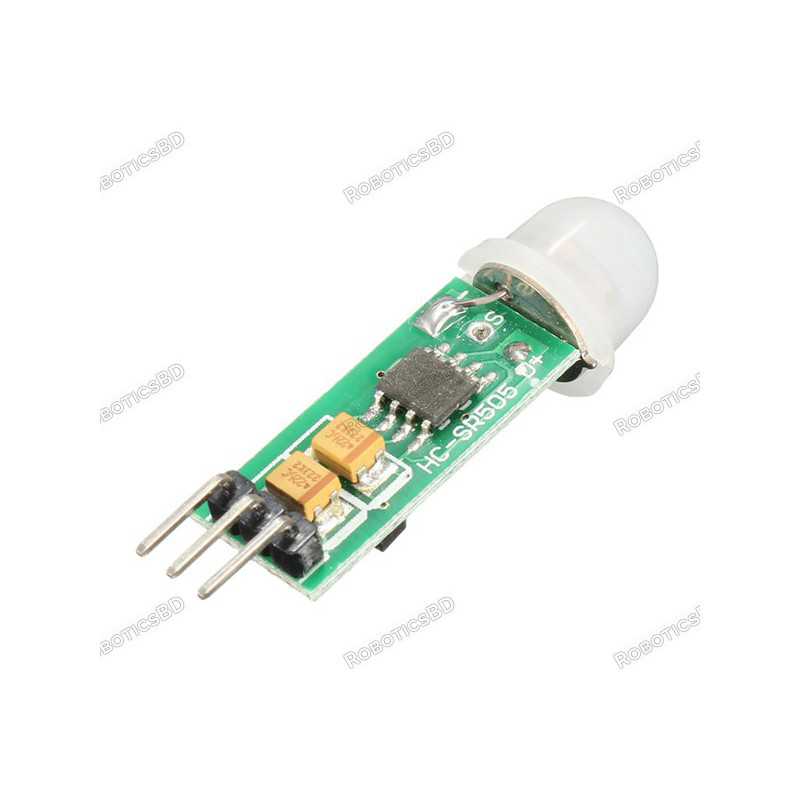

HC-SR505 Mini Infrared PIR Motion Sensor

RBD-2144

  • Automatic induction: to enter the sensing range
  • Ultra-small size.
  • Repeatable trigger
  • Wide operating voltage range
  • Micropower: quiescent current <50
  • Output high signal: easy docking and all kinds of circuits.
BDT 108.00
BDT 108.00 BDT 108.00 BDT 108.00 BDT 108.00
Tax included Tax excluded Tax included Tax excluded
BDT 108.00 Tax excluded
BDT 108.00 Tax included
BDT 0.00 Tax
BDT 108.00 Tax excluded
BDT 0.00 Tax
BDT 108.00 Tax included
Quantity
In-Stock
20 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

HC-SR505 Mini Infrared PIR Motion Sensor Infrared Detector Module is based on infrared technology, It automatically controls the products with high sensitivity, high reliability, ultra-small size, and ultra-low-voltage operation mode.

It is widely used in various auto-sensing of electrical equipment, especially battery-powered automatic control products. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Low-power consumption
  2. Output level: High 3.3V / Low 0V
  3. Trigger: repeatable trigger (default)
  4. Automatic induction: to enter the sensing range of the output is high, people leave the sensor range automatically delay off high, output low. Ultra-small size.
  5. Repeatable trigger: the sensor output high, the delay period, if there is human activity in its sensing range, the output will remain high until people leave after the high variable delay Low (automatically extended sensor module detects the human body after every activity a delay period, and the last time an event is the starting point of the delay time).
  6. Wide operating voltage range: the default operating voltage DC4.5V-20V.
  7. Micropower: quiescent current <50 microamps, especially for battery-powered automatic control products.
  8. Output high signal: easy docking and all kinds of circuits.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Body induction lamps.
  2. Body sensors toys.
  3. Security Products.
  4. Industrial automation and control.
  5. Auto-sensing of electrical equipment.
  6. Battery-powered automatic control.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model HC-SR505
Operating Voltage (VDC) 4.5 ~ 20
Average Current Consumption (mA) 0.06
Distance Measuring Range (CM) 10 ~ 300
Dimensions (mm) LxWxH 10 x 23 x 5
Weight (gm) 10
Delay time Default 8S + -30% (can be customized)
Working Temperature Range (°C) -20 to 80
Sensor Lens Diameter: 10mm
Induction angle <100-degree cone angle
Shipment Weight 0.015 kg
Shipment Dimensions 4 × 3 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x HC-SR505 Mini Infrared PIR Motion Sensor Precise Infrared Detector Module.
