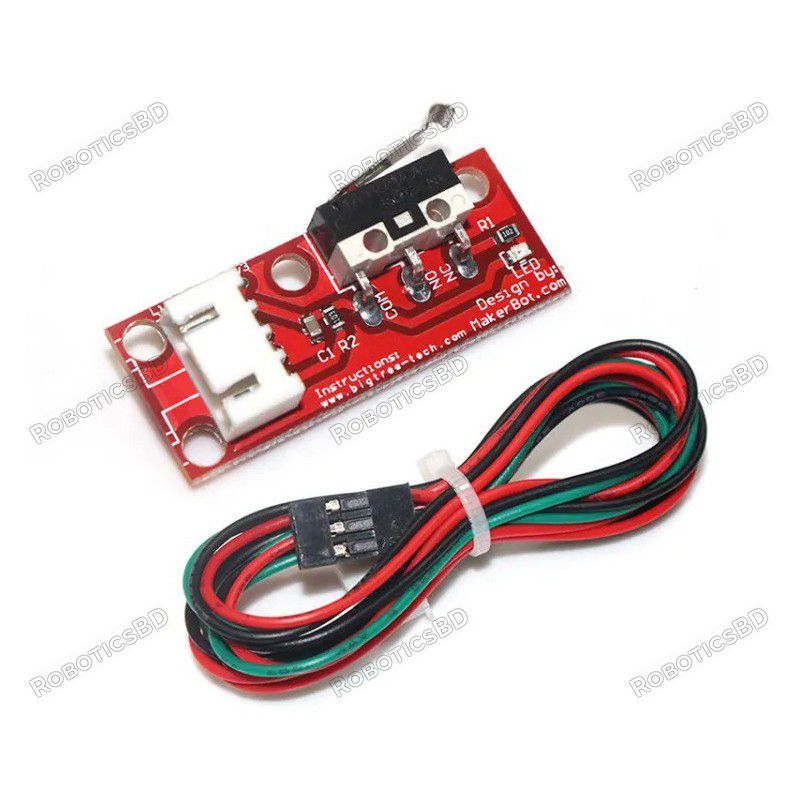

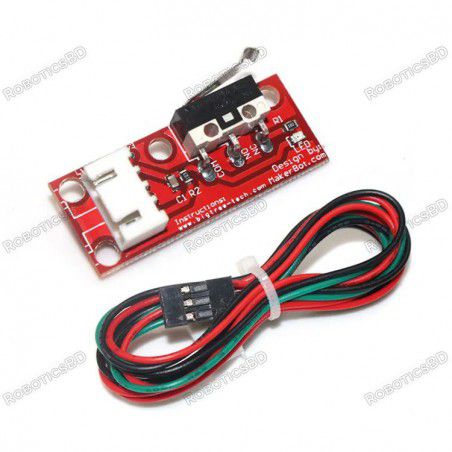

Roller Lever Endstop Limit Switch Module

DESCRIPTION

This roller lever endstop switch module is designed for use as an endstop for 3D printers but it can be used for other contact detection applications as well.

PACKAGE INCLUDES:

• Roller Lever Endstop Switch Module
• 80 cm cable

KEY FEATURES OF ROLLER LEVER ENDSTOP SWITCH MODULE:

• Good quality roller lever microswitch
• Use as travel limit switch on 3D printers or other contract detection applications
• 80 cm long 24AWG cable
• Red LED illuminates when switch is activated
• 3.3 and 5V logic compatible

The module was designed to detect travel limits for 3D printers, but they will work for many contact detection applications as well.

This module mounts a microswitch with a roller lever that rolls across the contact surface rather than scraping it as a normal lever can.

The output is normally pulled HIGH.  When the beam is broken, the output is pulled LOW and a red LED on the module illuminates.

The module uses a 4-pin 2.54mm JST style connector.  The other end of the cable terminates in a 3-pin female Dupont style connector that is compatible with a standard 2.54mm male header.

Module Connections

Note that the board is not labeled, but you can go by the cable wire colors to make connections.

1×4 Connector

• Red Wire = VCC (3.3 or 5V to match the uC.)
• Black Wire = Ground which should be common with the uC.
• N/C = Not connected, but is grounded on module side
• Green Wire = Signal output of the module.  This pin is normally pulled HIGH via a 10K pull-up resistor.  When the switch is depressed, the output goes LOW (shorted to ground).

The module has several large mounting holes.

OUR EVALUATION RESULTS:

Build quality is good on these modules.

These modules are mainly designed to provide a logic input to a uC for it to take action on, but they can also be used to directly control a relay or similar device.  The LED has a 1K current limiting resistor, so voltage should be limited to 12V or so through the module.

Notes:

1. None

TECHNICAL SPECIFICATIONS
