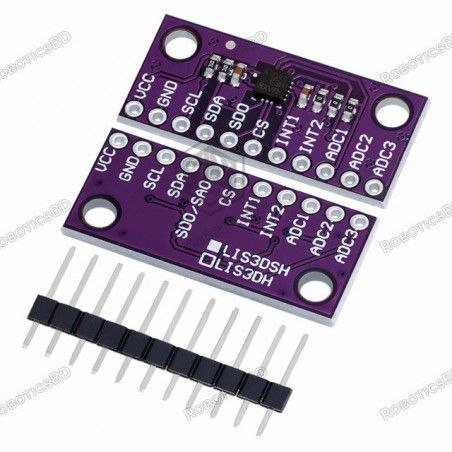

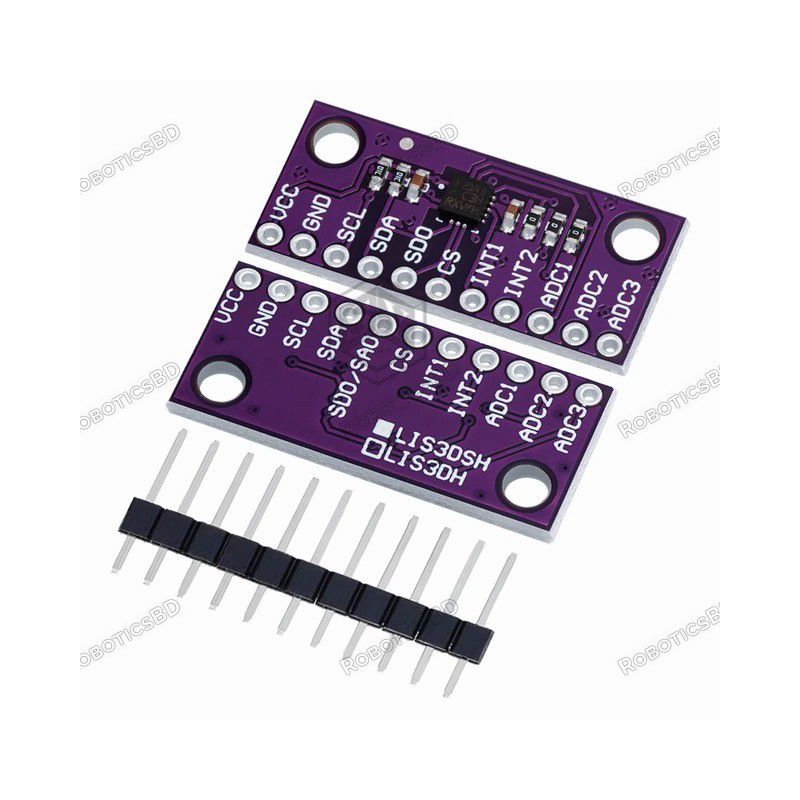

LIS3DSH High Resolution Three Axis Triaxial Accelerometer Module

RBD-2743

  • Wide supply voltage 1.71 V to 3.6 V
  • Independent IO power (1.8V) and power supply voltage compatible
  • Ultra-low power consumption of ± 2g / ± 4G / ± 6g / ± 8G / ± 16g
  • IIC  / SPI digital output interface
  • 16-bit data output
  • Programmable Embedded State Machine
  • Embedded temperature sensor
  • Embedded self-test
  • Embedded FIFO
  • 10,000 g high impact resistance
BDT 450.00
BDT 450.00 BDT 450.00 BDT 450.00 BDT 450.00
Tax included Tax excluded Tax included Tax excluded
BDT 450.00 Tax excluded
BDT 450.00 Tax included
BDT 0.00 Tax
BDT 450.00 Tax excluded
BDT 0.00 Tax
BDT 450.00 Tax included
Quantity
18 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

LIS3DSH three-axis high-resolution accelerometer sensor module LIS3DH three-axis acceleration

LIS3DSH Built-in two finite state machine three-axis high-resolution accelerometer modules

LIS3DSH is a family of ultra-low-power, high-performance three-axis linear acceleration belonging to the "nano" embedded state machine, which can be programmed to achieve autonomous applications.

The LIS3DSH has dynamically selectable full scales of ± 2g / ± 4G / ± 6g / ± 8G / ± 16g, and it is capable of measuring acceleration at output data rates from 3.125 Hz to 1.6 kHz.

The self-test function allows the user to check the functionality of the sensor in the final application.

The device can be configured to generate an interrupt signal for user-defined sport mode activation.

The LIS3DSH has integrated first and first out (FIFO) buffers that allow users to store data for reduced host processor intervention.

The LIS3DSH is housed in a small thin plastic grid array package (LGA), which is guaranteed to operate over the extended temperature range from -40 ° C to + 85 ° C

main feature
  • Wide supply voltage 1.71 V to 3.6 V
  • Independent IO power (1.8V) and power supply voltage compatible
  • Ultra-low power consumption of ± 2g / ± 4G / ± 6g / ± 8G / ± 16g
  • IIC  / SPI digital output interface
  • 16-bit data output
  • Programmable Embedded State Machine
  • Embedded temperature sensor
  • Embedded self-test
  • Embedded FIFO
  • 10,000 g high impact resistance
Product Details
RBD-2743
18 Items

Specific References

EAN13
2743
