The Ultrasonic Oxygen Sensor OCS-3F with LCD and Power Supply provides a complete solution for monitoring oxygen concentration and flow rate. This kit combines the reliable OCS-3F sensor with a user-friendly LCD display and a dedicated power supply, eliminating the need for separate component sourcing and configuration. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
The OCS-3F is not a medical device and should not be used for self-diagnosis or treatment.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Complete Monitoring Solution: Includes sensor, LCD display, and power supply for convenient oxygen level and flow rate monitoring.
- Large & Clear LCD Display: Provides real-time readings of oxygen concentration, flow rate, and temperature for easy data visualization.
- High Accuracy & Stability: Delivers reliable readings with ±1.5% accuracy for oxygen concentration and ±0.2 L/min or 5% (whichever is greater) for flow rate.
- Multiple Outputs (Sensor Only): Offers digital (UART), analog (optional), and LED outputs for integration with other systems.
- Long Lifespan: Provides dependable performance for up to 5 years.
- Fast Response Time: Offers a quick response time of 1 second for oxygen level detection.
- Wide Operating Range: Functions effectively in temperatures from 0 to 50°C and humidity levels from 5 to 85% RH (non-condensate water).
- Compact & User-friendly: The small sensor size (120.5mm x 22mm x 22mm) and user-friendly LCD display simplify integration and operation.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- PSA Oxygen Generators: Monitors and regulates oxygen concentration and flow rate in Pressure Swing Adsorption (PSA) oxygen generators.
- High Flow Nasal Cannula (HFNC): Provides real-time oxygen level and flow data for respiratory support applications using High Flow Nasal Cannula.
- Air Quality Monitoring: Can be used in various air quality monitoring applications where oxygen concentration is a critical factor.
- Industrial Gas Measurement: Suitable for industrial applications requiring oxygen concentration and flow rate measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Detection Principle |
Ultrasonic |
| Oxygen Concentration Range |
21% ~ 95.6% |
| Resolution (Oxygen Concentration) |
0.1% |
| Accuracy (Oxygen Concentration) |
±1.5%FS @ (25 ± 2)°C, ±2%FS @ (0 ~ 50)°C |
| Flow Rate Range |
0 ~ 20 L/min |
| Resolution (Flow Rate) |
0.1 L/min |
| Accuracy (Flow Rate) |
±0.2 L/min or 5% reading, whichever is bigger @ (25 ± 2)°C |
| Response Time |
1s |
| Warm-up Time |
Sensor works upon power on; 10s to reach specified accuracy |
| Digital Output (Sensor Only) |
9600bps UART, 5V TTL / 3.3V CMOS compatible |
| Analog Output (Sensor Only) |
0 ~ 2.5V (Optional) |
| LED Output (Sensor Only) |
GREEN: Concentration > 82%, YELLOW: 82% > Concentration > 50%, RED: Concentration ≤ 50% (Adjustable according to customer's requirement) |
| Operating Temperature |
0 ~ 50°C |
| Operating Humidity |
5 ~ 85% RH (Non-condensate water) |
| Maximum Pressure |
150 Kpa |
| Power Supply |
=+12V DC/1A (included)pen_spark |
| Dimensions (Sensor) |
120.5mm x 22mm x 22mm |
| Shipment Weight |
0.115 kg |
| Shipment Dimensions |
15 × 11 × 11 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
Package Includes:

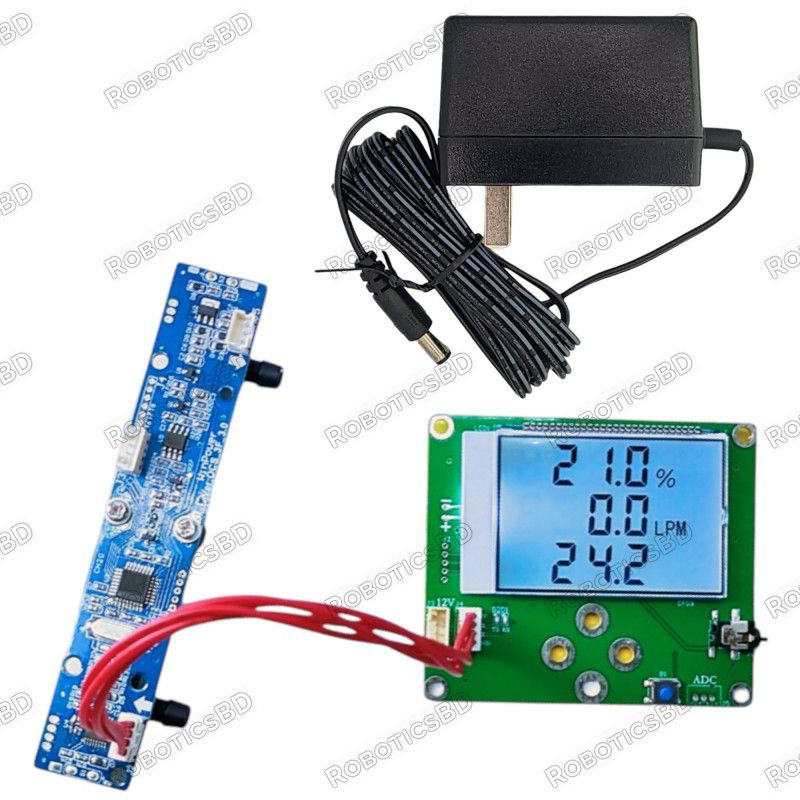

1 x Ultrasonic oxygen sensor OCS-3F with LCD and Power Supply.
