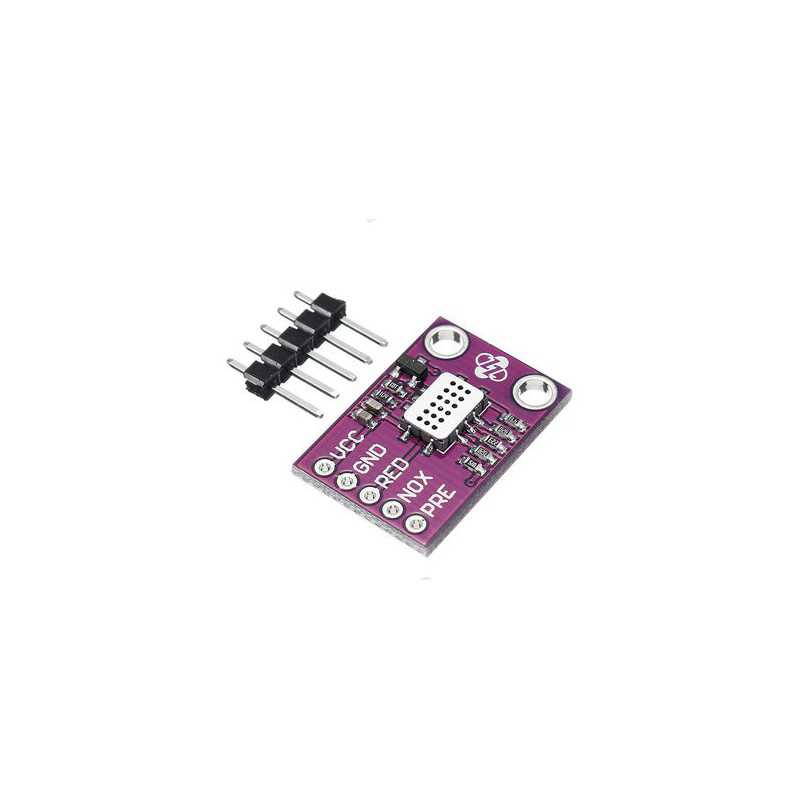

CJMCU-4541 MICS-4514 Carbon Monoxide Nitrogen Oxygen Sensor CO/NO2/H2/NH3/CH4 Robotics Bangladesh
  • CJMCU-4541 MICS-4514 Carbon Monoxide Nitrogen Oxygen Sensor CO/NO2/H2/NH3/CH4 Robotics Bangladesh

CJMCU-4541 MICS-4514 Carbon Monoxide Nitrogen Oxygen Sensor CO/NO2/H2/NH3/CH4

RBD-1377

  • Module Name:CJMCU-4541
  • Sensor: MICS-4514
  • Type: Carbon Monoxide Nitrogen Oxygen Sensor
BDT 3,350.00
BDT 3,350.00 BDT 3,350.00 BDT 3,350.00 BDT 3,350.00
Tax included Tax excluded Tax included Tax excluded
BDT 3,350.00 Tax excluded
BDT 3,350.00 Tax included
BDT 0.00 Tax
BDT 3,350.00 Tax excluded
BDT 0.00 Tax
BDT 3,350.00 Tax included
Quantity
In-Stock
5 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The MiCS-4514 is a compact MOS sensor with two fully independent sensing elements on one package. The MiCS-4514 is a robust MEMS sensor for the detection of pollution from automobile exhausts. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications (Detectable gases):

  1.  Carbon monoxide CO 1 – 1000ppm
  2.  Nitrogen dioxide NO2 0.05 – 10ppm
  3.  Ethanol C2H5OH 10 – 500ppm
  4.  Hydrogen H2 1 – 1000ppm
  5.  Ammonia NH3 1 – 500ppm
  6.  Methane CH4 >1000ppm

Features:

  1. Smallest footprint for compact designs (5 x 7 x 1.55 mm)
  2. Robust MEMS sensor for harsh environments
  3. High-volume manufacturing for low-cost applications
  4. Short lead-times

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Maximum heater power dissipation PH 88 (RED sensor)/50 (OX sensor) mW
Maximum sensitive layer power dissipation Ps 8 mW
Voltage supply Heating current Vsupply 4.9 – 5.1 V
Relative humidity range RH 5 – 95 %RH
Ambient operating temperature Tamb -30 – 85 °C
Storage temperature range Tsto -40 – 120 °C
Storage humidity range RHsto 5 - 95 %RH
Shipment Weight 0.010 kg
Shipment Dimensions 4 × 4 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x CJMCU-4541 MICS-4514 Carbon Monoxide Nitrogen Oxygen Sensor CO/NO2/H2/NH3/CH4
