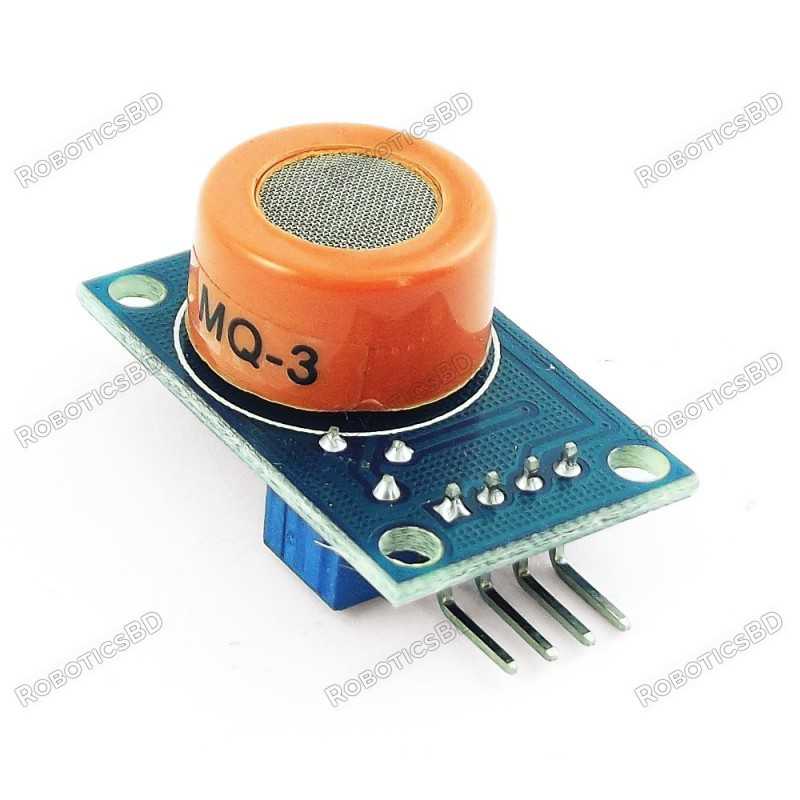

MQ-3 Alcohol Gas Sensor
  • MQ-3 Alcohol Gas Sensor

MQ-3 Alcohol Gas Sensor

RBD-0672

  • Power requirements: 5 VDC @ ~165 mA (heater on) / ~60 mA (heater off).
  • Current Consumption: 150mA. RoboticsBD
  • DO output:  0.1 and 5V.
  • AO output: 0.1- 0.3 V (relative to pollution), the maximum concentration of a voltage of about 4V
  • Detecting Concentration: 0.05-10mg/L Alcohol.
BDT 175.00
BDT 175.00 BDT 175.00 BDT 175.00 BDT 175.00
Tax included Tax excluded Tax included Tax excluded
BDT 175.00 Tax excluded
BDT 175.00 Tax included
BDT 0.00 Tax
BDT 175.00 Tax excluded
BDT 0.00 Tax
BDT 175.00 Tax included
Quantity
In-Stock
12 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This MQ-3 Alcohol Detector Gas Sensor Module is simple to use. MQ-3 Alcohol Detector Module which can sense the presence of Alcohol in the air. The module uses our MQ-3 sensor. It simplifies the interface to the odd pin spacing of the sensor and provides an interface through standard 4 x 0.1″ header pins.

It provides an analog output corresponding to the concentration of the gas in the air and an easy to use digital output. RoboticsBD

The onboard potentiometer can be used to set the maximum gas concentration beyond which the digital output gets triggered. Just power the module with 5V set the threshold and you can start getting the gas concentration of the air around the sensor! An onboard LED signals the presence of any gas. Perfect sensing alcohol concentration on your breath just likes a common breathalyzer.

The digital output can be easily interfaced to microcontrollers and other circuits. The analog output can be hooked up to an ADC of a microcontroller to get a wide range of sensor readings. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. Signal output light indicator.
  2. Analog and level signal output.
  3. TTL output valid signal is low.  (When the output low signal light can be directly connected microcontroller or relay module).
  4. The carbon monoxide detection with better sensitivity.
  5. It has a long service life and reliable stability.
  6. Rapid response recovery features. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating Voltage 5V ±0.1
Current Consumption 150mA
Operation Temperature -10°C ~ +70°C
Concentration 0.05 mg/L ~ 10 mg/L Alcohol
Load resistance 200 kΩ
Length (mm) 36
Width (mm) 20
Height (mm) 16
Weight (gm) 5
Shipment Weight 0.01 kg
Shipment Dimensions 5 × 5 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x MQ-3 Alcohol Gas Sensor.
