Humidity Sensor SYH-2R - no case Robotics Bangladesh
  • Humidity Sensor SYH-2R - no case Robotics Bangladesh

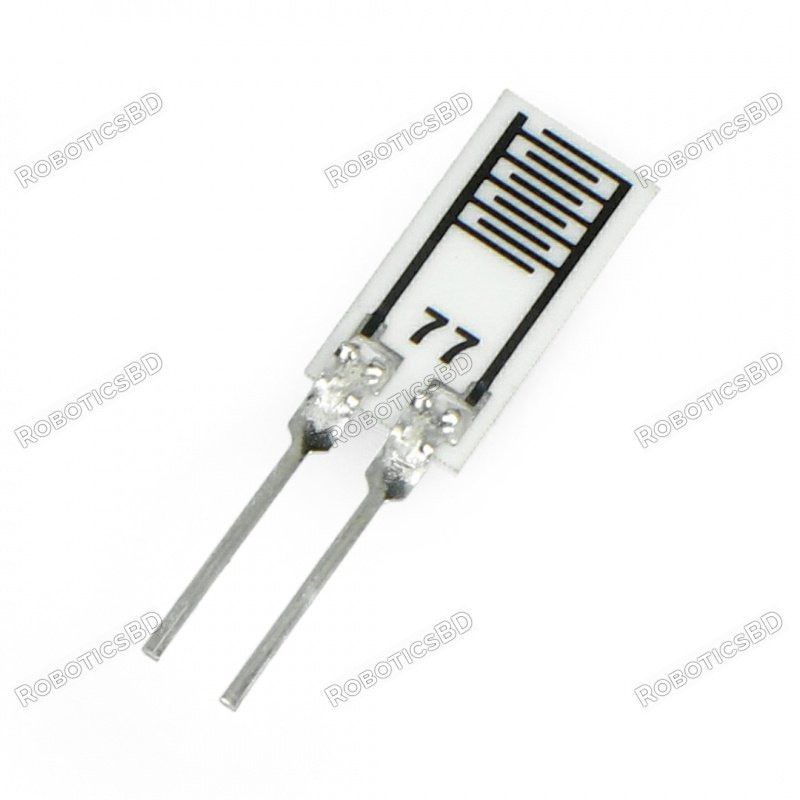

Humidity Sensor SYH-2R - no case

RBD-2841

The Humidity Sensor SYH-2R is an analog air humidity sensor designed to accurately measure humidity levels by changing resistance in response to varying humidity conditions. Operating within a wide range from 10% to 95% relative humidity (RH), this sensor provides reliable data on ambient moisture levels. The sensor module comes without a case, offering flexibility for integration into different applications.

BDT 80.00
BDT 80.00 BDT 80.00 BDT 80.00 BDT 80.00
Tax included Tax excluded Tax included Tax excluded
BDT 80.00 Tax excluded
BDT 80.00 Tax included
BDT 0.00 Tax
BDT 80.00 Tax excluded
BDT 0.00 Tax
BDT 80.00 Tax included
Quantity
19 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Product Description:

The Humidity Sensor SYH-2R is an analog air humidity sensor designed to accurately measure humidity levels by changing resistance in response to varying humidity conditions. Operating within a wide range from 10% to 95% relative humidity (RH), this sensor provides reliable data on ambient moisture levels. The sensor module comes without a case, offering flexibility for integration into different applications.

Specification:

  • Symbol: SYH-2R
  • Power: 0.26 mW
  • Working Voltage: Up to 5 V AC
  • Measuring Range: 10% to 95% RH
  • Operating Temperature: -20°C to 85°C
  • Operating Frequency: 100 Hz to 10 kHz
  • Accuracy: ±3% RH (at 25°C)
  • Module Type: Without case
  • Module Dimensions (without pins): 10 x 5 x 0.65 mm

Connection: The Humidity Sensor SYH-2R can be integrated into systems as a resistor whose resistance varies according to humidity levels. As humidity increases, the resistance decreases, providing a direct indication of the humidity level. The sensor's compact dimensions make it suitable for a wide range of applications where accurate humidity monitoring is required.

Product Details
RBD-2841
19 Items

Specific References

EAN13
2841
Comments (0)
Grade
No customer reviews for the moment.
