Digital Electronic Weighing Sensor (Scale 5 Kg) Loadcell Robotics Bangladesh
  • Digital Electronic Weighing Sensor (Scale 5 Kg) Loadcell Robotics Bangladesh

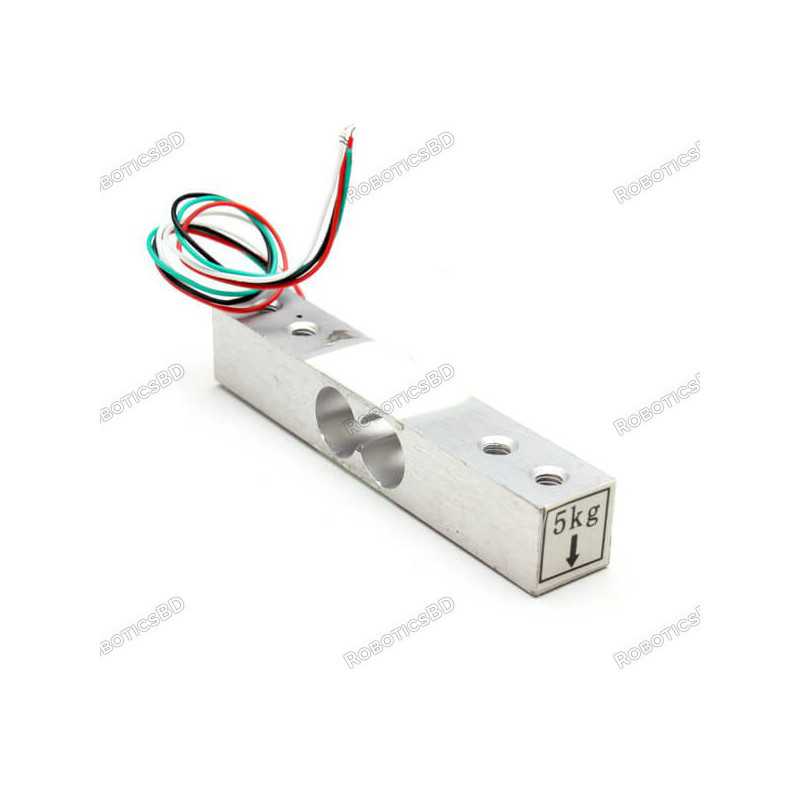

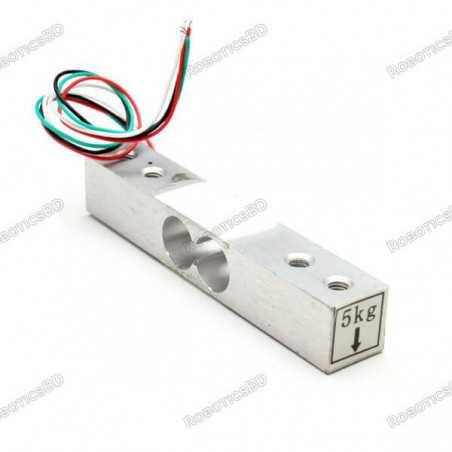

Digital Electronic Weighing Sensor (Scale 5 Kg) Loadcell

RBD-1018

  • Dimensions: 75 x 13 x 13 mm (L x W x H)
  • Range: 5 kg
  • Cable Length: 18 cm
  • Fitting ScrewHole Size:  M3
  • Rated output: 1.0 0.1mV / V
  • Nonlinear: 0.05% F.S
  • Hysteresis: 0.0% F.S
  • Repeatability: 0.05% F.S
BDT 380.00
BDT 380.00 BDT 380.00 BDT 380.00 BDT 380.00
Tax included Tax excluded Tax included Tax excluded
BDT 380.00 Tax excluded
BDT 380.00 Tax included
BDT 0.00 Tax
BDT 380.00 Tax excluded
BDT 0.00 Tax
BDT 380.00 Tax included
Quantity
In-Stock
13 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This straight bar load cell (sometimes called a strain gauge) can translate up to 5 kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar.

With this gauge, you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface. This straight bar load cell is made from an aluminum alloy and is capable of reading a capacity of 1KG of weight  RoboticsBD

It has Four lead wires which can be connected to  HX711 A/D PRESSURE SENSOR  It is easy to use with driving voltage 5-10V and produce the output voltage as per the force changes over it. RoboticsBD

Installation of the Sensor is also the simple task, it needs to fix one end through the screw hole and the other end left floating state, according to the label indicates the direction of the gravitational force exerted particular attention must not directly push the white plastic cover part of the sensor in order to avoid damage. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Connection Diagram with Arduino via HX711:

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model YZC-131A
Material Aluminum
Dimensions in mm (LxWxH) 75x13x13
Weighing Range (Kg) 0 ~ 5
Rated Output 1.0 ± 0.1mV / V
Non Linear Output ± 0.03% F.S
Hysteresis 0.0% F.S
Repeatability 0.05% F.S
Creep (5 minutes) 0.05% F.S
Cable Length (cm) 18
Zero Balance ± 0.1 mV / V
Impedance (Ω) 1066 ± 10% Ω
Output Impedance 1000 ± 10% Ω
Temperature Effect on Output 0.003% F.S / C
Operating Temperature Range (°C) -21 to 40
Weight (gm) 29
Insulation Resistance (MΩ) 2000
Shipment Weight 0.08 kg
Shipment Dimensions 8 × 3 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x Weighing Load Cell Sensor 5kg YZC-131 With Wires.
