The Sharp distance sensors are a popular choice for many projects that require accurate distance measurements. This IR sensor is more economical than sonar rangefinders, yet it provides much better performance than other IR alternatives. Interfacing to most microcontrollers is straightforward: the single analog output can be connected to an analog-to-digital converter for taking distance measurements, or the output can be connected to a comparator for threshold detection. The detection range of this version is approximately 10 cm to 80 cm (4″ to 32″).. RoboticsBD

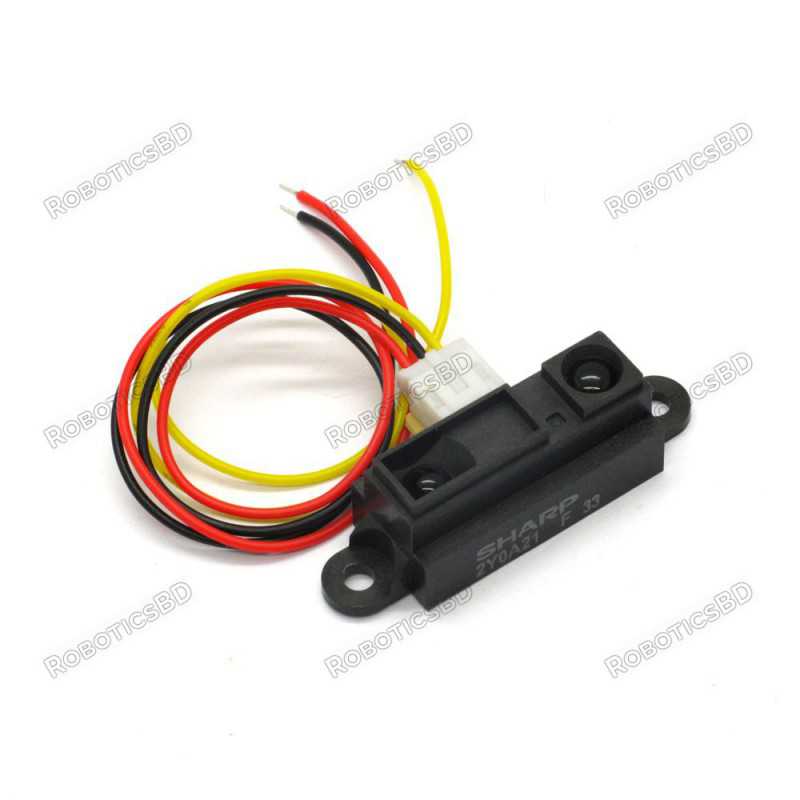

The GP2Y0A21 uses a 3-pin JST PH connector that works with our 3-pin JST PH cables for Sharp distance sensors (not included), as shown in the upper picture on the right. These cables have 3-pin JST connectors on one end and are available with pre-crimped male pins, pre-crimped female pins, and with unterminated wires on the other end. It is also possible to solder three wires to the sensor where the connector pins are mounted (see the lower picture to the right). When looking at the back, the three connections from left to right are power, ground, and the output signal. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Made up of good quality MS.
- Possess good stability and durability.
- Accurate reading
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Model |
GP2Y0A21YK0F (10 to 80 cm) |
| Operating Voltage (VDC) |
4.5 ~ 5.5 |
| Distance measuring range (cm) |
10 ~ 80 cm |
| Screw Holes |
37mm apart, 3 mm diameter. |
| Connecting cable length (cm) |
15 |
| Length (mm) |
44 |
| Width (mm) |
18 |
| Height (mm) |
13 |
| Weight (gm) |
4 |
| UPC |
602716546003 |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
5 × 5 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Arduino-distance-sensor-library
Package Includes :
1 x Sharp Distance Measuring Sensor unit 10 to 80 cm.
1 x Connecting cable.
