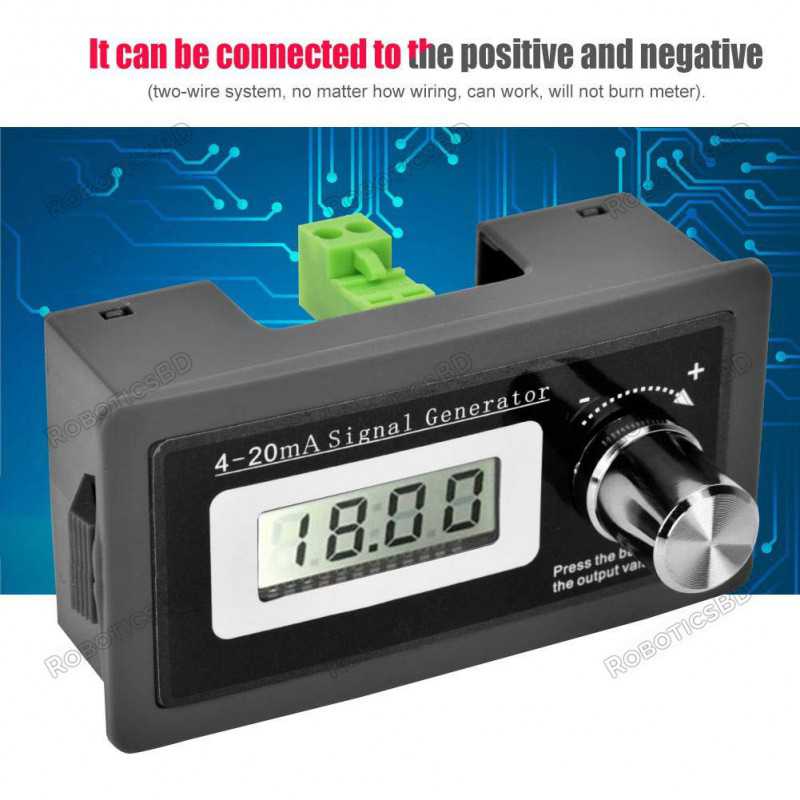

Analog 0-12V 4-20mA Signal Generator for PLC and Panel Debugging & Device Testing is designed to simulate 0-12V voltage signal and 0-24mA current signal for PLC and panel Debugging, Device Testing, Frequency Converter, Flow Valve, etc. Very easy to use, it can be connected with micro USB 5V power supply. What’s more, it can display 4 different types of digits, 0-12V voltage, 0-24mA current, 0-100 percent, and 0-50HZ. It plays an important role in your electronics work. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Voltage Output: 0-12V, precision is 0.01V, rotate the encoder knob to adjust the output voltage, can be calibrated.
Current Output: 0-22mA, precision is 0.01mA, rotate the encoder knob to adjust output current, can be calibrated. RoboticsBD
Multiple Display: just push the small button to switch the display mode between voltage and current, you can also follow the instructions to switch 0-100 percent or 0-50HZ display.
Parameter Settings:（Rotate one grid clockwise is "+" Rotate one grid counter-clockwise is "-", Press the knob. is "Confirm"）
Press and hold the knob for 2 seconds to enter the parameter setting, Display parameter number "F001", Then press "Confirm ", to Set the value of parameter "F001", =0 is coarse tuning; =1 Fine tuning; Then press "Confirm" to save its value.
When the parameter number "FXXX" is displayed, "+" "-" Rotation modification parameter number; Enter the password first "+ - - +", To enter the F002 parameter; Enter the password first "+ - + -", To enter the F100 parameter; Enter the password first "- + - +", To enter the F200 parameter.
Package Includes:
1 x 4-20mA Signal Generator Current Loop Simulator Tester.
Onboard precision microcurrent transformer.
Onboard sampling resistor.
The module can measure AC currents less than 5A, the corresponding analog output 5A/5mA.
Rated input current: 5A
Rated output current: 5mA
Change: 1000: 1
The linear range: 0 ~ 10A (100 ohms)
Linearity: 0.2%
Operating current: 20mA
Operating voltage: DC 4.5 ~ 30V
Minimum resolution(V): 0.1V
Minimum resolution(A): 0.01A
Display color: Red and Blue (two-color display)
Measure accuracy: 1%
Dual Led 0.28 ” Display for DC0-100V 100A Voltage and Current Test Digital Instrument, Digital Meter Panel Amplifier Red Blue 100A
Working voltage: 3V-5V (MAN SV)
Static output voltage: VCCi2
Working current: 135m2A (MAX)
Small in size, with easy mounting capability.
Monolithic Hall IC for high reliability
Operating Voltage: 3.3V-5V
Features wide range voltage comparator LM393
Adjustable sensitivity
Signal output indicator with the retaining bolt hole, convenient installation
Output form digital switch output (0 and 1 high and low level)
The output effective signal is low level
When there is sound, outputs low level and the signal light
